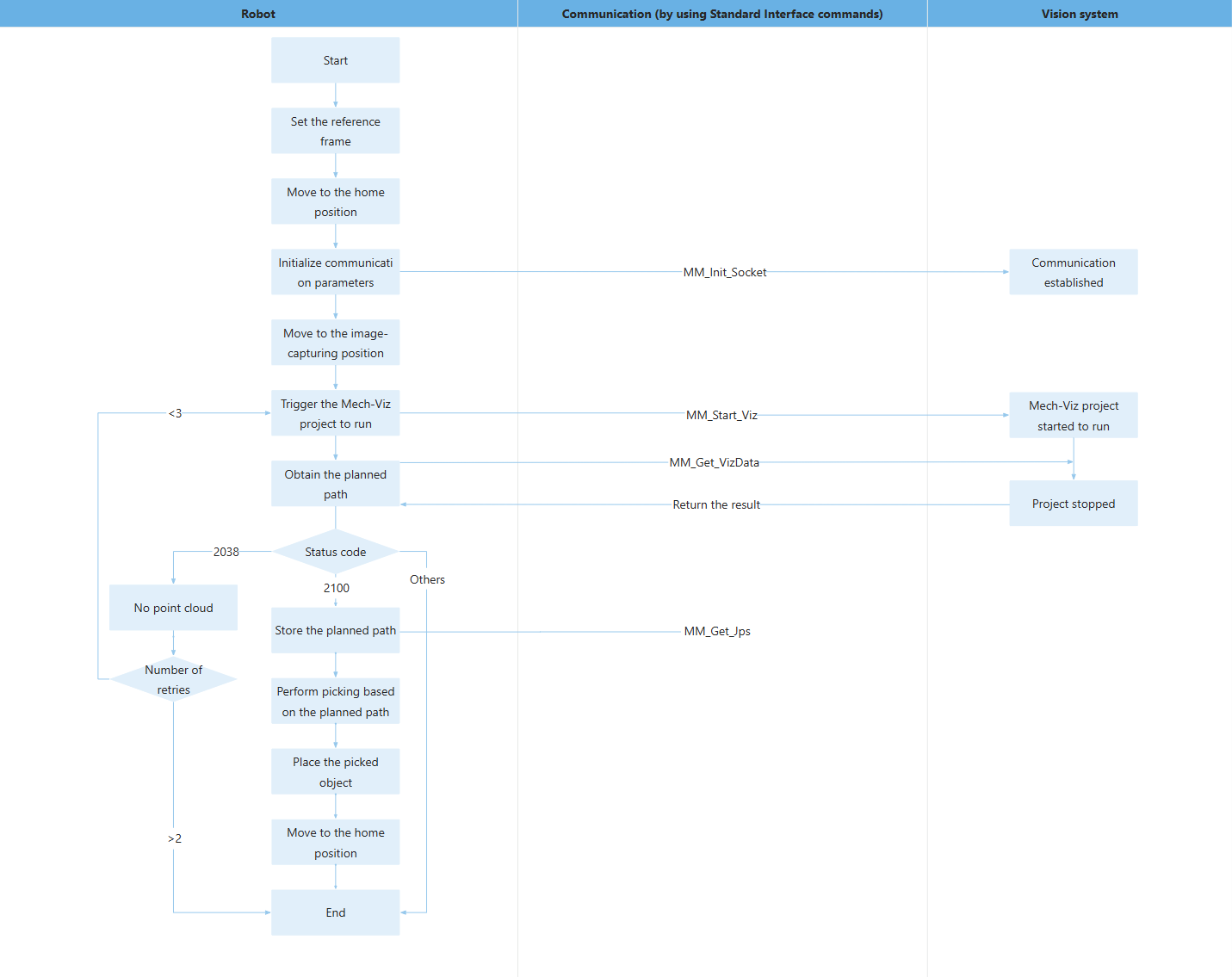

Exemple de programme 6 : MM_S6_Viz_ErrorHandle

DEF  MM_S6_Viz_ErrorHandle ( )
;---------------------------------------------------
; FUNCTION: trigger Mech-Viz project and get
; planned path, handle errors according to status
; codes (if no point cloud in ROI, retry several
; times before exit loop)
; Mech-Mind, 2023-12-25
;---------------------------------------------------
   ;set current tool no. to 1
   BAS(#TOOL,1)
   ;set current base no. to 0
   BAS(#BASE,0)
   ;initialize variables
   retry_cnt=0
   ;move to robot home position
PTP HOME Vel=100 % DEFAULT
   ;initialize communication parameters (initialization is required only once)
   MM_Init_Socket("XML_Kuka_MMIND",873,871,60)
   ;move to image-capturing position
LIN camera_capture Vel=1 m/s CPDAT1 Tool[1] Base[0]
RECAP:
   ;trigger Mech-Viz project
   MM_Start_Viz(2,init_jps)
   ;get planned path, 1st argument (1) means getting pose in JPs
   MM_Get_VizData(1,pos_num,vis_pos_num,status)
   ;check whether planned path has been got from Mech-Viz successfully
   IF status<> 2100 THEN
        IF status == 2038 THEN
            ;no point cloud in ROI, add handling logic here
            ;self-adding then check retry counter
            retry_cnt=retry_cnt+1
            IF retry_cnt<3 THEN
                ;jump back to vision retry label if the number of retry times is less than 3
                GOTO RECAP
            ELSE
                ;reset counter and exit loop if the number of retry times has reached 3
                retry_cnt=0
                GOTO END_LOOP
            ENDIF
        ELSE
            ;add other error handling logic here
            halt
            GOTO END_LOOP
        ENDIF
   ENDIF
   ;save waypoints of the planned path to local variables one by one
   MM_Get_Jps(1,Xpick_point1,label[1],toolid[1])
   MM_Get_Jps(2,Xpick_point2,label[2],toolid[2])
   MM_Get_Jps(3,Xpick_point3,label[3],toolid[3])
   ;follow the planned path to pick
   ;move to approach waypoint of picking
PTP pick_point1 Vel=50 % PDAT1 Tool[1] Base[0]
   ;move to picking waypoint
PTP pick_point2 Vel=10 % PDAT2 Tool[1] Base[0]
   ;add object grasping logic here, such as "$OUT[1]=TRUE"
   halt
   ;move to departure waypoint of picking
PTP pick_point3 Vel=50 % PDAT3 Tool[1] Base[0]
   ;move to intermediate waypoint of placing
PTP drop_waypoint CONT Vel=100 % PDAT2 Tool[1] Base[0]
   ;move to approach waypoint of placing
LIN drop_app Vel=1 m/s CPDAT3 Tool[1] Base[0]
   ;move to placing waypoint
LIN drop Vel=0.3 m/s CPDAT4 Tool[1] Base[0]
   ;add object releasing logic here, such as "$OUT[1]=FALSE"
   halt
   ;move to departure waypoint of placing
LIN drop_app Vel=1 m/s CPDAT3 Tool[1] Base[0]
   ;move back to robot home position
PTP HOME Vel=100 % DEFAULT

END_LOOP:
    halt
END
