View Parameters
The Parameters window is used to view and adjust the parameters of measurement items in the current project.

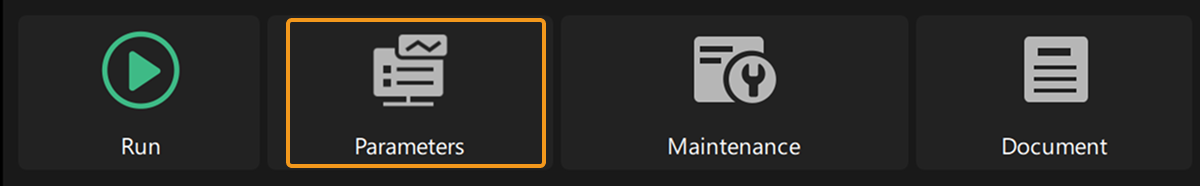

Click the parameter icon
in the operation area to open the Parameters window.
Configuration Parameters
Click the Add button in the upper-right corner of the window to add measurement items from the associated project, and then view and set their upper limits, lower limits, and compensation values.
|

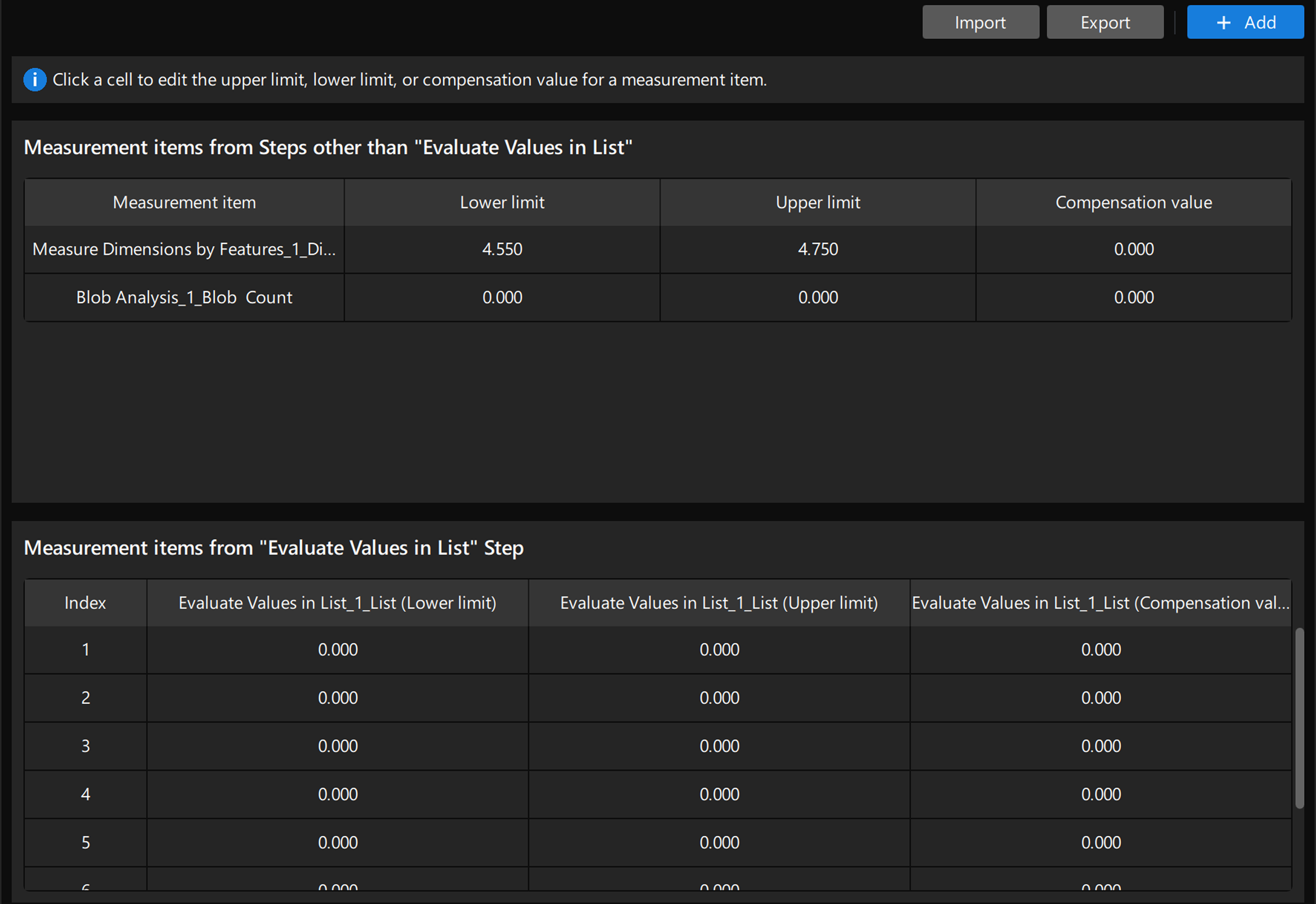

Depending on the type of measurement item, the Parameters window displays different content and configurable options:
-
For measurement items from Steps other than Evaluate Values in List, you can add measurement items in the current project and view or directly adjust their upper limits, lower limits, and compensation values.
-
For measurement items from the Evaluate Values in List Step, the Parameters window displays the parameters by index. You can set the upper limits, lower limits, and compensation values separately for each index. For more information,see Evaluate Values in List.
After the configuration is complete, click the Save button to save the changes.
