Understand Project File Structure

You are currently viewing the documentation for the latest version (2.2.2). To access a different version, click the "Switch version" button located in the upper-right corner of the page.

■ If you are not sure which version of the product you are currently using, please feel free to contact Mech-Mind Technical Support.

A Mech-MSR project mainly consists of the following directories and files:

  • Project configuration directory (config in the figure): Stores project configurations.

  • Project-level calibration data directory (calibration in the figure): Stores calibration files for structured-light 3D cameras.

  • Project run data directory (data in the figure): Stores images and related parameter data generated while the project is running.

  • Main project file (.msr in the figure).

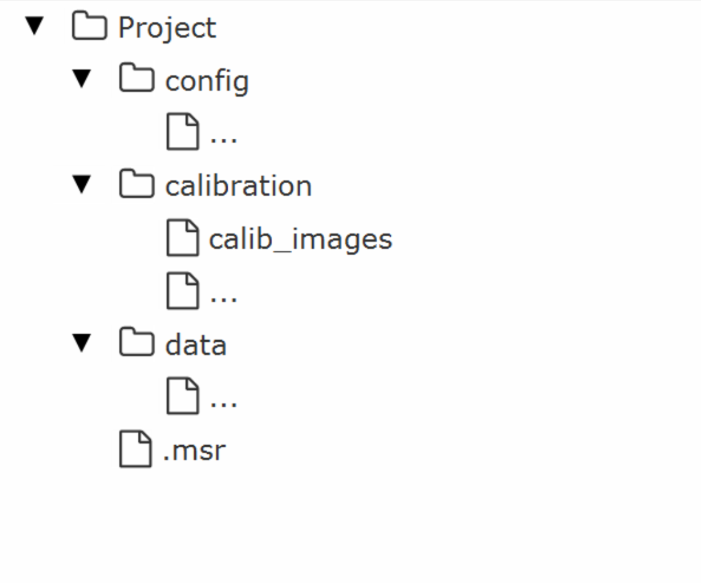

Project file structure
Do not manually modify files in the project directory. Otherwise, the files may become corrupted and the project may not function properly.
