Mech-MSR Release Notes

You are currently viewing the documentation for the latest version (2.2.0). To access a different version, click the "Switch version" button located in the upper-right corner of the page.

■ If you are not sure which version of the product you are currently using, please feel free to contact Mech-Mind Technical Support.

Welcome to the 3D measurement and inspection software Mech-MSR! This chapter introduces the new features, improvements, and issue fixes in each version of Mech-MSR.

Mech-MSR 2.2.0 Release Notes

New Features

Full Support for 2D Inspection and Measurement

  • Supports capturing images with third-party industrial 2D cameras and controlling lighting with the Light Source Step. See the 2D Camera Step for details.

  • Supports distortion calibration for 2D cameras to correct geometric distortions caused during lens imaging. See Distortion Calibration (2D Camera) for details.

  • Adds a large number of Steps for 2D scenarios, covering image preprocessing, locating, recognition, measurement, and post-processing, which can be used to build complete 2D inspection and measurement workflows. See the relevant Steps under the 2D category in the Step Library for details.

Expanded 3D Measurement and Inspection Capabilities

Added Multiple General-Purpose Steps

Added multiple general-purpose Steps that can be used in both 2D and 3D scenarios:

New Custom Communication Mode

Supports establishing communication connections through standard or custom industrial communication protocols and exchanging data according to agreed data formats and parsing rules. Suitable for scenarios with special communication requirements or custom protocols.

  • Supports configuring multiple custom communication services, including TCP Server, TCP Client, Siemens S7 Client, Modbus TCP Slave, and Mitsubishi MC Client.

  • Supports unifying communication parsing, project triggering, measurement execution, and result return into one configurable workflow, without developing separate scripts or Adapter for each project.

  • Supports building communication and measurement projects. Data processing and result return can be completed through Steps such as Receive Data, Parse Data, Logical Judgment, Trigger Project, Assemble Data, and Send Data.

  • Supports managing custom communication services and configuring communication trigger rules: For TCP Server and TCP Client services, receiving data can trigger execution. For PLC services, the corresponding project can be triggered based on register variable values. See Communication Configuration and Custom Communication Mode for details.

More Commands for Standard Communication Mode

Supports more commands for the standard communication mode, including recipe, solution, SetNumVar, GetNumVar, SetStrVar, and GetStrVar, to meet a wider range of communication needs. See Standard Interface Commands for details.

Supports Configuring Parameter Recipes for Project

Supports configuring sets of parameters that need to be adjusted when a project runs under different conditions, avoiding repetitive project setup, improving project adaptability, and increasing production efficiency. See Parameter Recipe for details.

Supports Solution Switching

Supports the solution switching management feature, which can automatically switch solutions based on the received solution ID or communication string. This feature works in both standard communication mode and custom communication mode. See Configure Solution Switching Rules for details.

Supports Single Laser Profiler Calibration

Supports calibration workflows for a single laser profiler to meet different on-site requirements, including tilt calibration and stitching calibration. See Single Laser Profiler Calibration for details.

  • Tilt calibration: Supports correcting sensor head mounting tilt automatically or manually to reduce data distortion and measurement errors caused by tilt. See Tilt Calibration (Auto) and Tilt Calibration (Manual) for details.

  • Stitching calibration: Supports segmented data acquisition on a calibration target to achieve accurate stitching of multiple data segments. Suitable for calibration scenarios involving large or elongated objects. See Stitching Calibration for details.

Supports N-Point Calibration on Gantry-Based Machine

Supports N-point calibration for collaborative applications involving a three-axis gantry robot and a 3D laser profiler. It is used to establish an accurate mapping between the surface data coordinate system and the machine coordinate system so that the measured coordinates of surface feature points can be accurately transformed into the machine coordinate system. This feature is suitable for applications that require trajectory guidance, such as high-precision dispensing guidance and new energy manufacturing. See N-Point Calibration (Gantry) for details.

Supports Hand-Eye Calibration for Structured-Light 3D Cameras

Supports hand-eye calibration for structured-light 3D cameras, covering Eye to Hand (ETH), Eye in Hand (EIH), Eye to Eye (ETE), and gantry robot scenarios, and provides guidance for result analysis and troubleshooting. See Hand-Eye Calibration (Structured-Light 3D Camera) for details.

Improvements

Improved Feedback for Communication Results

To improve the readability and user experience of communication results, Mech-MSR 2.2.0 optimizes the judgment result encoding method and status code definitions:

  • The judgment result encoding is adjusted to OK = 1 and NG = 0.

    It is recommended to use the new judgment result encoding method. If you still need to use the old encoding (OK = 0, NG = 1) for special reasons, select Settings  Options from the menu bar, and then select the Use legacy judgment result encoding option on the Advanced tab. This setting will take effect once the software has been restarted.
  • The normal status code is adjusted from 0 to 1, making it easier to distinguish a successful status from other default values in practical applications.

Enhanced Deep Learning Model Package Inference and Configuration Capabilities

  • The Deep Learning Model Package Inference Step now supports 2D image-based deep learning scenarios, including image classification, object detection, defect segmentation, instance segmentation, fast positioning, text detection, text recognition, and unsupervised segmentation. See Deep Learning Model Package Inference for details.

  • In 3D scenarios, the Deep Learning Model Package Inference Step can now use single model packages for fast positioning and multi-model packages for inference to meet more complex inspection workflow requirements.

  • Inference configuration has been optimized. The Inference Configuration Tool can now be used to flexibly adjust the post-processing parameters of the Deep Learning Model Package Inference Step, validate multi-model package configurations, and support parameter group management and visualized parameter tuning.

  • The deep learning model package management tool has been upgraded to support unified management of single model packages and multi-model packages. You can view model package types, projects that use them, and model package status, and you can also release or delete model packages for more flexible resource management. See Deep Learning Model Package Management Tool for details.

More Flexible Data Visualization and Result Viewing

  • The Data Viewer has been upgraded to support switching between 2D Data View and 3D Data View when viewing visualized data. See Data Viewer for details.

  • A data details icon is added to the Output Results panel, allowing you to quickly view more result information such as data type, data count, and data dimensions. See Result Display Panel for details.

Enhanced Global Variable Management

  • The Global Variable Management tool has been upgraded. In addition to viewing saved global variables, it now supports centralized creation and management of global variables in the current solution, including adding, deleting, clearing, drag-and-drop sorting, and resetting variable IDs.

  • Supports unified configuration of data type, initial value, current value, bound parameters, and communication switch for global variables, and supports assigning global variable values to Step parameters.

  • The workflow of the Global Variable Step has been improved. You can open the global variable management tool directly from the Step. For queue-mode global variables, the Retrieve All parameter can also be used to retrieve all data at once.

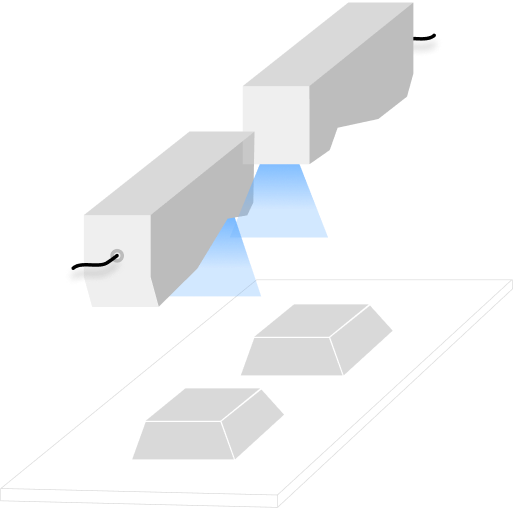

Optimized Multiple Laser Profiler Calibration

In single-group calibration for multiple laser profilers, the primary laser profiler can use existing tilt calibration results to further correct errors caused by sensor head mounting tilt and improve calibration accuracy. See Calibrate a Single Group for details.

Enhanced Visualization in Production Interface

  • Added the View Parameters feature. You can view and adjust measurement item parameters in the current project in the production interface, and parameter import and export are also supported.

  • The display window configuration capability in the production interface has been upgraded. Background images now support not only surface data, but also profiles and 2D images. See Configure Display Windows for details.

  • The overlay capabilities of display windows are further enhanced. On the background image of a 2D image and surface data, poses can now be overlaid. In addition, the maximum number of overlay items such as features, images, and text is increased, allowing inspection and measurement results to be displayed more flexibly.

Other Improvements

  • The 3D Laser Profiler Step has been upgraded so that results of tilt calibration, S/Z scan stitching calibration, and N-point calibration can be applied directly during acquisition, enabling more flexible adaptation to scenarios such as segmented scanning and machine coordinate mapping.

  • The Extract Surface Section Step has been upgraded with a new Horizontal centerline sectioning mode, which allows a profile to be extracted directly based on the horizontal centerline of the surface data bounding box.

  • The Fit Circle to Surface Edge Step has been upgraded with an outlier handling option. When least squares circle fitting is used, outliers can be handled automatically, or the outlier fraction can be set manually, improving usability in complex edge scenarios.

  • The height measurement logic of the Measure Surface Track Step has been optimized. Height can now be calculated based on an average point, fitted line, reference plane, or with no reference, making it more suitable for complex scenarios such as tracks on sloped surfaces.

  • The Measure Cylinder Step has been upgraded to simplify fitting parameter configuration, and it now provides cylinder geometry output for direct use of fitting results in subsequent workflows.

  • The Detect and Measure Hole on Surface Step has been upgraded to support more flexible reference plane configuration: In addition to fitting a reference plane from the reference region within the Step, you can also directly input an external reference plane. It also adds circle geometry output for subsequent processing and display.

  • The Extract Alignment Parameter Group Step has been upgraded to support both 2D and 3D alignment modes, allowing alignment parameter groups for different scenarios to be extracted as needed.

  • The Save Surface Data Step in version 2.1.1 has been upgraded to the Save 3D Data Step. In addition to surface data, it also supports saving point clouds and profiles, and lets you choose the appropriate format for different data types.

  • The Data Storage feature has been upgraded with new options to create subfolders by parameter recipe or by OK/NG result, making it easier to save data by production condition.

  • The Statistical Report feature has been upgraded. In addition to querying by date range, it also supports querying by the most recent number of project runs, making it easier to quickly view statistics from recent production results.
