Select Proper Hand-Eye Calibration Process

You are currently viewing the documentation for the latest version (2.2.0). To access a different version, click the "Switch version" button located in the upper-right corner of the page.

■ If you are not sure which version of the product you are currently using, please feel free to contact Mech-Mind Technical Support.

Hand-eye calibration refers to the process of establishing the correspondence between the camera frame and the robot frame. Through hand-eye calibration, the poses of objects or features obtained by the camera can be accurately transformed into poses in the robot frame. The accuracy of hand-eye calibration is one of the important factors affecting the accuracy of robot operations.

After the Mech-Mind 3D Measurement System is constructed, you can start the hand-eye calibration. In addition, you need to perform hand-eye calibration again in any of the following conditions:

  • The camera moves in reference to the robot base (in the eye-to-hand setup) or flange (in the eye-in-hand setup).

  • The camera is replaced.

  • The robot is replaced.

  • The robot’s working environment or layout changes.

  • The requirement for picking accuracy increases.

  • A collision or movement causes changes in the position of the robot or camera.

  • Issues with inaccurate picking arise and the extrinsic parameter errors increase.

  • The camera intrinsic parameters have been corrected.

  • The application runs for a long time (to ensure system stability, it is necessary to periodically perform hand-eye calibration again).

Select the Proper Calibration Process

The calibration procedures are affected by robot communication modes, camera mounting modes, calibration modes, and calibration data collection methods. Mech-MSR provides standardized calibration procedures for various scenarios, helping you calibrate the camera’s intrinsic and extrinsic parameters quickly and accurately.

For explanations of the robot communication modes, camera mounting modes, calibration modes, and calibration data collection methods, refer to the section Calibration-related Concepts.

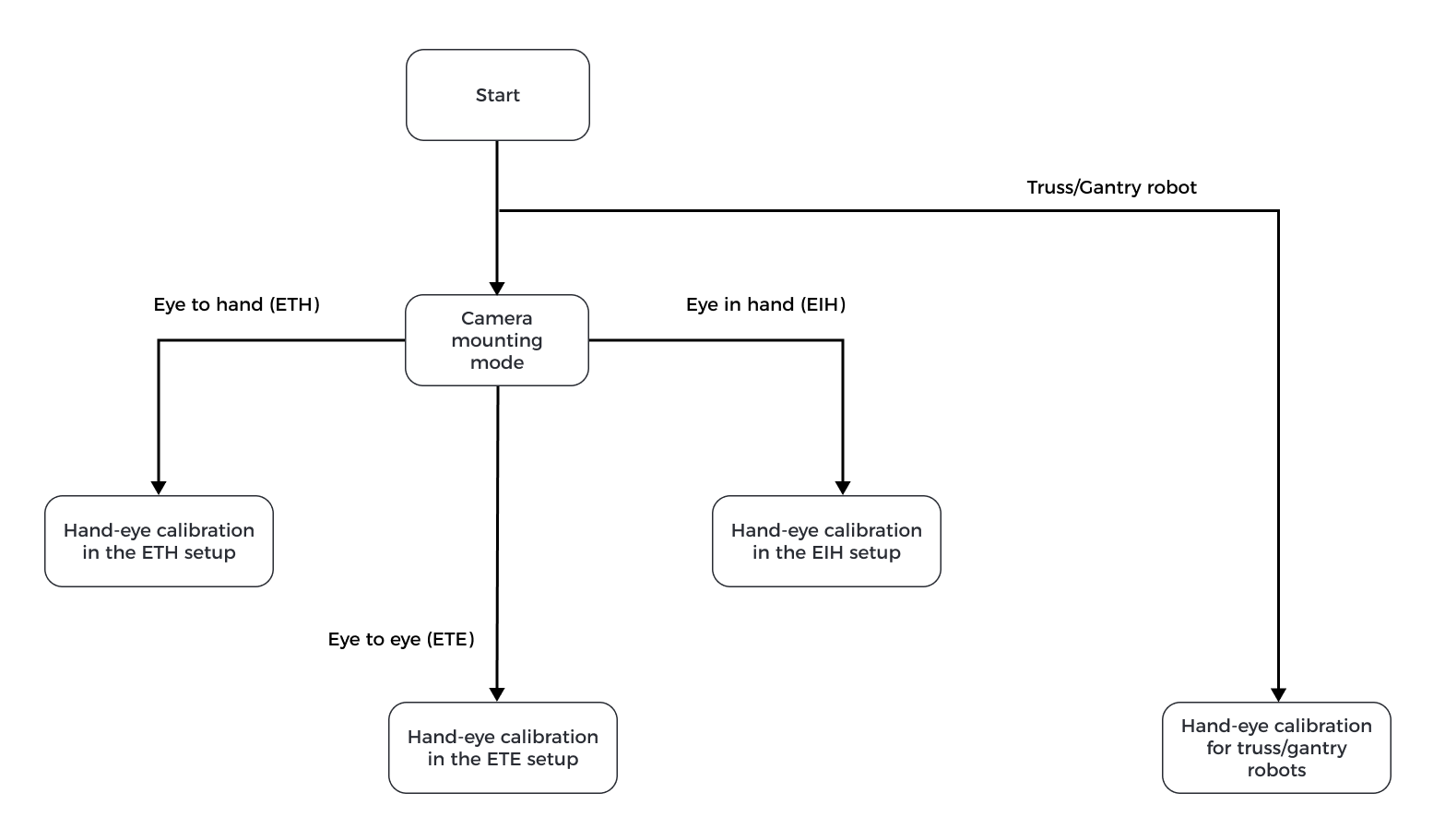

select calib process

Please select the calibration processes according to the camera mounting modes.

If a gantry robot is used in a project, follow the process of Hand-Eye Calibration for Gantry Robots.

Hand-Eye Calibration in the ETH Setup

If the camera mounting mode is ETH, further select a specific calibration process in this section.

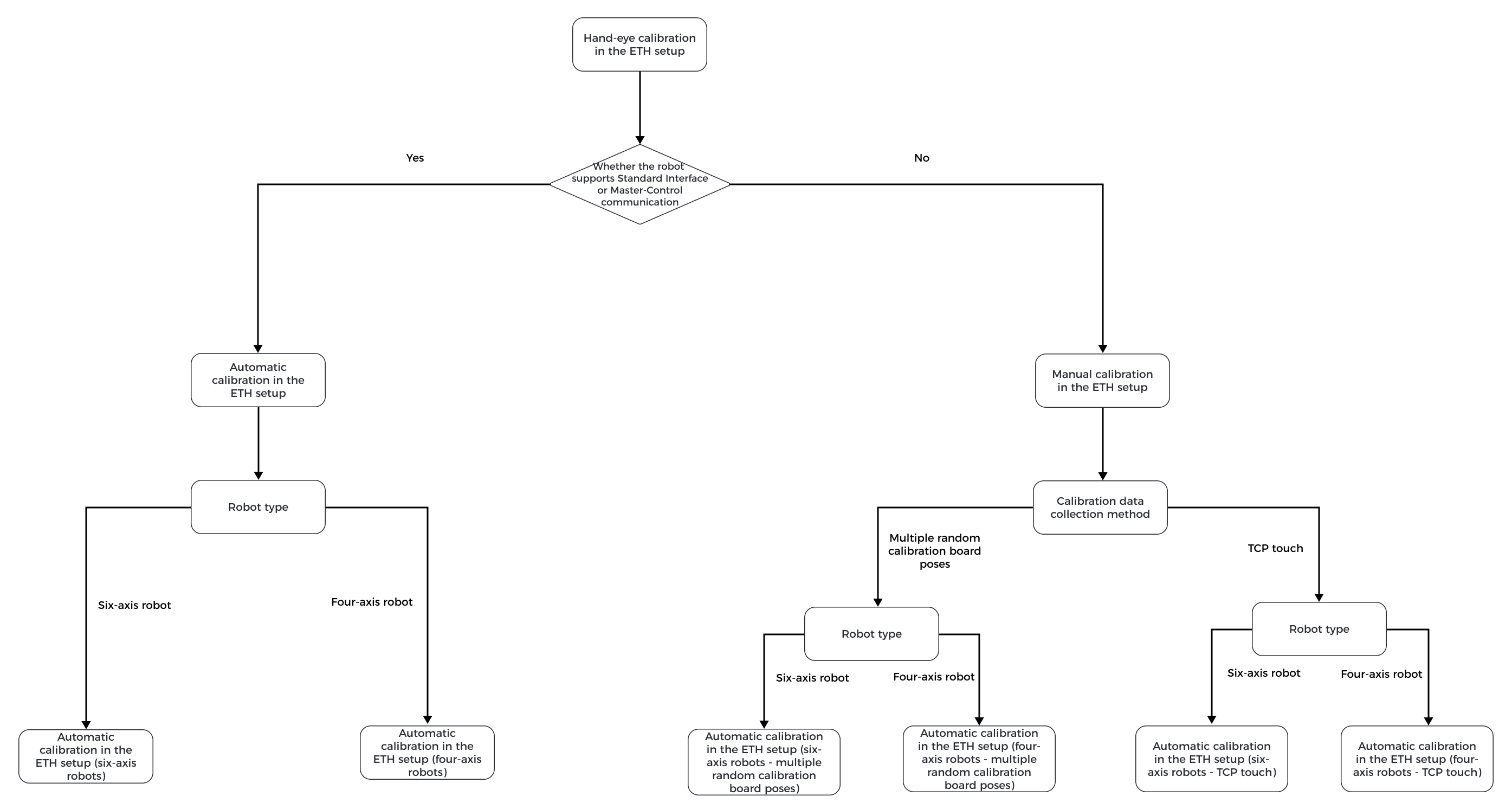

select eth calib process

Hand-Eye Calibration in the EIH Setup

If the camera mounting mode is EIH, further select a specific calibration process in this section.

select eih calib process
