Convert Normals Point Cloud to Color Point Cloud

You are currently viewing the documentation for the latest version (2.2.0). To access a different version, click the "Switch version" button located in the upper-right corner of the page.

■ If you are not sure which version of the product you are currently using, please feel free to contact Mech-Mind Technical Support.

Function

This Step converts a colorless point cloud with normals to a colored point cloud using a color image.

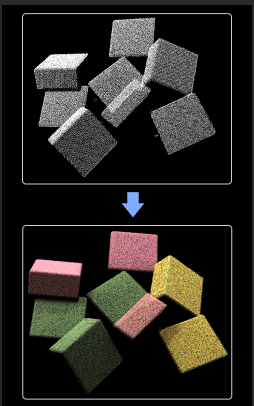

function description

Usage Scenario

This Step is usually used to view the status of colored point clouds in a simulated scene, or for other usage scenarios that require visualization of colored point clouds.

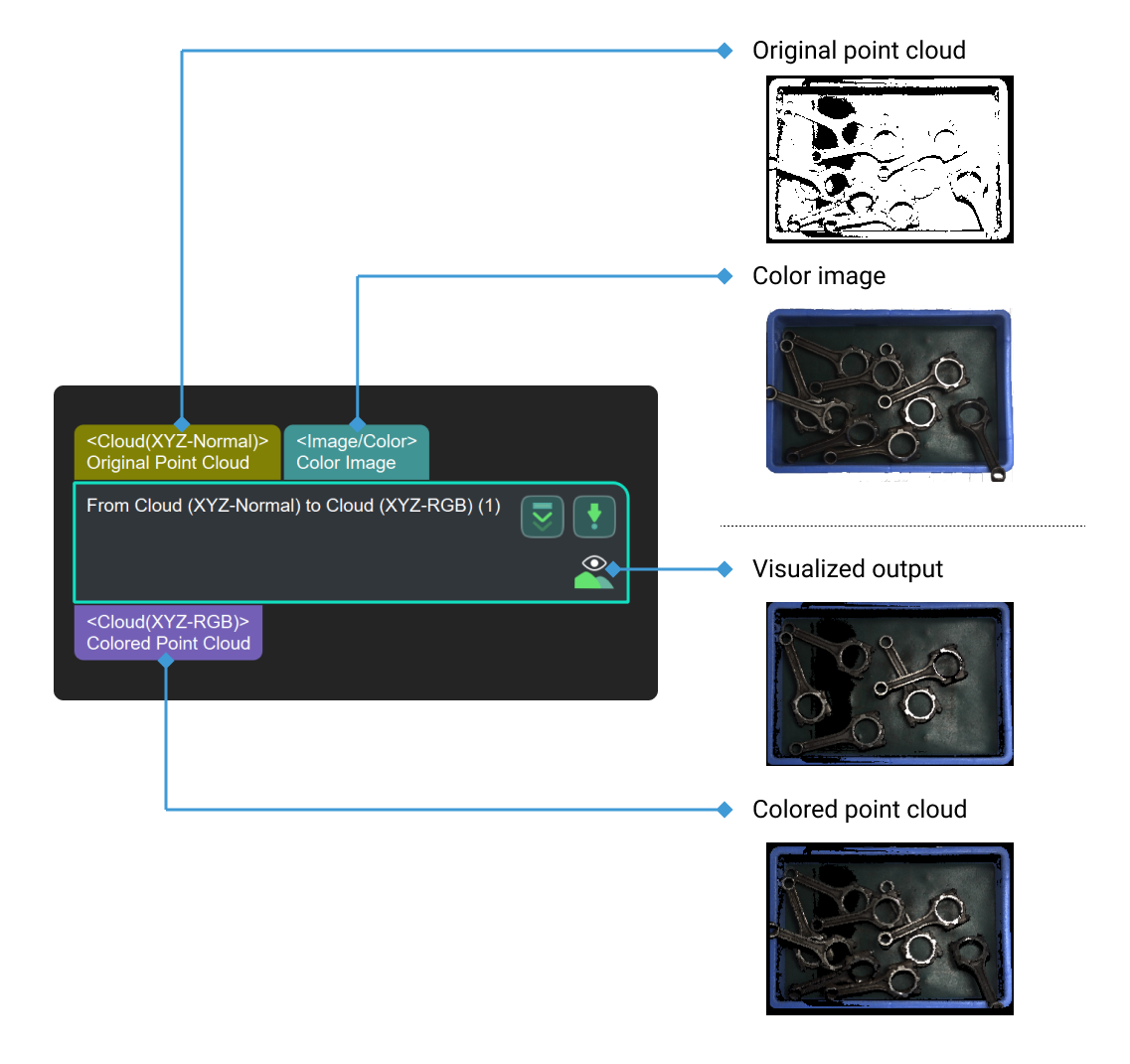

Input and Output

Input

Input port Data type Description

Original Point Cloud

PointCloud/XYZNormal

The colorless point cloud input to this port will be converted to a colored point cloud.

Color Image

Image/Color

2D color image used to colorize the point cloud.

Output

Output port Data type Description

Colored Point Cloud

PointCloud/XYZRGB

Colored point cloud.
