Function

This Step performs a value judgment on each input list item based on a set threshold.

dichotomize values by threshold dichotomize values by threshold

Usage Scenario

If a value in the list is less than or equal to the corresponding threshold, the corresponding item in the output list will be True; otherwise, it will be False. This Step is usually used with Filter Data by Boolean Value.

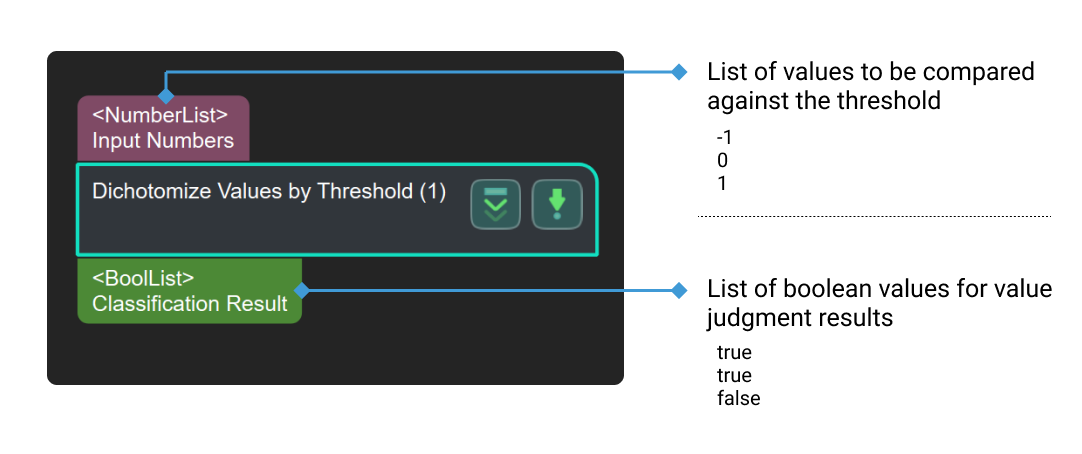

Input and Output

Input

Input port	Data type	Description
Input Numbers	Number[]	The list of values input to this port will be compared against the threshold.

Input port

Data type

Description

Input Numbers

Number[]

The list of values input to this port will be compared against the threshold.

Output

Output port	Data type	Description
Validation Result	Bool[]	A list of Boolean values for value judgment results.

Output port

Data type

Description

Validation Result

Bool[]

A list of Boolean values for value judgment results.

Parameter Description

Parameter	Description
Thresholds of Input Data for Each Port	Parameter description: The thresholds of the input data. The thresholds are connected by semicolon(";"). Default value: 0

Parameter

Description

Thresholds of Input Data for Each Port

Parameter description: The thresholds of the input data. The thresholds are connected by semicolon(";").
