Save Results to File

You are currently viewing the documentation for the latest version (2.2.0). To access a different version, click the "Switch version" button located in the upper-right corner of the page.

■ If you are not sure which version of the product you are currently using, please feel free to contact Mech-Mind Technical Support.

Function

This Step saves project data to local files.

Usage Scenario

This Step saves data of all types, but if you need to save a 2D image, it is recommended to use the Save Images Step instead.

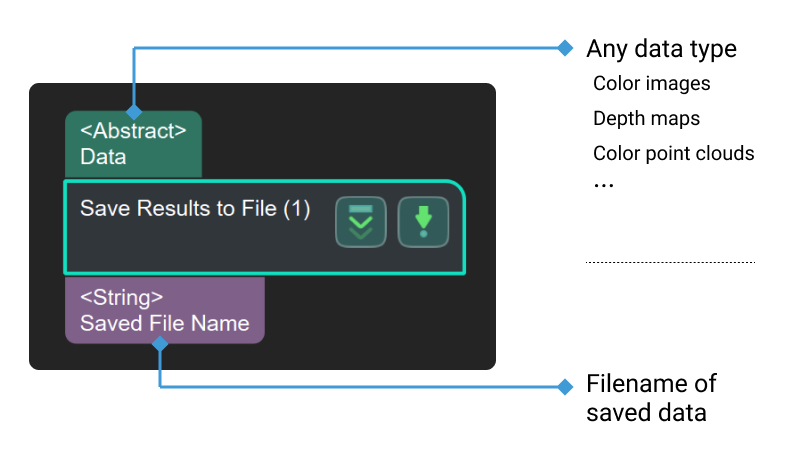

Input and Output

Input

Input port Data type Description

Data

Abstract[]n

This port is used to input data of any type.

Output

Output port Data type Description

Saved File Name

String

Output the saved file name.

Parameter Description

Parameter Description

Save Path

Parameter description: This parameter is used to set the target path for saving files.

File Name Prefix

Parameter description: This parameter is used to set the prefix of the saved file name.

Output Path Type

Parameter description: This parameter is used to set the path format of the output content.

Value list:

  • Absolute

  • Filename

  • BaseName

Default value: Absolute

Asynchronous Saving

Parameter description: This parameter is used to determine whether to execute the save operation asynchronously. Once this option is selected, the Save Step will be executed in the background, and the execution status of the project will no longer wait for the Step to finish.
Default value: Selected
