Function

According to the set operation type, compare the two input value lists and output the Boolean value (True/False) list of the comparison result.

Usage Scenario

This Step is a general value comparison Step. No fixed usage scenarios.

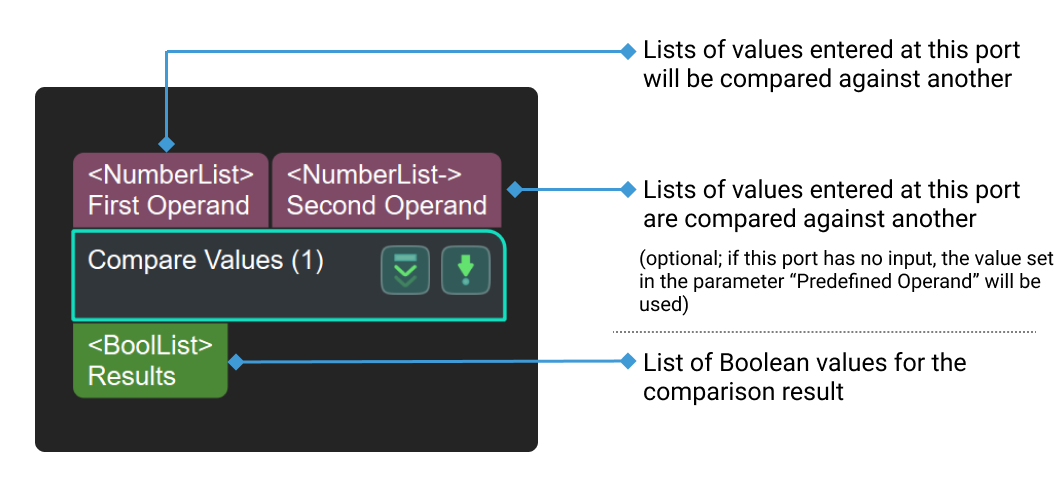

Input and Output

Input

Input port Data type Description

First Operand

Number[]

Value list input to this port will be compared.

Second operand

Number[]-

Value list input to this port will be compared (optional). If no data is input to this port, the “Specified operand” set in the Step parameters will be used.

Output

Output port Data type Description

Result

Bool[]

A list of Boolean values for comparison results.

Parameter Description

Parameter Description

Operation Type

Description: This parameter is used to select the method for comparing the values.
Value list: GreaterThan, GreaterOrEqualTo, LessThan, LessOrEqualTo, EqualTo, NotEqualTo
Default value: GreaterThan

Predefined Operand

Description: When there is no input from the second input port of the Step, you can specify a value through this parameter and compare it with the value input from the first input port.
Default value: 0.0000
