Trim Input List

You are currently viewing the documentation for the latest version (2.2.0). To access a different version, click the "Switch version" button located in the upper-right corner of the page.

■ If you are not sure which version of the product you are currently using, please feel free to contact Mech-Mind Technical Support.

Function

This Step keeps the first N items in a data list and output. Items after the Nth item will be discarded.

trim input list trim input list

Usage Scenario

This Step extracts the first N items in a list, and the N value can be set in the parameters by project requirements.

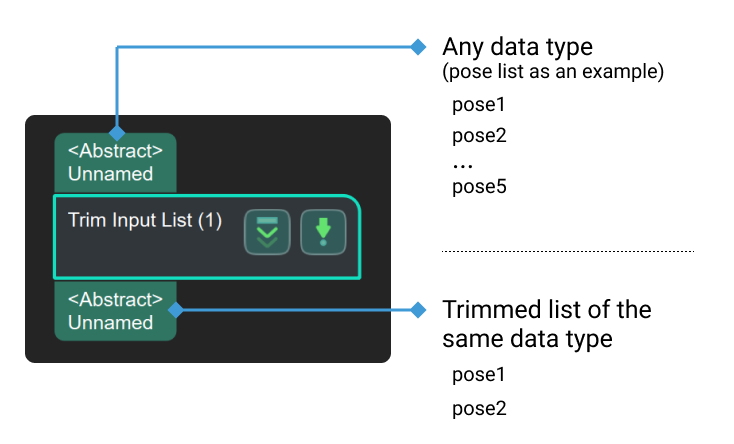

Input and Output

Input

Input port Data type Description

Unnamed

Abstract[]n

Data list of any data type can be input to this port.

Output

Output port Data type Description

Unnamed

Abstract[]n

List of output data with the same data type as the input.

Parameter Description

Ports Settings

Parameter Description

Port Number (1–15)

Description: Set the number of input and output ports in this Step.
Default value: 1
Value range: 1–15

Operation Layer

Description: Specify the layer of elements on which operations should be performed in the list. When the value of this parameter is 0, operations will be performed on every element in the list; otherwise, operations will be performed only on elements of the specified layer.
Default value: 0
Parameter Description

Output Size

Description: Set the number of outputs in this Step.
Default value: 1
Tuning recommendation: Please set the value according to the actual situation.
