Function

This Step is used to count the number of elements in a specified level of input data.

Usage Scenario

A general element count Step, which can be used with the Step Repeat Data and Concatenate Copies to make the data lengths of the input ports of the subsequent Step equal.

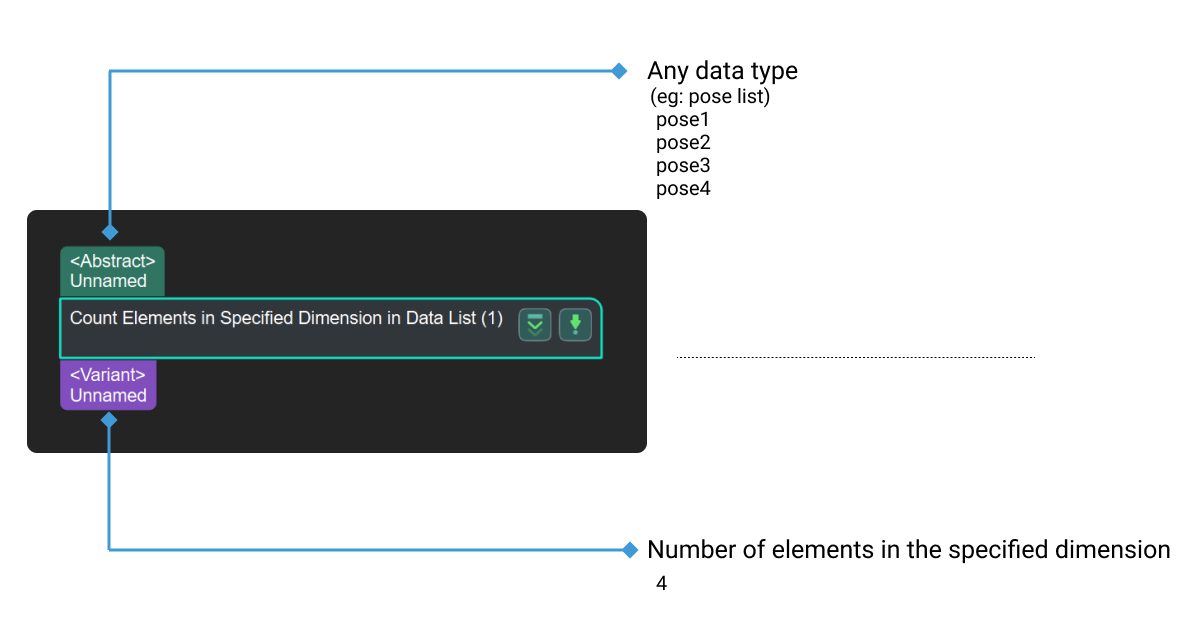

Input and Output

Input

Input port Data type Description

Unnamed

Abstract

Any data type.

Output

Output port Data type Description

Unnamed

Number

Number of elements in the specified dimension.

Parameter Description

Parameter Description

Nth Dimension of Processed Variables in Vector

Description: This parameter specifies the nesting hierarchy of lengths to be counted (starting from 0 and ending at 14).

  • When the input is a one-dimensional list, setting the dimension to 0 indicates counting the elements of the list.

  • When the input is a multidimensional nesting structure, the dimension value represents the corresponding nesting hierarchy. The dimension value should be smaller than the actual number of nesting hierarchy levels of the data.

Default value: 0
