Rotate Poses by Quaternion Vectors in Object Frames

You are currently viewing the documentation for the latest version (2.2.0). To access a different version, click the "Switch version" button located in the upper-right corner of the page.

■ If you are not sure which version of the product you are currently using, please feel free to contact Mech-Mind Technical Support.

Function

This Step rotates the poses using the rotation vectors.

Usage Scenario

This Step is a general pose rotation Step. This Step has no fixed usage scenarios.

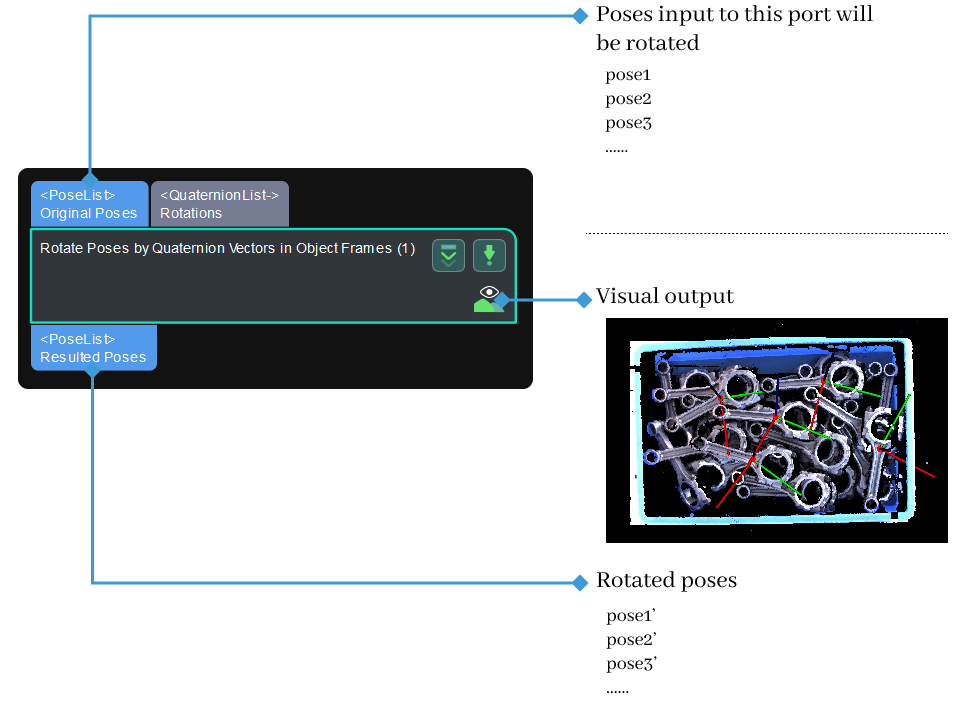

Input and Output

Input

Input port Data type Description

Original Poses

Pose[]

Poses input to this port will be rotated.

Rotations

Quaternion[]

Rotation vectors in quaternions.

Output

Output port Data type Description

Resulted Poses

Pose[]

Poses transformed by rotation.

Parameter Description

Parameter Description

Predefined Transformation

Parameter description: This parameter is used to set the specific values of the quaternion and apply a rotational transformation to the input poses.
Parameter format: The quaternion is represented in the form of "qw, qx, qy, qz".
Default value: 1,0,0,0 (indicating no rotation).
Instruction: Adjust each component value of the quaternion according to actual requirements to achieve the desired rotational transformation.
