Target Object Editor (Trajectory Target Objects)
Feature Overview
Target object editor is a standardized target object management module provided by Mech-Vision. It supports wizard-based workflows to quickly complete target object configuration for different application scenarios. It currently provides three target object types: picking, trajectory, and bin. These workflows help users efficiently configure and manage target objects in scenarios such as object picking, trajectory planning, and bin recognition. When creating a new target object, adjusting target object parameters, or switching between target object configurations, users need to operate in target object editor. Its main features are as follows:
| No. | Main feature | Description |
|---|---|---|
1 |
Clear and complete target object configuration workflows |
Target object editor provides multiple wizard-based configuration workflows. You can choose an appropriate workflow through the guidance information and complete target object configuration step by step. |
2 |
Real-time preview of target object configuration results |
Target object editor provides a visualization area where you can preview configuration results in real time, or directly perform certain configurations in that area, such as adjusting the object center point. |
3 |
More centralized target-object-related settings |
Target object editor centralizes multiple target object settings, such as point cloud model editing, trajectory setup, and symmetry settings. You can complete these tasks in one place. |
|
Target objects configured using software version 2.2.0 and later cannot be used in versions earlier than 2.2.0. |

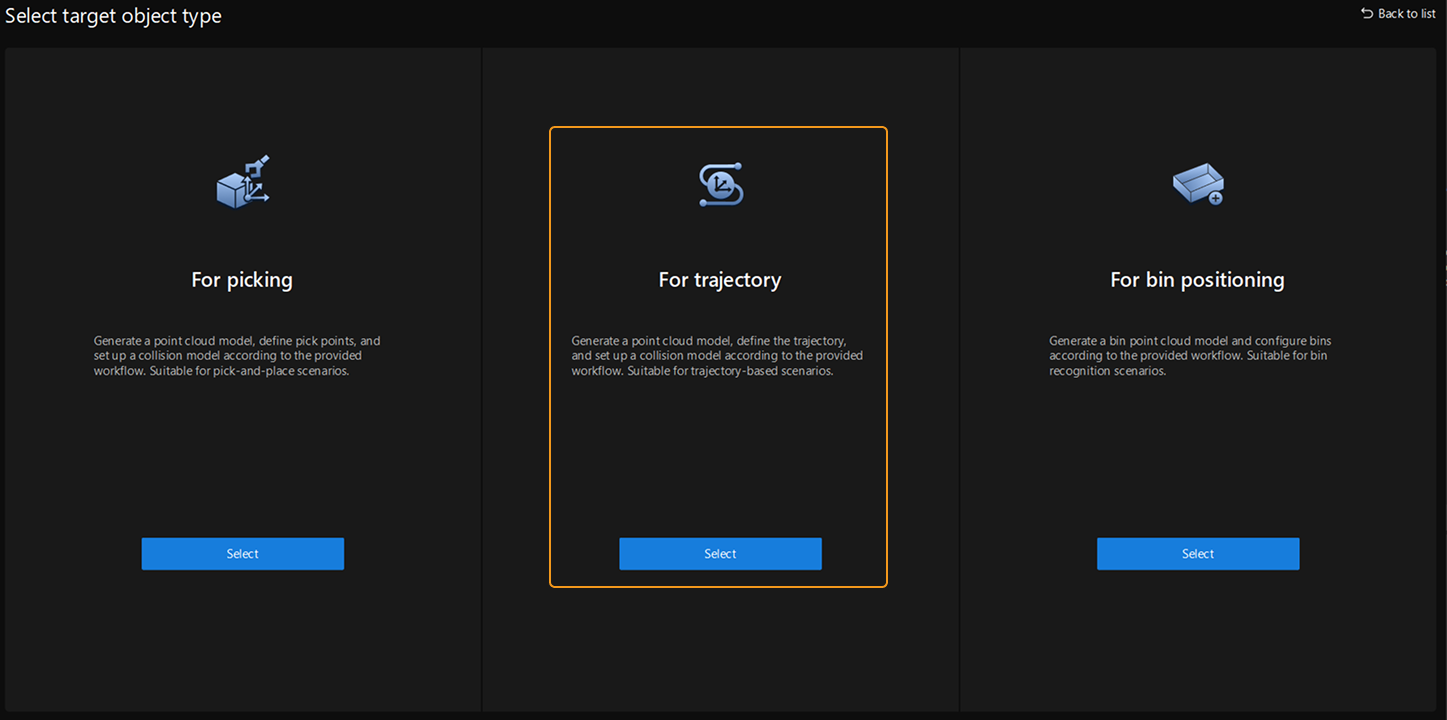

This topic introduces the trajectory target object workflow. Click Target Object Editor in the toolbar, select Trajectory target objects on the home page, and then select a target object configuration workflow according to your needs.
Reading Guide
Read the following topic to learn how to choose a trajectory target object configuration workflow.
Read the following topic to learn how to configure trajectory target objects in target object editor.
Read the following topic to learn additional operations for trajectory target objects.
Read the following topic to learn other reference information about trajectory target objects.
