Detect Vertex

You are currently viewing the documentation for a pre-release version (2.2.0). To access documentation for other versions, click the "Switch Version" button located in the upper-right corner of the page.

■ If you're unsure about the version of the product you are using, please contact Mech-Mind Technical Support for assistance.

Function

This Step is used to detect and measure vertices in the input image.

Before using this Step, enable the step_measure2d option under Help About Plugins in the menu bar. Only then can the operation be performed.

Usage Scenario

This Step is usually used to find the vertices of objects in measurement scenarios.

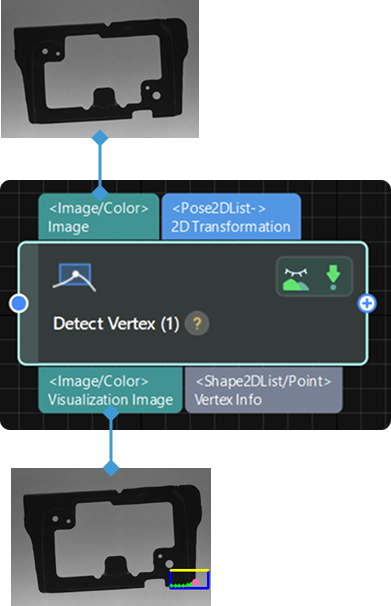

Input and Output

Parameter Description

Parameter	Description
ROI	Description: This parameter is used to specify the region of interest (ROI), which limits the detection and measurement range of a vertex. Instruction: The procedure for using this Step is as follows. Open Measurement Canvas (2D) View: Navigate to View Display View in the menu bar, and select the Measurement Canvas (2D) option. Then, switch to the Measurement Canvas (2D) pane within the right Project Configuration Pane. Select the current Step: Click to select the current Step in the Graphical Programming Workspace. Select the region to be detected: In the Measurement Canvas (2D) pane on the right, the selection box is displayed by default in the upper-left corner of the image. It is recommended to zoom the image to an appropriate scale first. Hover the mouse cursor over the selection box. When it changes to a hand icon, press and hold the left mouse button to drag and resize the box. Confirm the ROI parameters: Once the selection is complete, the values of the selected region (Center X, Center Y, Width, Height, and Angle) will be displayed in the ROI parameters.
Position and Orientation Correction	Description: This parameter is used to adjust the position and orientation of the ROI according to the input 2D transformation. Default setting: Unselected Instruction: If it is selected, the ROl set in the earlier execution will be converted to the position and orientation that fits the object in the image input in the current execution according to the input 2D transformation.
Number of Edge Detection Frames	Parameter description: This parameter is used to set the number of edge detection frames generated within the set ROI. Object edge points used for fitting will be generated within each edge detection frame. The larger the value, the denser the edge point sampling and the higher the fitting accuracy; however, this also increases the computational load. If the value is too small, edge details may be lost. Default value: 10 Instruction: Set the parameter according to the actual requirement.
Grayscale Change Lower Threshold	Description: This Step is used to set the lower threshold of the grayscale change of the point in the edge detection frames. Default value: 20 Instruction: Points within edge detection frames are considered object edge points when their grayscale gradient changes exceed the set lower threshold; when the gradient changes fall below the threshold, they are ignored.
Edge Detection Frame Half Width	Description: This parameter is used to set the half width of the edge detection frame. Default value: 1 Instruction: Increase the value when the edge is unclear; decrease it appropriately when the edge is clear.
Sigma of Gaussian Filter	Description: This parameter is used to filter the image vertically within the edge detection frames. Default value: 1.0 Tuning recommendation: It is recommended to use the default value.
Edge Polarity Type	Description: This parameter is used to specify which type of grayscale change will be considered as object edge points. The grayscale change is defined as the grayscale change vertically from top to bottom in an edge detection frame. Value list: White To Black, Black To White, Both White to Black: The grayscale changes from white to black in the frames will be considered points on object edges. Black to White: The grayscale changes from black to white in the frames will be considered points on object edges. Both: The grayscale changes both from black to white and from white to black in the frames will be considered points on object edges. Default value: Both
Edge Selection	Description: This parameter is used to select edge points detected within the edge detection frame for fitting the complete edge. Value list: First, Second, Last, All First: The first point from top to bottom in the frame will be selected for fitting. Second: The second point from top to bottom in the frame will be selected for fitting. Last: The last point from top to bottom in the frame will be selected for fitting. All: All the points in the frame will be selected for fitting. Default value: First

Parameter

Description

ROI

Description: This parameter is used to specify the region of interest (ROI), which limits the detection and measurement range of a vertex.

Instruction: The procedure for using this Step is as follows.

Open Measurement Canvas (2D) View: Navigate to View Display View in the menu bar, and select the Measurement Canvas (2D) option. Then, switch to the Measurement Canvas (2D) pane within the right Project Configuration Pane.
Select the current Step: Click to select the current Step in the Graphical Programming Workspace.
Select the region to be detected: In the Measurement Canvas (2D) pane on the right, the selection box is displayed by default in the upper-left corner of the image. It is recommended to zoom the image to an appropriate scale first. Hover the mouse cursor over the selection box. When it changes to a hand icon, press and hold the left mouse button to drag and resize the box.
Confirm the ROI parameters: Once the selection is complete, the values of the selected region (Center X, Center Y, Width, Height, and Angle) will be displayed in the ROI parameters.

Position and Orientation Correction

Description: This parameter is used to adjust the position and orientation of the ROI according to the input 2D transformation.
Default setting: Unselected
Instruction: If it is selected, the ROl set in the earlier execution will be converted to the position and orientation that fits the object in the image input in the current execution according to the input 2D transformation.

Number of Edge Detection Frames

Parameter description: This parameter is used to set the number of edge detection frames generated within the set ROI. Object edge points used for fitting will be generated within each edge detection frame. The larger the value, the denser the edge point sampling and the higher the fitting accuracy; however, this also increases the computational load. If the value is too small, edge details may be lost.
Default value: 10
Instruction: Set the parameter according to the actual requirement.

Grayscale Change Lower Threshold

Description: This Step is used to set the lower threshold of the grayscale change of the point in the edge detection frames.
Default value: 20
Instruction: Points within edge detection frames are considered object edge points when their grayscale gradient changes exceed the set lower threshold; when the gradient changes fall below the threshold, they are ignored.

Edge Detection Frame Half Width

Description: This parameter is used to set the half width of the edge detection frame.
Default value: 1
Instruction: Increase the value when the edge is unclear; decrease it appropriately when the edge is clear.

Sigma of Gaussian Filter

Description: This parameter is used to filter the image vertically within the edge detection frames.
Default value: 1.0
Tuning recommendation: It is recommended to use the default value.

Edge Polarity Type

Description: This parameter is used to specify which type of grayscale change will be considered as object edge points. The grayscale change is defined as the grayscale change vertically from top to bottom in an edge detection frame.

Value list: White To Black, Black To White, Both

White to Black: The grayscale changes from white to black in the frames will be considered points on object edges.
Black to White: The grayscale changes from black to white in the frames will be considered points on object edges.
Both: The grayscale changes both from black to white and from white to black in the frames will be considered points on object edges.

Default value: Both

Edge Selection

Description: This parameter is used to select edge points detected within the edge detection frame for fitting the complete edge.

Value list: First, Second, Last, All

First: The first point from top to bottom in the frame will be selected for fitting.
Second: The second point from top to bottom in the frame will be selected for fitting.
Last: The last point from top to bottom in the frame will be selected for fitting.
All: All the points in the frame will be selected for fitting.

Default value: First

Visualization Settings

Parameter	Description
Draw Edge Points	Description: This parameter is used to determine whether to display the object edge points used for fitting on the image. Object edge points are detected through grayscale changes in the edge detection frames which are generated and arranged in parallel along the lateral direction within the manually selected ROI. Default setting: Selected Instruction: When enabled, edge points are displayed in green. Display can be toggled as needed.
Draw ROI	Description: This parameter is used to determine whether to display the boundary of the manually selected ROI on the image. Default setting: Selected Instruction: When enabled, the ROI is outlined in blue. Display can be toggled as needed.
Draw Vertex	Description: This parameter is used to determine whether to display the detected vertex in the ROI on the image. Default setting: Selected Instruction: When enabled, the vertex is displayed in pink. Display can be toggled as needed.
Draw Baseline	Description: This parameter is used to determine whether to display the baseline of the ROI on the image, which is the top side of the ROI. Default setting: Selected Instruction: When enabled, the baseline is displayed in yellow. Display can be toggled as needed.

Parameter

Description

Draw Edge Points

Description: This parameter is used to determine whether to display the object edge points used for fitting on the image. Object edge points are detected through grayscale changes in the edge detection frames which are generated and arranged in parallel along the lateral direction within the manually selected ROI.
Default setting: Selected
Instruction: When enabled, edge points are displayed in green. Display can be toggled as needed.

Draw ROI

Description: This parameter is used to determine whether to display the boundary of the manually selected ROI on the image.
Default setting: Selected
Instruction: When enabled, the ROI is outlined in blue. Display can be toggled as needed.

Draw Vertex

Description: This parameter is used to determine whether to display the detected vertex in the ROI on the image.
Default setting: Selected
Instruction: When enabled, the vertex is displayed in pink. Display can be toggled as needed.

Draw Baseline

Description: This parameter is used to determine whether to display the baseline of the ROI on the image, which is the top side of the ROI.
Default setting: Selected
Instruction: When enabled, the baseline is displayed in yellow. Display can be toggled as needed.
