Master-Control Communication Setup

You are currently viewing the documentation for the latest version (2.2.0). To access a different version, click the "Switch version" button located in the upper-right corner of the page.

■ If you are not sure which version of the product you are currently using, please feel free to contact Mech-Mind Technical Support.

This section describes how to complete the master-control communication configuration between the Mech-Mind vision system and the AUBO (ARCS) robot.

It is recommended to reduce the robot’s acceleration and adjust an appropriate cornering radius in Mech-Viz; otherwise, significant vibration may occur during robot motion.

Preparation

Check Controller and Software Versions

The models and versions listed below are tested and can be used. For other models and versions, you may refer to this guide for operation. If any issues occur, please contact Mech-Mind Technical Support.

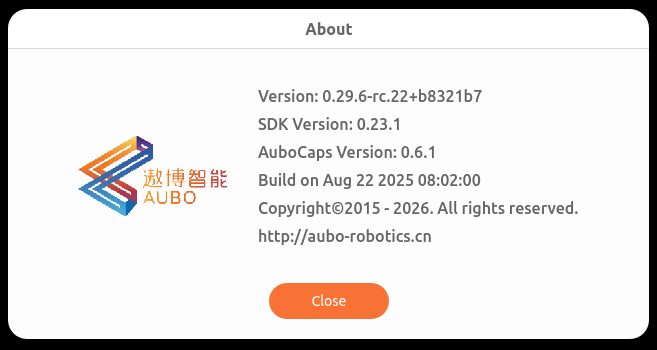

aubo arcs0

Set up the Network Connection

Connect the Hardware

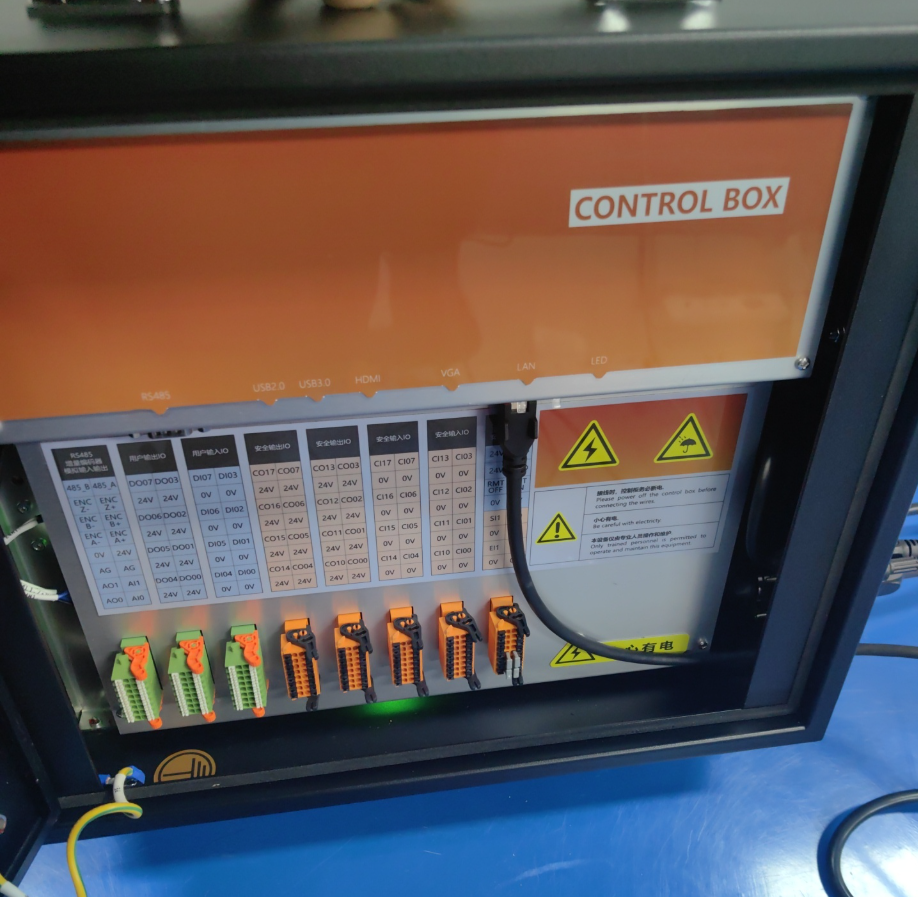

Use the Ethernet cable to connect the network ports of the IPC and the robot controller.

aubo arcs1

Set the IP Address

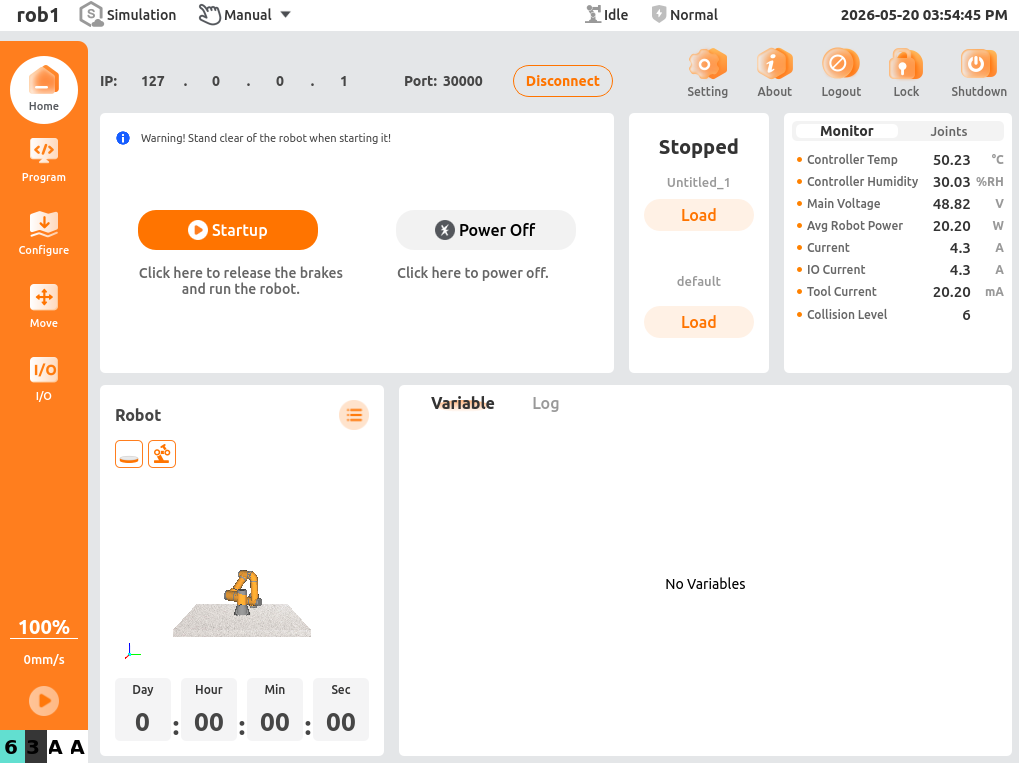

  1. On the teach pendant, tap Settings.

    aubo arcs2

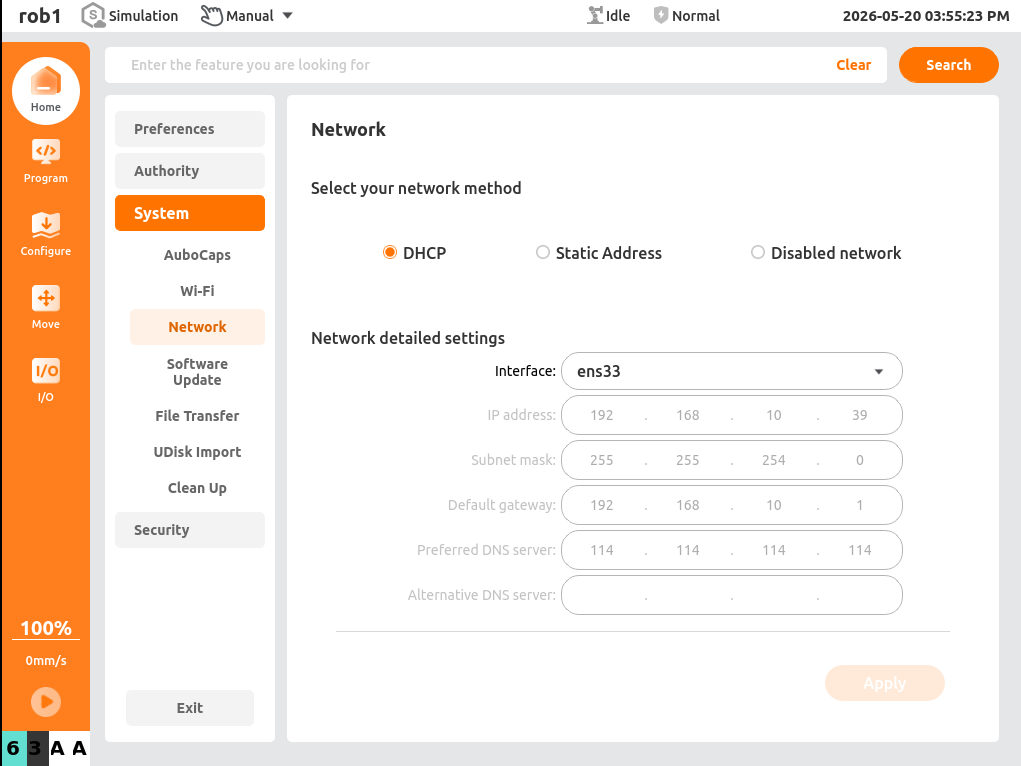

  2. Click System  Network, select DHCP; or set the robot’s IP address to a static address on the same subnet as the industrial PC.

    aubo arcs3
The IP addresses of the IPC and the robot should differ from each other but reside in the same subnet.

Test Master-Control Communication

Run the Master-Control Program

  1. Start the robot.

  2. In the ARCS interface, load the aubo_i5 program and click Start.

Create a Mech-Viz Project

  1. Open Mech-Viz, press Ctrl + N on the keyboard to create a new project. Select the robot model corresponding to your real robot brand and model on the interface as shown below.

    Unnamed image

  2. Press Ctrl + S and create or select a folder to save the project.

  3. Right-click the project name in the left panel in Mech-Viz and select Autoload Project.

    Unnamed image

Connect to the Robot

  1. Click Master-Control Robot on the toolbar of Mech-Viz.

  2. Input the IP address of the real robot in Robot IP address (the IP address in the picture is only an example). Click Connect the robot.

    Unnamed image

    If Mech-Viz successfully connects the real robot, the current status will change to Connected. Meanwhile, the icon in the toolbar will turn from blue to green.

    Unnamed image

    If the connection fails, please double-check the robot IP address.

Move the Robot

  1. In the toolbar of Mech-Viz, change the “Vel.” (velocity) and “Acc.” (acceleration) parameters to 5%.

    Unnamed image

  2. Click Sync Robot in the toolbar, and you can synchronize the poses of the simulated robot in the 3D simulation space with the poses of the real robot. Then click Sync Robot again to unselect it.

    Unnamed image

  3. In the Robot tab, slightly adjust the value of “J1”, for example, from 0˚ to 3˚. This operation will move the simulated robot.

    Unnamed image

  4. Click Move real robot and check if the real robot has moved. If the real robot has reached the JPs set for the simulated robot, the master-control communication is working.

    When moving the robot, please ensure the safety of personnel. In the case of an emergency, press the emergency stop button on the teach pendant!
    Unnamed image
