UR CB-Series (Polyscope 3.9 or Above)

Plugin Installation and Setup

This section introduces the installation and setup of Mech-Mind 3D Vision Interface (URCap plugin) for UR CB-series.

Prerequisites

Verify that you meet the minimum required versions for Mech-Mind vision-series software and Polyscope.

To view the version of Polyscope, press About on the Polyscope home screen of the UR teach pendant.

Install the URCap plugin

To install the URCap plugin, follow these steps:

Find the URCap plugin file with the extension “1.4.6.urcap” in Mech-Center\Robot_Interface\Robot_Plugin\UR_URCAP from the installation directory of Mech-Vision & Mech-Viz, and copy the file to the USB flash drive.
Insert the USB drive into the UR teach pendant.
On the Polyscope home screen, press Setup Robot.
In the Setup Robot window, select URCaps on the left panel.
In the URCaps window, press + to navigate to the USB drive to locate the URCap plugin (.urcap file).
In the Select URCap to install window, select the URCap plugin and press Open. The URCap plugin will be automatically installed.
Press Restart for the change to take effect.

Till now, the URCap plugin is successfully installed on the UR teach pendant.

After installing the URCap plugin, you also need to set the IP address of the robot (select Set Robot > Network). Note that the robot’s IP address and the IPC’s IP address must be on the same subnet.

Use Mech-Mind 3D Vision Interface

Before use, make sure that your Mech-Vision and Mech-Viz (if used) projects are ready to run, and the Mech-Mind IPC is connected to the robot’s network.

To use Mech-Mind 3D Vision Interface, you need to complete the following setup.

Run Mech-Vision, and you may enter different interfaces. Create a new solution according to the instructions below.
- If you have entered the Welcome interface, click New blank solution.
- If you have entered the main interface, click File New Solution on the menu bar.
Click Robot Communication Configuration on the toolbar of Mech-Vision.
In the Robot Communication Configuration window, complete the following configurations.
1. Click the Select robot drop-down menu, and select Listed robot. Click Select robot model, and select the robot model that you use. Then, click Next.
2. In the Communication mode area, select Standard Interface for Interface service type, TCP Server for Protocol, and ASCII for the protocol format.
3. Set the port number to 50000 (fix valued). Ensure that the port number is not occupied by another program.
4. (Optional) Select Auto enable interface service when opening the solution.
5. Click Apply.
On the main interface of Mech-Vision, make sure that the Robot Communication Configuration switch on the toolbar is flipped and has turned blue.

After the TCP server interface has been started in Mech-Vision, you can connect to it on the UR teach pendant.

On the Polyscope home screen, press Program Robot.
Select the Installation tab, and press Network Settings on the left panel. The Network Settings window of the URCap plugin is displayed.
Set MechMind IPC IP Address and Port No. to the IP address and port number of the Mech-Mind IPC respectively, and press Apply. The port number here and set in Mech-Vision must be 50000. Then, press Apply.

Press Connection Test.

When the connection to the TCP server interface is established successfully, the return status should look like this:
When the connection to the TCP server interface fails to be established, the return status should be like this:

The connection test is just for testing. Once connected, it will disconnect automatically. Therefore, you will see client online and offline logs on the Console tab of Mech-Vision Log panel.

Hand-Eye Calibration Using the Plugin

This section introduces the process of calibrating the camera extrinsic parameters using the URCap plugin.

Prerequisites

Before proceeding, please make sure that:

You have successfully connected to the TCP server interface with the URCap plugin.
You are familiar with the contents in Hand-Eye Calibration Guide of Mech-Vision.

Create a Calibration Program

On the UR teach pendant, select Program Robot Program, and press Empty Program.
Select Structure URCaps, press Mech-Mind Calibrate under the URCaps tab. An example program node Calibrate is automatically created under the Robot Program program tree on the left panel.

The created example program node is just a template. You need to further configure the calibration program and teach the calibration start point.

Teach the Calibration Start Point

Select the Calibrate node in the program tree, press the Command tab on the right panel, and set the Receive Point Type from Mech-Vision parameter to “Joint Angle” or “Flange Pose” according to the actual needs.
Press Next on the bottom bar to proceed to the MOVEJ node, set the motion type to “MoveJ”, “MoveL” or “MoveP”, and Set TCP to Use Tool Flange on the right Move panel to ensure that the waypoint will be recorded as flange pose.
Manually control the robot to move to the start point for the calibration.
Go back to the UR teach pendant, select the start_pose node on the left panel, and press Set Waypoint on the right Waypoint panel. You will be switched to the Move tab.
On the Move tab, confirm that the robot’s current flange pose is proper and press OK.

Run the Calibration Program

Select the Robot Program program tree on the left panel, and clear the Program Loops Forever checkbox on the right Program panel to ensure that the program is run just once.
On the bottom bar, lower the robot speed to a proper value, such as 10%, for safety concerns.
Press on the bottom bar to run the program.

If the calibration program runs successfully, the message “Entering the calibration process, please start the calibration in Mech-Vision” will be displayed on the Console tab of the Log panel in Mech-Vision.

Complete Calibration in Mech-Vision

In Mech-Vision, click Camera Calibration (Standard) on the toolbar, or select Camera Camera Calibration Standard from the menu bar.
Follow the instructions based on different camera mounting methods to complete the configuration.
- If the camera is mounted in the Eye to Hand mode, please refer to Complete Automatic Calibration in the Eye to Hand Scenario.
- If the camera is mounted in the Eye in Hand mode, please refer to Complete Automatic Calibration in the Eye in Hand Scenario.

To save the calibration program for future use, select File Save As to save it.

After you complete the hand-eye calibration, you can create pick and place programs to instruct UR robots to execute vision-guided pick and place tasks.

Create Pick and Place programs

The URCap plugin provides an example Pick and Place program node for you to create pick and place programs with minimal programming efforts.

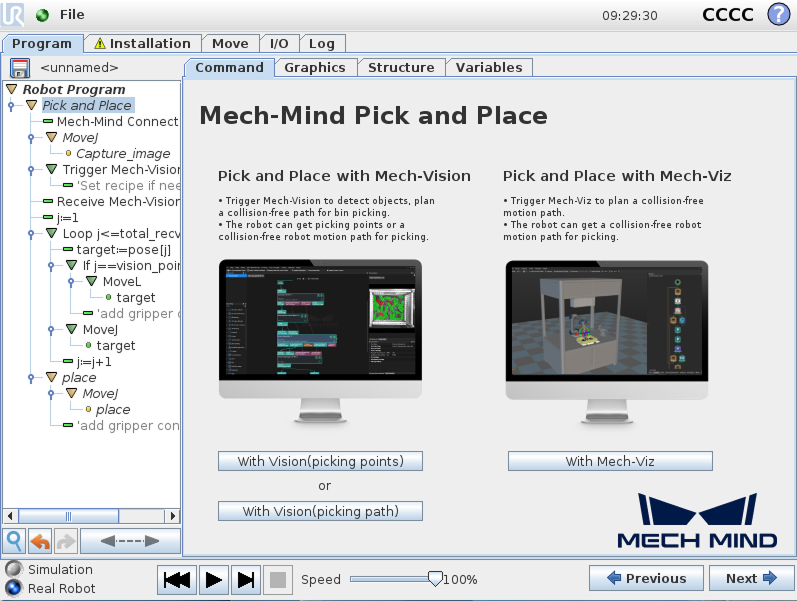

This Pick and Place program node provides two options:

Pick and Place with Mech-Vision: It suits scenarios where only a Mech-Vision project is used and the robot does not need Mech-Viz to plan path.
Pick and Place with Mech-Viz: It suits scenarios where a Mech-Viz project is used together with a Mech-Vision project to provide the collision-free motion path for the robot.

The plugin provides a program template for each option to facilitate the programming.

The following examples assume that the actually used gripper and its TCP have been set for the robot properly.

Create a Pick and Place with Mech-Vision Program

To create a Pick and Place with Mech-Vision program, follow these steps:

Enable the Pick and Place with Mech-Vision option.
1. On the UR teach pendant, select Program Robot Program Empty Program.
2. Select Structure URCaps, press Mech-Mind Pick and Place under the URCaps tab. An example program node Pick and Place is automatically created under the Robot Program program tree on the left panel.
3. Select the Command tab, and press the WithMech-Vision button on the right panel.
4. When you see that a program template is automatically created under the Pick and Place node in the program tree, press Next on the bottom bar.
At the Mech-Mind Connect node, verify that the Host IP setting is the IP address of the Mech-Mind IPC on the right Mech-Mind Connect panel.
Set the image-capturing pose.
1. Manually move the robot to the proper location to capture an image. Mech-Vision will take an image here.
  For Eye-In-Hand scenario, the robot should be placed above the workpiece.

  For Eye-To-Hand scenario, the robot should not block the camera view.
2. Go back to the teach pendant, press Next on the bottom bar to proceed to the MOVEJ node, set the motion type to “MoveJ”, “MoveL” or “MoveP”, and Set TCP to Use active TCP on the right Move panel, and press Next.
3. Press Set Waypoint on the right Waypoint panel. You will be switched to the Move tab.
4. On the Move tab, confirm that the robot’s current TCP is proper and press OK.
5. Once the image capturing pose is set, press Next.

Trigger the Mech-Vision project to run.

Set the parameters Send Current Robot Position to Mech-Vision, Mech-Vision Project ID, and Request Vision Point Number on the right Trigger Mech-Vision panel.

Parameter	Description
Mech-Vision Project ID	The index of the Mech-Vision project to trigger. You can find the project ID in the Project List panel of Mech-Vision.
Request Vision Point Number	The number of vision points that you expect Mech-Vision to output. If it is set to 0, all detected object points, but no more than 20, will be output. If it is set to a number from 1 to 20, Mech-Vision will try to return the fixed number of vision points if the total detected number is greater than the number you expect.

Parameter

Description

Mech-Vision Project ID

The index of the Mech-Vision project to trigger. You can find the project ID in the Project List panel of Mech-Vision.

Request Vision Point Number

The number of vision points that you expect Mech-Vision to output.

If it is set to 0, all detected object points, but no more than 20, will be output.
If it is set to a number from 1 to 20, Mech-Vision will try to return the fixed number of vision points if the total detected number is greater than the number you expect.

(Optional) Press Set Vision Recipe ID and a Set Recipe ID node are added under the Trigger Mech-Vision node in the program tree.
Select the Set Recipe ID node in the program tree, set Mech-Vision Recipe ID on the right Set Recipe ID panel, and press Next.

Set how to receive Mech-Vision result.

Select the Receive Mech-Vision Result node under the Pick and Place node in the program tree, set variable names for Pose, Label, Total Received, and Status Code, which are used to save the vision result, and then press Next.

Parameter	Description
Pose	The points of detected parts is in the XYZ format. The robot can directly move to the point with active TCP. By default, the received points are saved in the array variable “pose[]”, start with array index 1.
Label	The object labels of detected parts. The label is an Integer. By default, the labels are saved in the array variable “label[]”, start with array index 1. Labels and Poses are one-to-one paired.
Total Received	The total received vision point number.
Status code	The returned status code. See Status Codes and Troubleshooting for reference. 11xx is normal code, and 10xx is error code. By default, the status code is saved in the variable “status_code”.
Starting at ID	The start index of the array variables for poses and labels. By default, the index is starting with 1.

Parameter

Description

Pose

The points of detected parts is in the XYZ format. The robot can directly move to the point with active TCP. By default, the received points are saved in the array variable “pose[]”, start with array index 1.

Label

The object labels of detected parts. The label is an Integer. By default, the labels are saved in the array variable “label[]”, start with array index 1. Labels and Poses are one-to-one paired.

Total Received

The total received vision point number.

Status code

The returned status code. See Status Codes and Troubleshooting for reference. 11xx is normal code, and 10xx is error code. By default, the status code is saved in the variable “status_code”.

Starting at ID

The start index of the array variables for poses and labels. By default, the index is starting with 1.

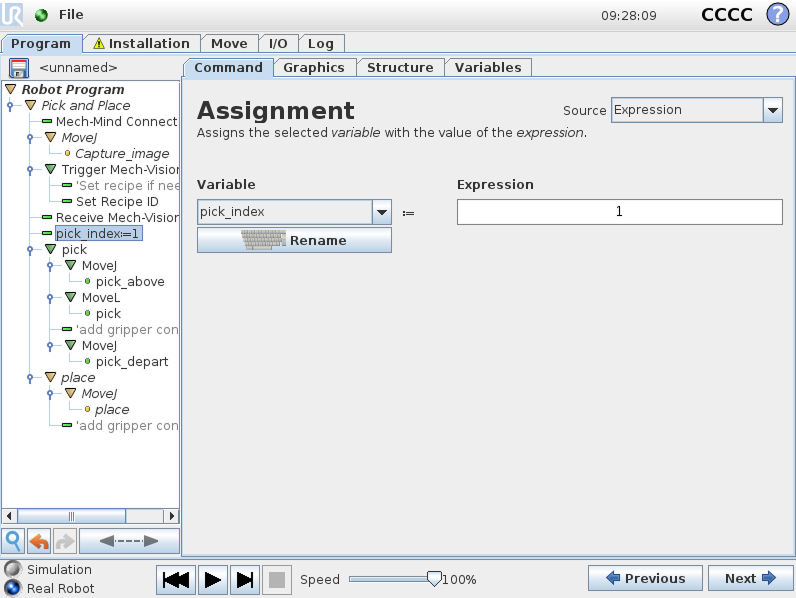

Set the pick task.

A pick task consists of three motions: Pick_above, performs a linear approach to the pick point; Pick, picks the object, and Pick_depart, performs a linear departure away after picking.
1. Set the parameters Dist and Coordinates for the Pick_above and Pick_depart respectively on the right Mech-Vision Pick panel, and then press Next.
2. Keep the default settings for the MoveJ node on the right Move panel, and then press Next.
3. Keep the default settings for the pick_above node on the right Waypoint panel, and then press Next.
4. Keep the default settings for the MoveL node on the right Move panel, and then press Next.
5. Keep the default settings for the pick node on the right Waypoint panel, and then press Next.
6. Add gripper control logic for picking after the pick node according to your actual conditions.
7. Keep the default settings for the MoveJ node on the right Move panel, and then press Next.
8. Keep the default settings for the pick_depart node on the right Waypoint panel, and then press Next.
Set the place task.
1. Press Next to proceed to the next MoveJ node.
2. Keep the default settings for the MoveJ node on the right Move panel, and then press Next.
3. Manually move the robot to the proper location to place the picked object.
4. Go back to the teach pendant, and press Set Waypoint on the right Waypoint panel. You will be switched to the Move tab.
5. On the Move tab, confirm that the robot’s current flange pose is proper and press OK.
6. Once the place pose is set, press Next.
7. Add gripper control logic for placing after the place node in the program tree according to your actual conditions.

Till now, a simple pick and place program collaborating with a Mech-Vision project has been completed. You can run it by pressing run cb on the bottom bar.

Create a Pick and Place with Mech-Viz Program

To create a Pick and Place with Mech-Viz program, follow these steps:

Enable the Pick and Place with Mech-Viz option.
1. On the UR teach pendant, select Program Robot Program Empty Program.
2. Select Structure URCaps, press Mech-Mind Pick and Place under the URCaps tab. A Pick and Place program node is then added to the Robot Program program tree on the left panel.
3. Select the Command tab, and press the With Mech-Viz button on the right panel.
4. When you see that a program template is automatically created under the Pick and Place node in the program tree, press Next on the bottom bar.
At the Mech-Mind Connect node, verify that the Host IP setting is the IP address of the Mech-Mind IPC on the right Mech-Mind Connect panel.
Set the image capturing pose in reference to Step 3 in Pick and Place with Mech-Vision.

The point is where to trigger the Mech-Viz project.

Trigger the Mech-Viz project to run.

Set the Send Current Robot Position to Mech-Viz parameter to “JPs&TCP” or “Dedicated Point” on the right Trigger Mech-Viz panel.

If you want Mech-Viz to plan the path before the robot arrives at the start position, set the Send Current Robot Position to Mech-Viz parameter to “Dedicated Point” and specify a dedicated joint position.
If you use the branch task in the Mech-Viz project and want the robot to select the branch out port, press Set Branch Out Port, and proceed to Step b to set the branch out port.
If you use a move-class task that has the index parameter, press Set Index Value, and proceed to Step c to set the index value.

(Optional) Select the Set Branch Value node in the program tree, set Branch Task ID and Branch Out Port on the right Set Branch Value panel, and press Next.
(Optional) Select the Set Index Value node in the program tree, set Index Task ID and Branch Out Port on the right Set Index Value panel, and press Next.

Set how to receive Mech-Viz result.

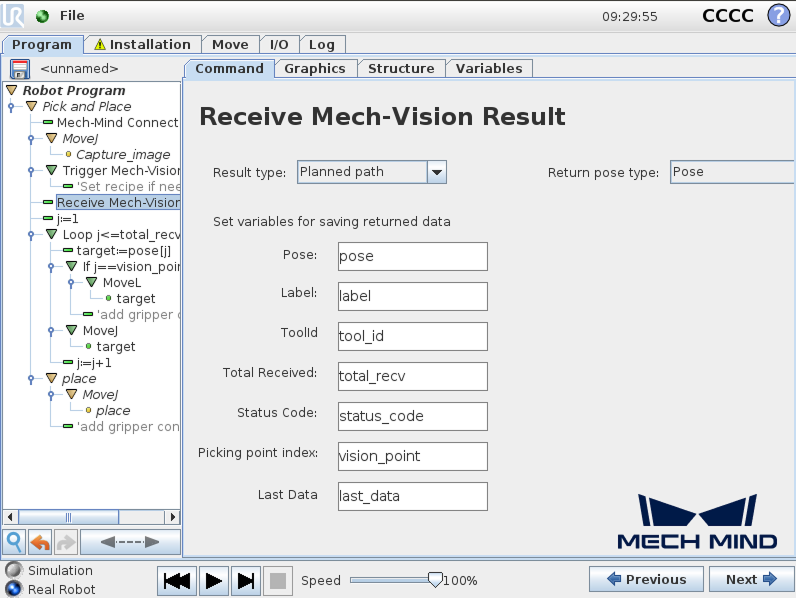

Select the Receive Mech-Viz Result node in the program tree, set variable names for Pose, Label, Speed (%), Total Received, Status Code, and Vision Point Index, which are used to save the planned path, and then press Next.

Parameter	Description
Pose	The planned motion path in XYZ format. The robot can directly move to the point with active TCP. By default, the received poses are saved in the array variable “pose[]”, start with array index 1.
Label	The object labels of detected parts. The label is an Integer. For non-vision point, the label should be 0. By default, the labels are saved in the array variable “label[]”, start with array index 1. Labels and Poses are one-to-one paired.
Speed	The robot’s velocity at this point, in the form of percentage.
Total Received	The total received vision point number.
Status code	The returned status code. See Status Codes and Troubleshooting for reference. 21xx is normal code, and 20xx is error code. By default, the status code is saved in the variable “status_code”.
Vision Point Index	The index of Vision Move in the received points. For example, Mech-Viz sends 3 points in the order of relative_move_1，visual_move_1 and relative_move_2, so the vision point index is 2. By default, the vision point index is saved in the variable “vision_point”.
Starting at ID	The start index of the array variables for poses and labels. By default, the index is starting with 1.

Parameter

Description

Pose

The planned motion path in XYZ format. The robot can directly move to the point with active TCP. By default, the received poses are saved in the array variable “pose[]”, start with array index 1.

Label

The object labels of detected parts. The label is an Integer. For non-vision point, the label should be 0. By default, the labels are saved in the array variable “label[]”, start with array index 1. Labels and Poses are one-to-one paired.

Speed

The robot’s velocity at this point, in the form of percentage.

Total Received

The total received vision point number.

Status code

The returned status code. See Status Codes and Troubleshooting for reference. 21xx is normal code, and 20xx is error code. By default, the status code is saved in the variable “status_code”.

Vision Point Index

The index of Vision Move in the received points. For example, Mech-Viz sends 3 points in the order of relative_move_1，visual_move_1 and relative_move_2, so the vision point index is 2. By default, the vision point index is saved in the variable “vision_point”.

Starting at ID

The start index of the array variables for poses and labels. By default, the index is starting with 1.

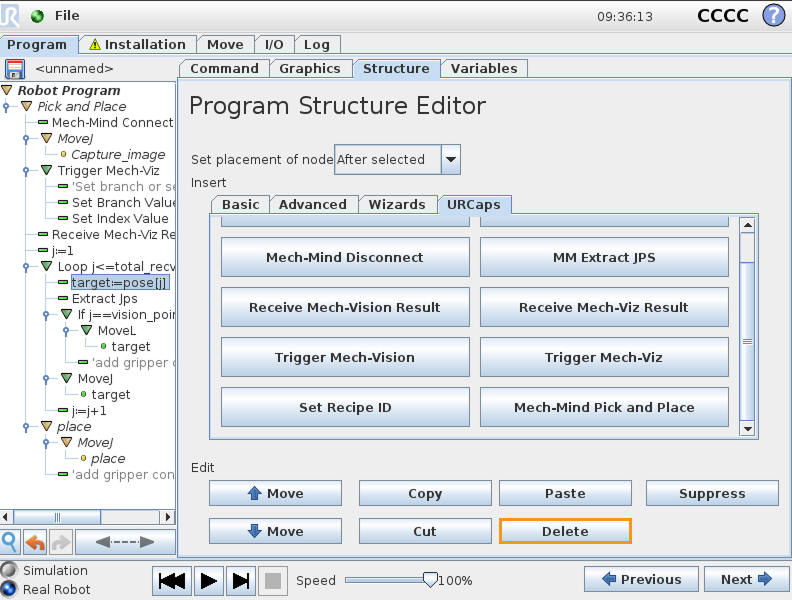

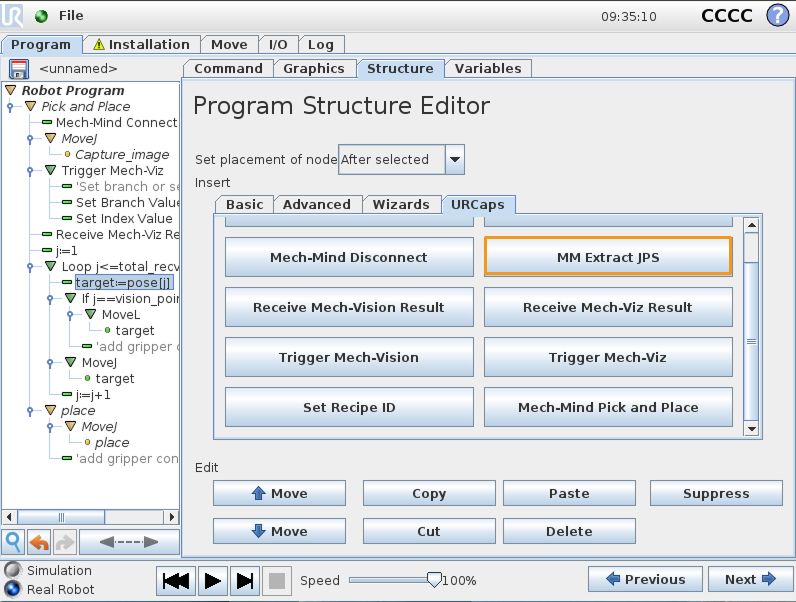

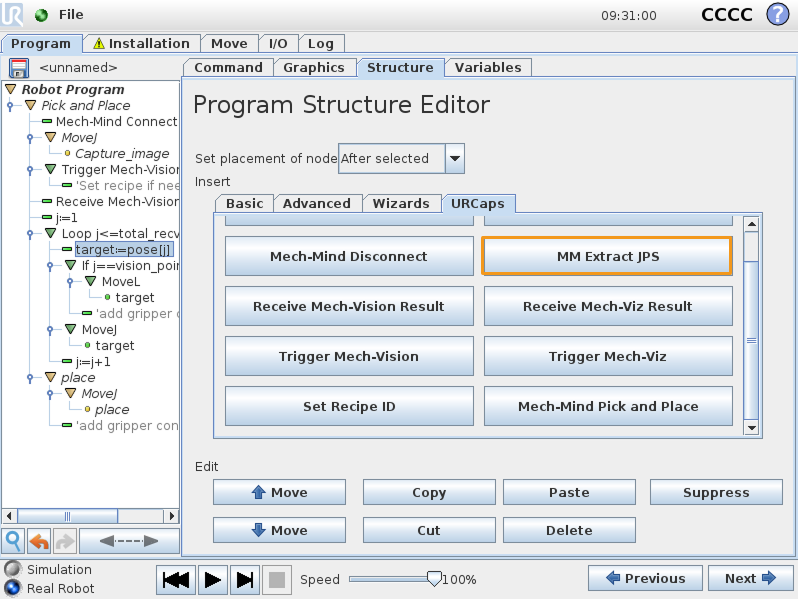

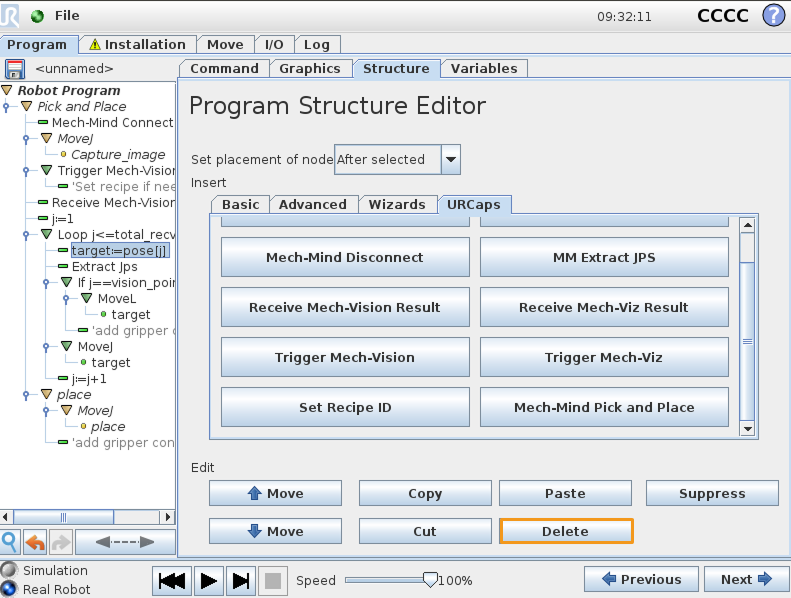

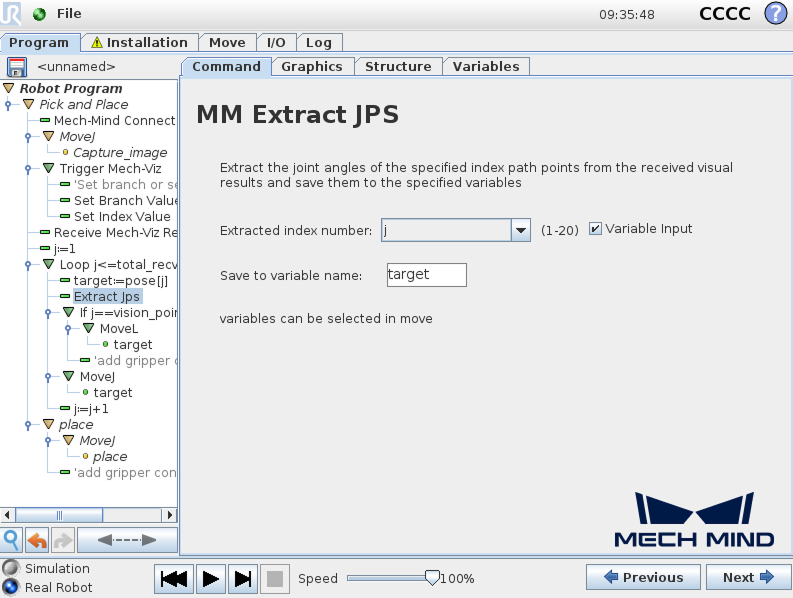

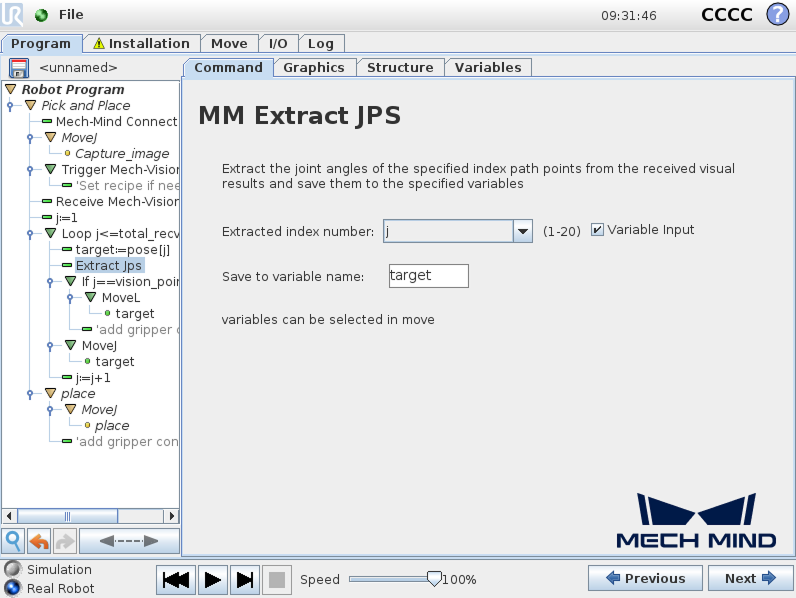

Configure the motion loop, which drives the robot to follow the path planned by Mech-Viz, that is, approach the object, pick the object, and depart from the pick point (not including placing the object). For how to set MoveL and MoveJ nodes, refer to Steps 6 in Pick and Place with Mech-Vision.

In actual applications, the motion loop may contain several pick_above MoveJ nodes, a pick MoveL node, and several pick_depart MoveJ nodes.
If you change the default variable names of poses, labels, etc. in the node of Receive Mech-Viz Result, you need to change the variables used in this step.

Set the place task in reference to Step 7 in Pick and Place with Mech-Vision.

Till now, a simple pick and place program collaborating with a Mech-Viz project has been completed. You can run it by pressing run cb on the bottom bar.
