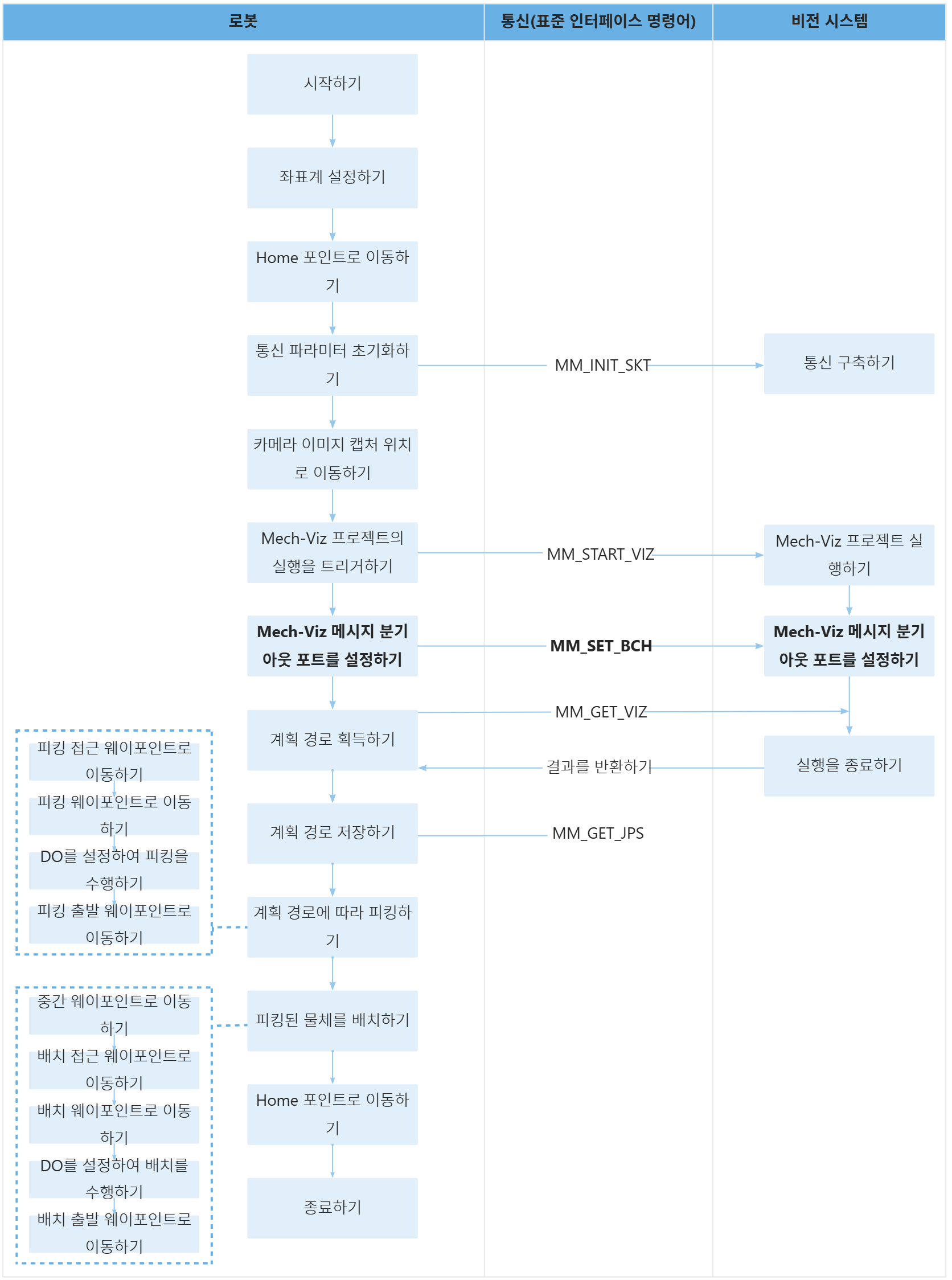

샘플 프로그램5: MM_S5_Viz_SetBranch

   1:  !-------------------------------- ;
   2:  !FUNCTION: trigger Mech-Viz ;
   3:  !project then set branch and get ;
   4:  !planned path ;
   5:  !Mech-Mind, 2023-12-25 ;
   6:  !-------------------------------- ;
   7:   ;
   8:  !set current uframe NO. to 0 ;
   9:  UFRAME_NUM=0 ;
  10:  !set current tool NO. to 1 ;
  11:  UTOOL_NUM=1 ;
  12:  !move to robot home position ;
  13:J P[1] 100% FINE    ;
  14:  !initialize communication ;
  15:  !parameters(initialization is ;
  16:  !required only once) ;
  17:  CALL MM_INIT_SKT('8','127.0.0.1',50000,5) ;
  18:  !move to image-capturing position ;
  19:L P[2] 1000mm/sec FINE    ;
  20:  !trigger Mech-Viz project ;
  21:  CALL MM_START_VIZ(2,10) ;
  22:  !set branch, "MM_SET_BCH ;
  23:  !(Branch_Num,Exit_Num)" ;
  24:  CALL MM_SET_BCH(1,1) ;
  25:  !get planned path, 1st argument ;
  26:  !(1) means getting pose in JPs ;
  27:  CALL MM_GET_VIZ(1,51,52,53) ;
  28:  !check whether planned path has ;
  29:  !been got from Mech-Viz ;
  30:  !successfully ;
  31:  IF R[53]<>2100,JMP LBL[99] ;
  32:  !save waypoints of the planned ;
  33:  !path to local variables one ;
  34:  !by one ;
  35:  CALL MM_GET_JPS(1,60,70,80) ;
  36:  CALL MM_GET_JPS(2,61,71,81) ;
  37:  CALL MM_GET_JPS(3,62,72,82) ;
  38:  !follow the planned path to pick ;
  39:  !move to approach waypoint ;
  40:  !of picking ;
  41:J PR[60] 50% FINE    ;
  42:  !move to picking waypoint ;
  43:J PR[61] 10% FINE    ;
  44:  !add object grasping logic here, ;
  45:  !such as "DO[1]=ON" ;
  46:  PAUSE ;
  47:  !move to departure waypoint ;
  48:  !of picking ;
  49:J PR[62] 50% FINE    ;
  50:  !move to intermediate waypoint ;
  51:  !of placing ;
  52:J P[3] 50% CNT100    ;
  53:  !move to approach waypoint ;
  54:  !of placing ;
  55:L P[4] 1000mm/sec FINE Tool_Offset,PR[2]    ;
  56:  !move to placing waypoint ;
  57:L P[4] 300mm/sec FINE    ;
  58:  !add object releasing logic here, ;
  59:  !such as "DO[1]=OFF" ;
  60:  PAUSE ;
  61:  !move to departure waypoint ;
  62:  !of placing ;
  63:L P[4] 1000mm/sec FINE Tool_Offset,PR[2]    ;
  64:  !move back to robot home position ;
  65:J P[1] 100% FINE    ;
  66:  END ;
  67:   ;
  68:  LBL[99:vision error] ;
  69:  !add error handling logic here ;
  70:  !according to different ;
  71:  !error codes ;
  72:  !e.g.: status=2038 means no ;
  73:  !point cloud in ROI ;
  74:  PAUSE ;
