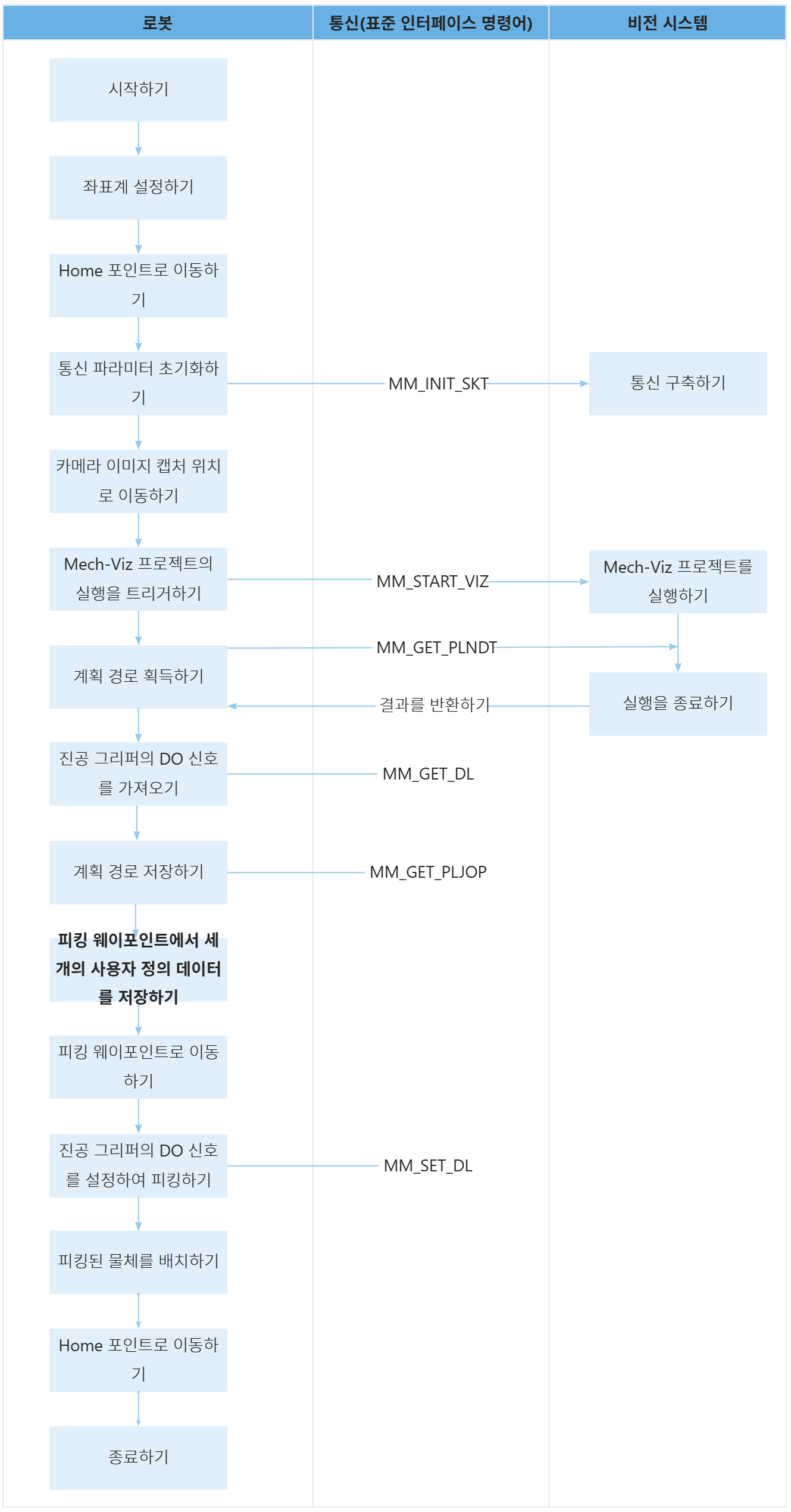

샘플 프로그램18: MM_S18_Viz_GetUserData

   1:  !-------------------------------- ;
   2:  !FUNCTION: trigger Mech-Viz ;
   3:  !project, then get planned path ;
   4:  !and get custom data from ;
   5:  !Mech-Vision using command 210 ;
   6:  !Mech-Mind, 2023-12-25 ;
   7:  !-------------------------------- ;
   8:   ;
   9:  !set current uframe NO. to 0 ;
  10:  UFRAME_NUM=0 ;
  11:  !set current tool NO. to 1 ;
  12:  UTOOL_NUM=1 ;
  13:  !move to robot home position ;
  14:J P[1] 100% FINE    ;
  15:  !initialize communication ;
  16:  !parameters(initialization is ;
  17:  !required only once) ;
  18:  CALL MM_INIT_SKT('8','127.0.0.1',50000,5) ;
  19:  !move to image-capturing position ;
  20:L P[2] 1000mm/sec FINE    ;
  21:  !trigger Mech-Viz project ;
  22:  CALL MM_START_VIZ(2,10) ;
  23:  !get planned path ;
  24:  CALL MM_GET_PLNDT(0,3,51,52,53) ;
  25:  !check whether planned path has ;
  26:  !been got from Mech-Viz ;
  27:  !successfully ;
  28:  IF R[53]<>2100,JMP LBL[99] ;
  29:  !get gripper control signal list ;
  30:  CALL MM_GET_DL(0,0) ;
  31:  !save waypoints of the planned ;
  32:  !path to local variables one ;
  33:  !by one ;
  34:  CALL MM_GET_PLJOP(1,3,60,61,62,63,64,70) ;
  35:  CALL MM_GET_PLJOP(2,3,61,91,92,93,94,100) ;
  36:  CALL MM_GET_PLJOP(3,3,62,121,122,123,124,130) ;
  37:  !save received custom data of ;
  38:  !2nd point ;
  39:  R[10]=R[94]    ;
  40:  R[11]=R[95]    ;
  41:  R[12]=R[96]    ;
  42:  !follow the planned path to pick ;
  43:  !move to approach waypoint ;
  44:  !of picking ;
  45:J PR[60] 50% FINE    ;
  46:  !move to picking waypoint ;
  47:J PR[61] 10% FINE    ;
  48:  !add object grasping logic here ;
  49:  PAUSE ;
  50:  !set gripper control signal ;
  51:  CALL MM_SET_DL(0)    ;
  52:  !move to departure waypoint ;
  53:  !of picking ;
  54:J PR[62] 50% FINE    ;
  55:  !move to intermediate waypoint ;
  56:  !of placing ;
  57:J P[3] 50% CNT100    ;
  58:  !move to approach waypoint ;
  59:  !of placing ;
  60:L P[4] 1000mm/sec FINE Tool_Offset,PR[2]    ;
  61:  !move to placing waypoint ;
  62:L P[4] 300mm/sec FINE    ;
  63:  !add object releasing logic here, ;
  64:  !such as "DO[1]=OFF" ;
  65:  PAUSE ;
  66:  !move to departure waypoint ;
  67:  !of placing ;
  68:L P[4] 1000mm/sec FINE Tool_Offset,PR[2]    ;
  69:  !move back to robot home position ;
  70:J P[1] 100% FINE    ;
  71:  END ;
  72:   ;
  73:  LBL[99:vision error] ;
  74:  !add error handling logic here ;
  75:  !according to different ;
  76:  !error codes ;
  77:  !e.g.: status=2038 means no ;
  78:  !point cloud in ROI ;
  79:  PAUSE ;
