Use Production Interface
This section introduces how to use the production interface.
View Measurement Results

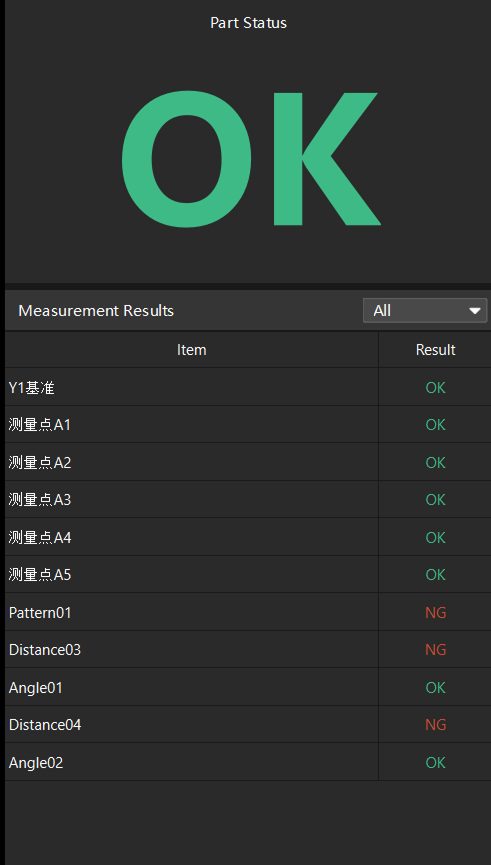

In the Measurement Results table on the left side of the Production interface, you can view the specific measured values and results (OK or NG) for each measurement item of the current part.
|
In the top-right corner of the 3D view, select Full inspection or Partial inspection to filter the measurement table for items configured as full or partial inspection. |

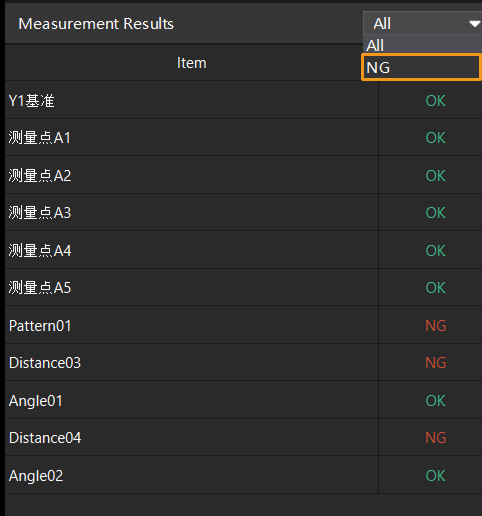

To filter the NG measurement results, click the drop-down list in the upper right corner of the Measurement Results table and select NG. All NG measurement items will be displayed.
View Trend Charts
In the middle of the Mech-Metrics Production interface, view the trend of measurement items in the Trend Charts area, and select whether to enable History Mode.
View Trends in Real-Time Mode
-
In the Measurement Results table on the left of the Production interface, click a measurement item.
-

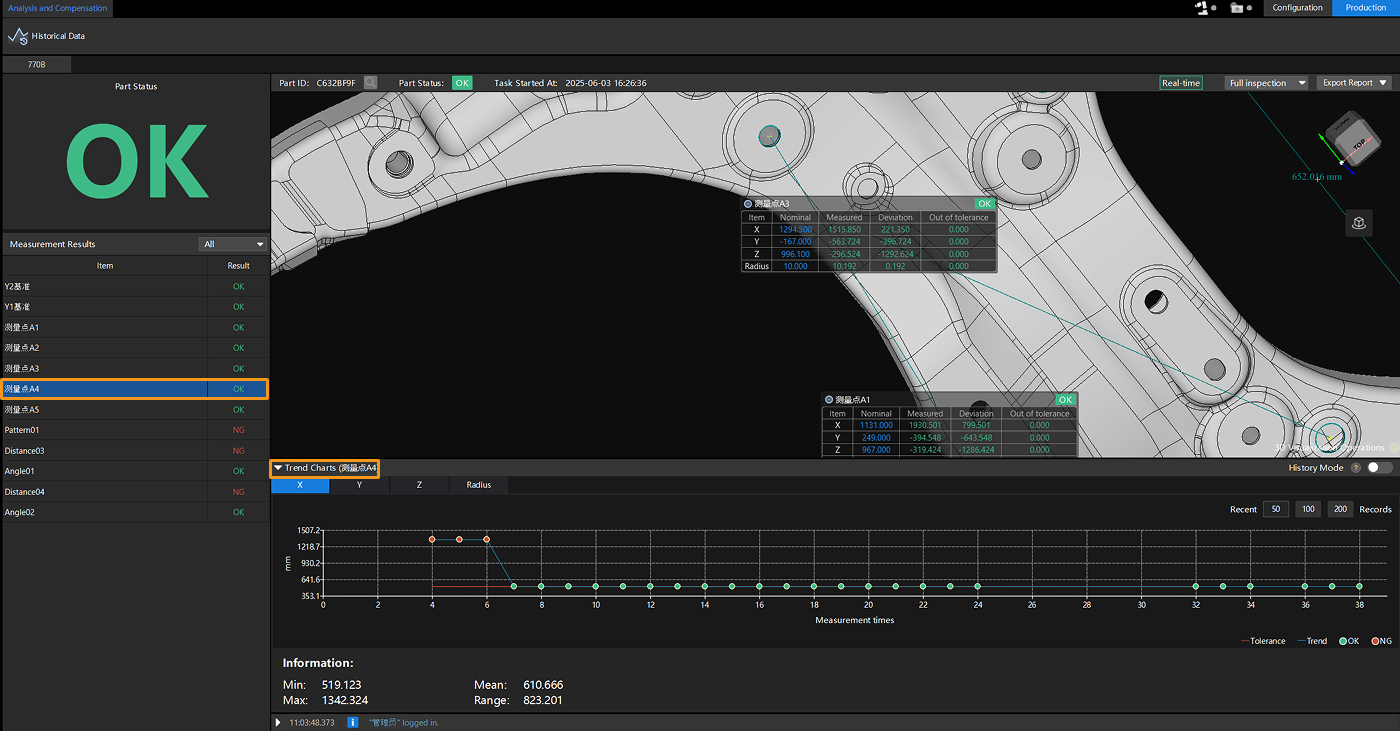

In the Trend Charts area, the trend chart of each measurement sub-item of the current measurement item is displayed. You can click each sub-item’s tab to view the measured values for the last 50 to 200 measurements and the data trends.
In this case, the History Mode button in the Trend Charts area is turned off, indicating that the Production interface is in Real-time mode.
View Trends in Historical Mode
-
In the Measurement Results table on the left of the Production interface, click a measurement item.
-
In the Trend Charts area, click the History Mode button to open History Mode.
-

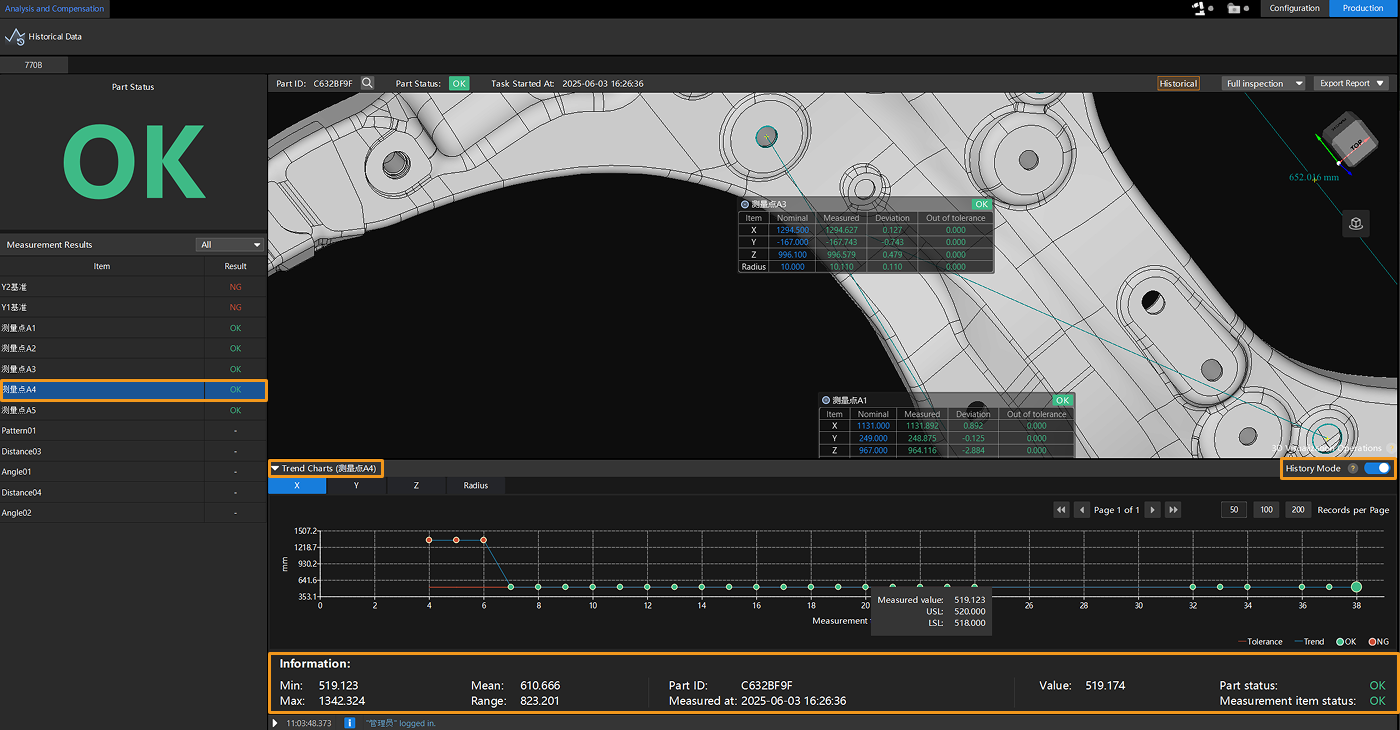

Click the tab for each measurement sub-item to view the measured values, data trends, and other information (such as the status of the associated measurement item, the status of the associated part, the part ID, etc.) for each measurement time.
Export Report
Measurement reports can be exported in the production interface. For details, refer to Export Report.
