Basic Concepts

A Mech-Metrics project is a project created by the user in Mech-Metrics to maintain and manage an inline measurement project. A Mech-Metrics project contains a complete set of measurement configurations, which enables the management of the entire measurement process from part import, reference frame establishment, and measurement item configuration to data collection and analysis.

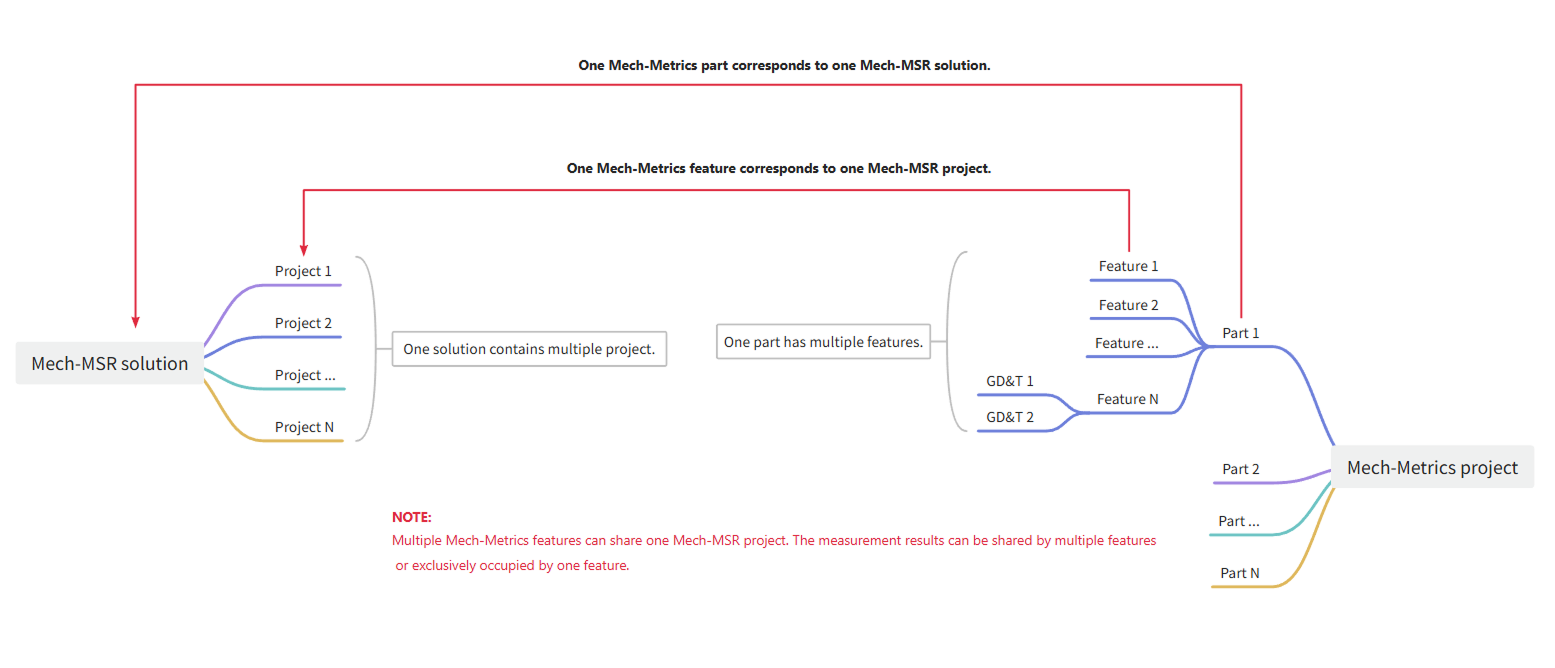

A Mech-MSR solution refers to a Mech-MSR solution specifically configured for measuring a particular part. When you use Mech-Metrics, you need to associate a part with its Mech-MSR solution.

A part refers to an individual workpiece that is processed or assembled during production.

A feature refers to specific geometric elements or attributes of a part, such as its shape, dimensions, and so on. The features that can be measured in this software include circle, slot, cylinder, point, line, plane, rectangle, pattern, distance, and angle.

A measurement item refers to an item that you can create in the current project, for which measurement values need to be obtained through measurement. It includes features (such as circles, slots, cylinders, points, lines, planes, rectangles, and patterns) and dimension measurement items (such as distances and angles).

Control items refer to the measurement children of measurement items. Control items are used to constrain measurement items. For example, the control items of a circle measurement item include dimension control items (X, Y, Z, and radius), GD&T control items (profile of a surface, parallelism, perpendicularity, position, and concentricity), and custom control items.

Nominal values refer to the ideal or target dimensions of a feature, which are the standard values that the designer expects the part to achieve during the manufacturing process. The nominal values serve as a reference to determine the shape, size, and other design requirements of the part.

Measured values refer to the actual measurement results of features provided by Mech-MSR and processed by Mech-Metrics. After importing the measured values into Mech-Metrics, the coordinates are transformed according to the newly created reference frame, and all measurement results are expressed and analyzed according to this reference frame.

Tolerance refers to the difference between the maximum and minimum allowable dimensions based on a nominal value. For example, if a cylinder is designed to have a length of 50 mm and a tolerance of ±0.1 mm, it is eligible within the range of 49.9 mm to 50.1 mm.

Alignment refers to establishing the spatial relationship between different reference frames (such as the robot reference frame and the vehicle body reference frame), so as to accurately transform the measured values in the robot reference frame into those in the vehicle body reference frame or other target reference frames. Alignment is the foundation for unifying the data in multiple reference frames and aligning measurement results.

Part alignment refers to defining a reference frame based on datum features of the part (such as holes, edges, and datum surfaces). Since the reference feature of each part may be different, when a part is used for alignment, the reference frame of each part may also be different. This method can appropriately relax the requirements on the accuracy of fixtures, suitable for scenarios where the reference features of the part are easy to recognize and the fixturing methods vary. The transformation path is as follows: robot reference frame → vehicle body reference frame.

Fixture alignment refers to establishing a reference frame for the fixture (the equipment used to hold the part in place) based on measured features of the fixture. Due to the fixed nature of the fixture, all parts to be measured can be converted to the fixture reference frame by performing alignment once. This method has a high requirement on the accuracy of the fixture, which is suitable for mass production and fixture reuse scenarios. The transformation path is as follows: robot reference frame → vehicle body reference frame.

Correlation refers to the degree of consistency between the measurement results of two different measurement devices when measuring the same dimension of the same part.

Correlation analysis and compensation refer to analyzing the relationship between the measurement results of two different measuring devices, followed by compensating the results of one device to improve the reliability of the device.

Measurement records refer to the measurement data stored in the historical data of the software.

Measurement report is the official document that summarizes, analyzes, and displays the measurement results of parts. Reports usually contain information about measurement objects, measurement items, measurement data, deviation analysis, tolerance judgment, and statistical analysis. Mech-Metrics supports custom PDF and Table report measurement reports to meet different archiving, sharing, and data processing requirements. Measurement reports are widely used in quality traceability, process control, and delivery scenarios.
