Test Static Repeatability

This section introduces how to check the static repeatability.

Repeatability testing

Repeatability testing refers to performing multiple measurements of the same measurement target or object under the same conditions, to assess the consistency of the measurement results.

You can first perform a semi-dynamic repeatability test. For features with poor repeatability results, you can then conduct a static repeatability test. In this case, the static repeatability test only needs to be performed on specific features, making the process more efficient and convenient.

Robot side

  • A robot is a programmable multi-purpose handling device with some autonomy that can perform tasks such as movement, manipulation, or positioning. In the Mech-Mind Vision System, it performs intelligent tasks based on the results output by the vision system.

  • A robot cell usually consists of a robot body, a controller, and a teach pendant.

  • In industrial applications that require a high level of automation, a PLC can be used to control the motion and operation of the robot.

  • In this article, “robot side” is used as a generic term for the robot, PLC, or host computer.

Prerequisites

Before starting the static repeatability test, please ensure the following conditions are met:

  • The current part is associated with the Mech-MSR solution in Mech-Metrics.

  • The current feature is associated with the Mech-MSR project in Mech-Metrics.

  • The Mech-MSR solution and project are open in Mech-MSR.

  • The robot is connected to Mech-MSR by using the Standard Interface communication. Hand-eye calibration is complete, and all measurement positions have been taught in the robot program. The robot has been moved to the first measurement position.

  • The robot and camera have been preheated for 30 minutes before starting the measurement.

  • External lighting and temperature are stable before starting the measurement.

Factors Affecting Static Repeatability

Factors affecting static repeatability:

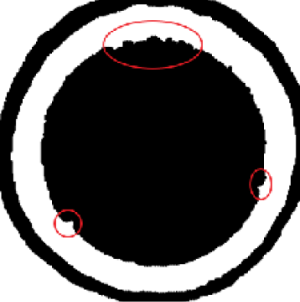

  • Burrs on the part edge

factor1

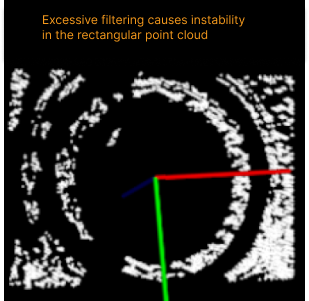

  • Improper filtering parameter settings

factor2

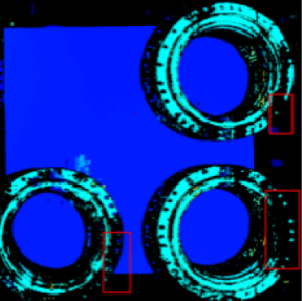

  • Improper exposure parameter settings

factor3

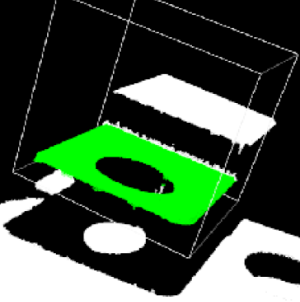

  • Improper ROI settings

factor4

Troubleshooting:

  • Set proper filtering parameters.

  • Set appropriate exposure parameters.

  • Set a proper ROI.

Test Static Repeatability

Follow these steps to test static repeatability:

  1. In the Configuration interface of Mech-Metrics, go to the Analysis and Compensation tab and click Static Repeatability.

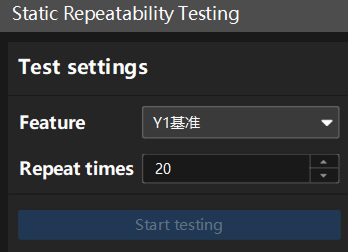

  2. On the Static Repeatability Testing page, select the Feature to be tested, ensure the robot has moved to the feature position, set the Repeat times to 20, and then click Start testing.

    static repeatibility

    The recommended repeat times are between 20 and 50.

  3. After the testing is complete, view the test results for the feature on the right side of this page.

    If an error occurs, follow the prompts provided by the software to troubleshoot.

    3D tab

    • The 3D tab on the test results page shows the change trend of the 3D coordinates of the feature points with the number of measurements.

      1. A feature point refers to the point at the location of the feature. For example, for a circular feature, the feature point is the center of the circle.

      2. 3D coordinates refer to the coordinates of a point in a three-dimensional reference frame.

      3. In the 3D tab, 3D refers to the 3D distance between the feature point location measured each time and the feature point location measured during the first measurement.

    • You can select one or more features in the 3D tab and then view and compare the change trends of the distance with the number of measurements.

  4. Repeat the above steps to perform the static repeatability testing on the remaining features and view the test results.

    In this software, the default static pass threshold is a repeatability range (R) ≤ 0.05mm. If the project has different pass threshold requirements, you can contact technical support for modifications.

    • Accuracy

    Accuracy refers to the closeness or error size between the measurement results and the true value.

    • Range

    Range is a statistical indicator that measures the difference between the maximum and minimum values in a data set. It is used to represent the dispersion of the data.
