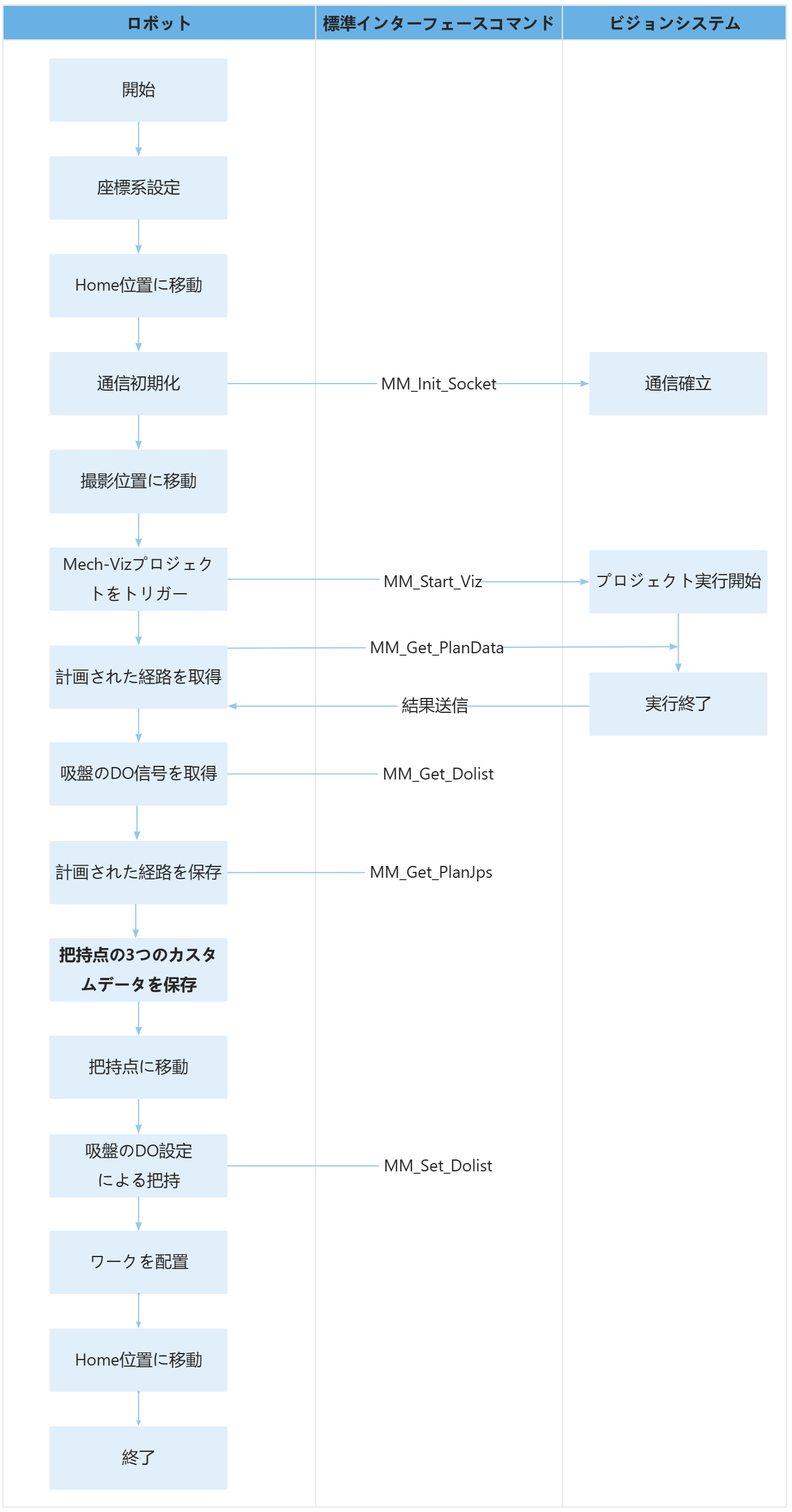

サンプルプログラム18：MM_S18_Viz_GetUserData

DEF  MM_S18_Viz_GetUserData ( )
;---------------------------------------------------
; FUNCTION: trigger Mech-Viz project, then get
; planned path and get custom data from Mech-Vision
; using command 210
; Mech-Mind, 2023-12-25
;---------------------------------------------------
   ;set current tool no. to 1
   BAS(#TOOL,1)
   ;set current base no. to 0
   BAS(#BASE,0)
   ;move to robot home position
PTP HOME Vel=100 % DEFAULT
   ;initialize communication parameters (initialization is required only once)
   MM_Init_Socket("XML_Kuka_MMIND",873,871,60)
   ;move to image-capturing position
LIN camera_capture Vel=1 m/s CPDAT1 Tool[1] Base[0]
   ;trigger Mech-Viz project
   MM_Start_Viz(2,init_jps)
   ;get planned path
   MM_Get_PlanData(0,3,pos_num,vis_pos_num,status)
   ;check whether planned path has been got from Mech-Viz successfully
   IF status<> 2100 THEN
      ;add error handling logic here according to different error codes
      ;e.g.: status=2038 means no point cloud in ROI
      halt
   ENDIF
   ;get gripper control signal list
   MM_Get_Dolist(0,0)
   ;save waypoints of the planned path to local variables one by one
   FOR count=1 TO pos_num
     MM_Get_PlanJps(count,3,pick_point[count],move_type[count],tool_num[count],speed[count])
   ENDFOR
   Xpick_point1=pick_point[1]
   Xpick_point2=pick_point[2]
   Xpick_point3=pick_point[3]
   ;save received custom data
   offset_x=MM_UserData[1]
   offset_y=MM_UserData[2]
   offset_z=MM_UserData[3]
   ;follow the planned path to pick
   ;move to approach waypoint of picking
PTP pick_point1 Vel=50 % PDAT1 Tool[1] Base[0]
   ;move to picking waypoint
PTP pick_point2 Vel=10 % PDAT2 Tool[1] Base[0]
   ;add object grasping logic here
   halt
   ;set gripper control signal
   MM_Set_Dolist(0)
   ;move to departure waypoint of picking
PTP pick_point3 Vel=50 % PDAT3 Tool[1] Base[0]
   ;move to intermediate waypoint of placing
PTP drop_waypoint CONT Vel=100 % PDAT2 Tool[1] Base[0]
   ;move to approach waypoint of placing
LIN drop_app Vel=1 m/s CPDAT3 Tool[1] Base[0]
   ;move to placing waypoint
LIN drop Vel=0.3 m/s CPDAT4 Tool[1] Base[0]
   ;add object releasing logic here, such as "$OUT[1]=FALSE"
   halt
   ;move to departure waypoint of placing
LIN drop_app Vel=1 m/s CPDAT3 Tool[1] Base[0]
   ;move back to robot home position
PTP HOME Vel=100 % DEFAULT
END
