样例程序7：MM_S7_Viz_SwitchTCP
程序解读
以下为MM_S7_Viz_SwitchTCP样例程序的代码及相关解释说明。
| 与MM_S2_Viz_Basic样例相比，本样例主要新增了根据末端工具编号切换工具的功能（加粗部分的代码）。因此，下文不再重复解释与MM_S2_Viz_Basic样例相同部分的代码（详情请参考MM_S2_Viz_Basic样例说明）。 |
1: !-------------------------------- ;
2: !FUNCTION: trigger Mech-Viz ;
3: !project and get planned path, ;
4: !switch TCP according to ;
5: !the tool NO.;
6: !Mech-Mind, 2023-12-25 ;
7: !-------------------------------- ;
8: ;
9: !set current uframe NO. to 0 ;
10: UFRAME_NUM=0 ;
11: !set current tool NO. to 1 ;
12: UTOOL_NUM=1 ;
13: !move to robot home position ;
14:J P[1] 100% FINE ;
15: !initialize communication ;
16: !parameters(initialization is ;
17: !required only once) ;
18: CALL MM_INIT_SKT('8','127.0.0.1',30000,5) ;
19: !move to image-capturing position ;
20:L P[2] 1000mm/sec FINE ;
21: !trigger Mech-Viz project ;
22: CALL MM_START_VIZ(2,10,53) ;
23: !check whether viz project has ;
24: !been triggered successfully ;
25: IF (R[53]<>2103),JMP LBL[99] ;
26: !get planned path, 1st argument ;
27: !(2) means getting pose in TCP ;
28: CALL MM_GET_VIZ(2,51,52,53) ;
29: !check whether planned path has ;
30: !been got from Mech-Viz ;
31: !successfully ;
32: IF R[53]<>2100,JMP LBL[99] ;
33: !save waypoints of the planned ;
34: !path to local variables one ;
35: !by one ;
36: CALL MM_GET_POS(1,60,70,80) ;
37: CALL MM_GET_POS(2,61,71,81) ;
38: CALL MM_GET_POS(3,62,72,82) ;
39: !switch TCP according to the ;
40: !received tool NO. ;
41: IF R[81]=1,JMP LBL[1] ;
42: IF R[81]=2,JMP LBL[2] ;
43: JMP LBL[999] ;
44: ;
45: LBL[1:use tool NO.1] ;
46: !set current tool NO. to 1 ;
47: UTOOL_NUM=1 ;
48: !reset tool signal ;
49: !DO[1]=OFF ;
50: !set a Flag ;
51: F[1]=(ON) ;
52: JMP LBL[3] ;
53: ;
54: LBL[2:use tool NO.2] ;
55: !set current tool NO. to 2 ;
56: UTOOL_NUM=2 ;
57: !reset tool signal ;
58: !DO[2]=OFF ;
59: !set a Flag ;
60: F[2]=(ON) ;
61: JMP LBL[3] ;
62: ;
63: LBL[3:pick path] ;
64: !follow the planned path to pick ;
65: !move to approach waypoint ;
66: !of picking ;
67:L PR[60] 1000mm/sec FINE ;
68: !move to picking waypoint ;
69:L PR[61] 300mm/sec FINE ;
70: !add object grasping logic here, ;
71: !IF (F[1]),DO[1]=(ON) ;
72: !IF (F[2]),DO[2]=(ON) ;
73: PAUSE ;
74: !move to departure waypoint ;
75: !of picking ;
76:L PR[62] 1000mm/sec FINE ;
77: !move to intermediate waypoint ;
78: !of placing ;
79:J P[3] 50% CNT100 ;
80: !move to approach waypoint ;
81: !of placing ;
82:L P[4] 1000mm/sec FINE Tool_Offset,PR[2] ;
83: !move to placing waypoint ;
84:L P[4] 300mm/sec FINE ;
85: !add object releasing logic here, ;
86: !IF (F[1]),DO[1]=(OFF) ;
87: !IF (F[2]),DO[2]=(OFF) ;
88: PAUSE ;
89: !move to departure waypoint ;
90: !of placing ;
91:L P[4] 1000mm/sec FINE Tool_Offset,PR[2] ;
92: !move back to robot home position ;
93:J P[1] 100% FINE ;
94: !reset the Flags ;
95: F[1]=(OFF) ;
96: F[2]=(OFF) ;
97: END ;
98: ;
99: LBL[99:vision error] ;
100: !add error handling logic here ;
101: !according to different ;
102: !error codes ;
103: !e.g.: status=2038 means no ;
104: !point cloud in ROI ;
105: !e.g.: mm_status=3099 means ;
106: !failed to open socket ;
107: PAUSE ;
108: ;
109: LBL[999:label error] ;
110: !add handling logic here if the ;
111: !label is invalid ;

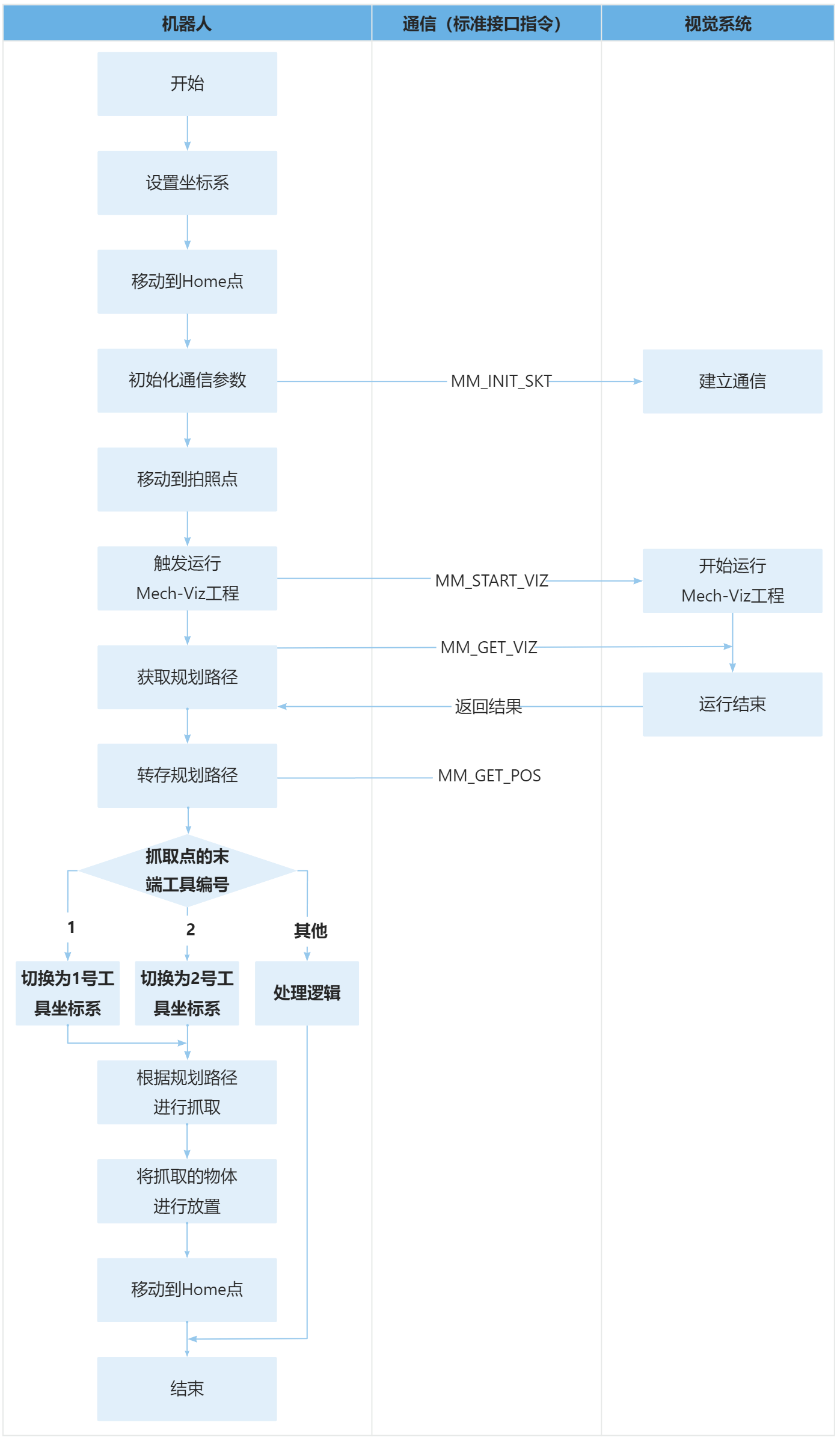

112: PAUSE ;上述样例程序代码对应的流程如下图所示。
下表为新增代码的逻辑解读。
| 流程 | 代码及说明 | ||
|---|---|---|---|
获取规划路径 |
因此，整条指令表示机器人获取Mech-Viz工程返回的规划路径。
|
||
转存规划路径 |
因此，“CALL MM_GET_POS(1,60,70,80)”整条指令表示将第一个路径点的工具位姿、标签和末端工具编号分别转存至指定寄存器。
|
||
根据末端工具编号切换末端工具 |
用户可根据R[81]寄存器值，决定机器人移动到抓取点时所使用的末端工具。上述代码的逻辑说明如下所示。
假设机器人通过DO[1]信号控制末端工具1，通过DO[2]信号控制末端工具2，则程序还需通过F[1]与F[2]两个标志分别建立两者关系。
接下来以末端工具编号1为例，讲解具体抓放流程。
机器人使用末端工具编号2的流程与上述流程类似，此处不再赘述。 |
