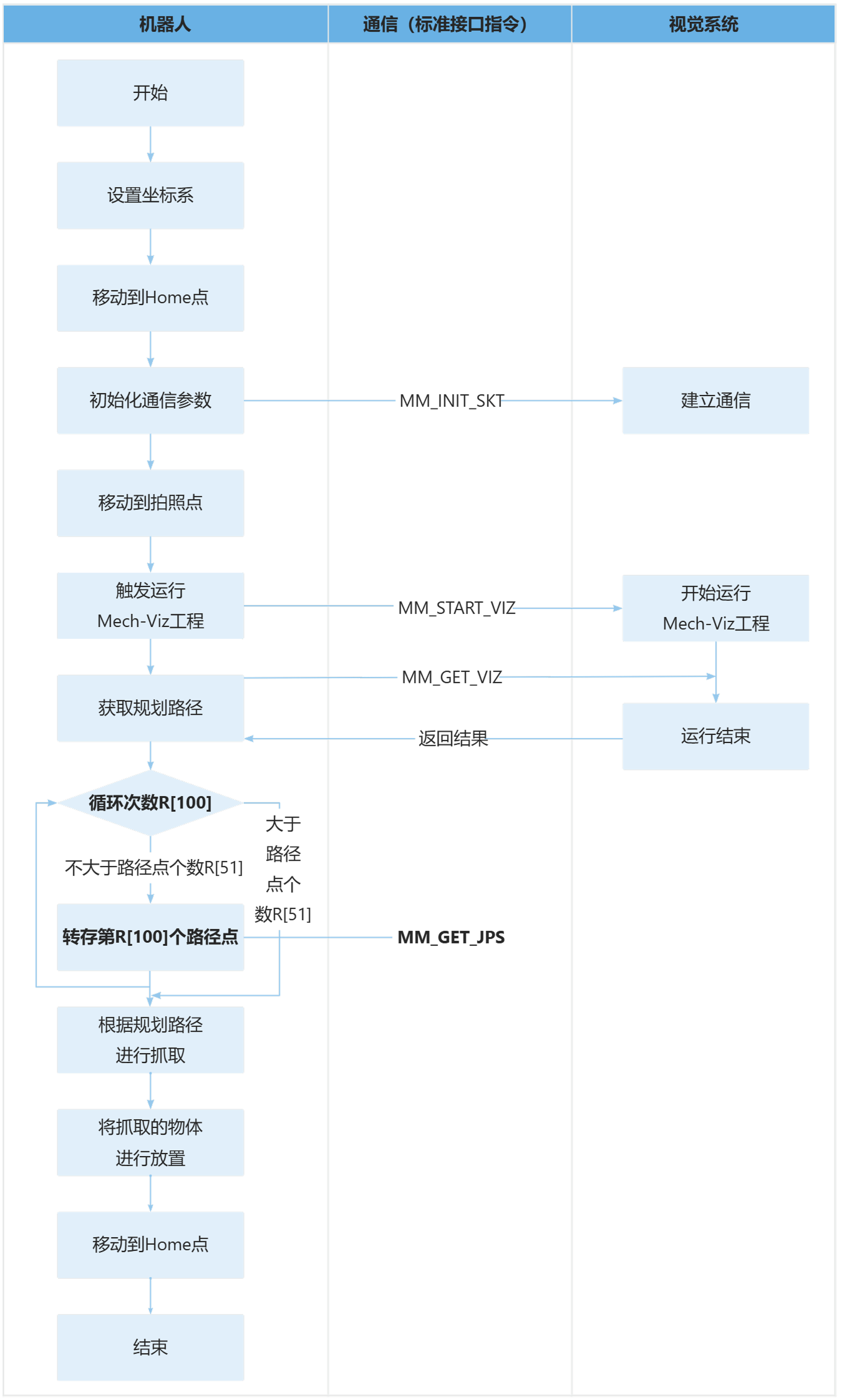

样例程序12：MM_S12_Viz_ForLoop

   1:  !-------------------------------- ;
   2:  !FUNCTION: trigger Mech-Viz ;
   3:  !project and get planned path, ;
   4:  !get poses using for-loop ;
   5:  !structure ;
   6:  !Mech-Mind, 2023-12-25 ;
   7:  !-------------------------------- ;
   8:   ;
   9:  !set current uframe NO. to 0 ;
  10:  UFRAME_NUM=0 ;
  11:  !set current tool NO. to 1 ;
  12:  UTOOL_NUM=1 ;
  13:  !move to robot home position ;
  14:J P[1] 100% FINE    ;
  15:  !initialize communication ;
  16:  !parameters(initialization is ;
  17:  !required only once) ;
  18:  CALL MM_INIT_SKT('8','127.0.0.1',30000,5) ;
  19:  !move to image-capturing position ;
  20:L P[2] 1000mm/sec FINE    ;
  21:  !trigger Mech-Viz project ;
  22:  CALL MM_START_VIZ(2,10,53) ;
  23:  !check whether viz project has ;
  24:  !been triggered successfully ;
  25:  IF (R[53]<>2103),JMP LBL[99] ;
  26:  !get planned path, 1st argument ;
  27:  !(1) means getting pose in JPs ;
  28:  CALL MM_GET_VIZ(1,51,52,53) ;
  29:  !check whether planned path has ;
  30:  !been got from Mech-Viz ;
  31:  !successfully ;
  32:  IF R[53]<>2100,JMP LBL[99] ;
  33:  !save waypoints of the planned ;
  34:  !path to local variables using ;
  35:  !for-loop structure ;
  36:  FOR R[100]=1 TO R[51] ;
  37:  R[101]=59+R[100]    ;
  38:  R[102]=69+R[100]    ;
  39:  R[103]=79+R[100]    ;
  40:  CALL MM_GET_JPS(R[100],R[101],R[102],R[103]) ;
  41:  ENDFOR ;
  42:  !follow the planned path to pick, ;
  43:  !in this example waypoint 2 ;
  44:  !(PR[61]) is picking waypoint ;
  45:  !move to approach waypoint ;
  46:  !of picking ;
  47:J PR[60] 50% FINE    ;
  48:  !move to picking waypoint ;
  49:J PR[61] 10% FINE    ;
  50:  !add object grasping logic here, ;
  51:  !such as "DO[1]=ON" ;
  52:  PAUSE ;
  53:  !move to departure waypoint ;
  54:  !of picking ;
  55:J PR[62] 50% FINE    ;
  56:  !move to intermediate waypoint ;
  57:  !of placing ;
  58:J P[3] 50% CNT100    ;
  59:  !move to approach waypoint ;
  60:  !of placing ;
  61:L P[4] 1000mm/sec FINE Tool_Offset,PR[2]    ;
  62:  !move to placing waypoint ;
  63:L P[4] 300mm/sec FINE    ;
  64:  !add object releasing logic here, ;
  65:  !such as "DO[1]=OFF" ;
  66:  PAUSE ;
  67:  !move to departure waypoint ;
  68:  !of placing ;
  69:L P[4] 1000mm/sec FINE Tool_Offset,PR[2]    ;
  70:  !move back to robot home position ;
  71:J P[1] 100% FINE    ;
  72:  END ;
  73:   ;
  74:  LBL[99:vision error] ;
  75:  !add error handling logic here ;
  76:  !according to different ;
  77:  !error codes ;
  78:  !e.g.: status=2038 means no ;
  79:  !point cloud in ROI ;
  80:  !e.g.: status=3099 means ;
  81:  !failed to open socket ;
  82:  PAUSE ;
