FANUC Automatic Calibration
This topic introduces the process of automatic calibration via Standard Interface communication between the FANUC robot and Mech-Mind Vision System.
Preparation before Calibration
Make preparation before calibration according to the camera mounting method.
-
If the camera is mounted in the Eye to Hand method, see Preparation before Calibration in Automatic Calibration in the Eye-to-Hand Setup.
-
If the camera is mounted in the Eye in Hand method, see Preparation before Calibration in Automatic Calibration in the Eye-in-Hand Setup.
Pre-calibration Configuration
-
Open Mech-Vision, and click the Camera Calibration button in the toolbar. The Configuration before Calibration window will be prompted.
-
Confirm that the checks are performed, click I’ve finished all checks, and then click Next.
-
In the Select how to calibrate window, select the New calibration radio button, and then click the Next button.
-
In the Select calibration task window, select Hand-eye calibration for listed robot from the drop-down list box, click the Select robot model button to select the robot model used by the project, and then click the Next button.
-
In the Select camera setup window, select the camera mounting method in this project, and then click the Next button.
-
In the Calibration method and robot control window, select Automatic and Standard Interface, and then click the Calibrate button to go to the Calibration window.
Calibration Procedure
Conduct calibration according to the camera mounting method.
-
If the camera is mounted in the Eye to Hand method, see Calibration Procedure in Automatic Calibration in the Eye-to-Hand Setup.
-
If the camera is mounted in the Eye in Hand method, see Calibration Procedure in Automatic Calibration in the Eye-in-Hand Setup.
Precautions
-
When you proceed to the third calibration step (connecting the robot) and you click Start interface service button in the Connect the robot window, the button will change to Waiting for the robot to connect.... If the interface service is already started, you do not need to perform this operation.
-
When the button displays Waiting for the robot to connect..., perform the following steps on the robot side. Then, continue the calibration in the software.
1. Select and Modify Calibration Program
-
After loading the program files, press SELECT key on the teach pendant to enter the program selection interface. Select MM_AUTO_CALIB using the arrow keys and then press ENTER to open the program.
-
Set the parameters of the function CALL MM_INIT_SKT in the program MM_AUTO_CALIB. This function has four parameters. Select one of the parameters by using the arrow keys, press F5 to select CHANGE, and then change the value as needed.
-
Parameter 1: client port number (1-8)
-
Parameter 2: IP address of the IPC
-
Parameter 3: IPC (server) port number, which should be the same as the setting in Mech-Vision
-
Parameter 4: timeout (min)
-
2. Teach Calibration Start Point
-
After opening the program, press the STEP key on the teach pendant to switch to Step mode. Then the Step icon on the screen will turn yellow.
-
Press and hold either one of the deadman switches on the back of the teach pendant. Move the robot to the start point for calibration.
-
Move the cursor to the second line using the arrow keys, and press the SHIFT and FWD keys at the same time to run the command on the second line. Then the user reference frame 0 will be used.
-
Move the cursor to the third line, and press the SHIFT and FWD keys at the same time to run the command on the third line. Then the tool reference frame 1 will be used.
-
Select [100] using the arrow keys, and press F5 to select POSITION. Then, press F5 again to select REPRE. Select Cartesian using the arrow keys and press ENTER to confirm.
-
Select CONTINUE in the dialogue box below, and then press F4 to select DONE.
-
Select the line number of line 5. Then, press SHIFT and F5 (to select TOUCHUP) together. When the teach pendant displays the message “Position has been recorded to PR[100]”, the robot’s pose is stored in PR[100].
-
Press STEP on the teach pendant to exit the Step mode. Then the Step icon on the screen will turn grey.
3. Run Calibration Program
-

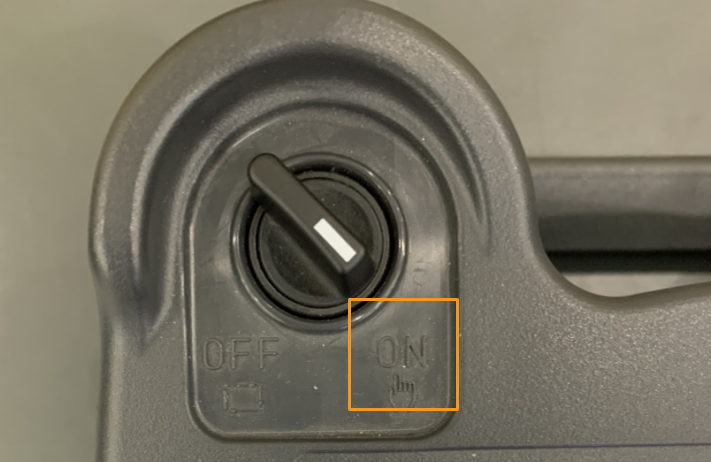

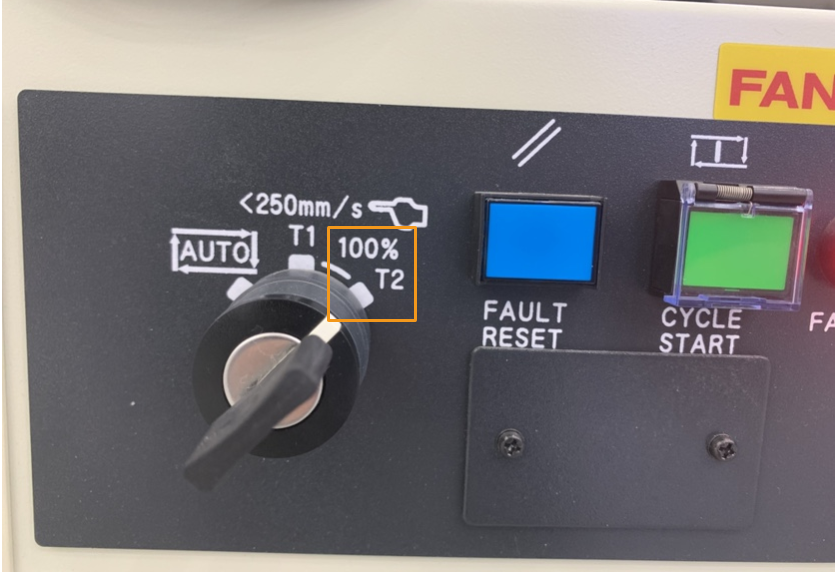

Switch the robot to the automatic mode: Turn the switch of the teach pendant to OFF, and turn the switch of the controller to AUTO.
-
Press RESET on the teach pendant to dismiss all alarms. Then, adjust the robot speed to between 10% and 20% with the keys +% and -%.
-
Press the green button on the controller to auto-run the calibration program.
-
When, in the Configuration window in Mech-Vision, the current status changes to connected and the button Waiting for the robot to connect changes to Disconnect robot, click Next. Next, proceed to the fourth step of the calibration process (i.e. setting the movement path).
Change the Extrinsic Parameter File
If the camera’s extrinsic parameter file has been used by a Mech-Vision project, you need to change the extrinsic parameter file used by the Mech-Vision project to a new one after you finish the hand-eye calibration.
-
Select the Capture Images from Camera Step.
-
In the Step Parameters panel, click
of the Calibration Parameter Group parameter, and select the newly calibrated extrinsic parameter file.
Calibration-Related Status Codes
During automatic calibration via Standard Interface communication, the vision system returns data together with the status code to the robot. Status codes, which are categorized into error codes and normal status codes, indicate the command execution status. Calibration related status codes are listed in the tables below.
