This topic provides selection guidance and detailed descriptions for the accessories of the Mech-Eye Industrial 3D Camera.

Accessory Selection Guide

After selecting the appropriate camera model, you also need to choose the camera accessories based on actual requirements.

  • 1 Power module

  • 2 Camera Ethernet cable

  • 3 Calibration board

The power module is used to power the camera. Mech-Mind offers two power supply options: 24 VDC power supply and power adapter supply. Please choose one of the solutions based on your actual requirements. In industrial applications, it is recommended to use the 24 VDC power supply solution.

The camera Ethernet Cable is primarily used to connect the camera to an industrial PC (IPC) or other network devices, enabling data transmission. The camera must use the Ethernet cable provided by Mech-Mind. Based on your actual needs, you can choose the appropriate connector type and cable length. For detailed selection guidance, please refer to Camera Ethernet Cable Selection.

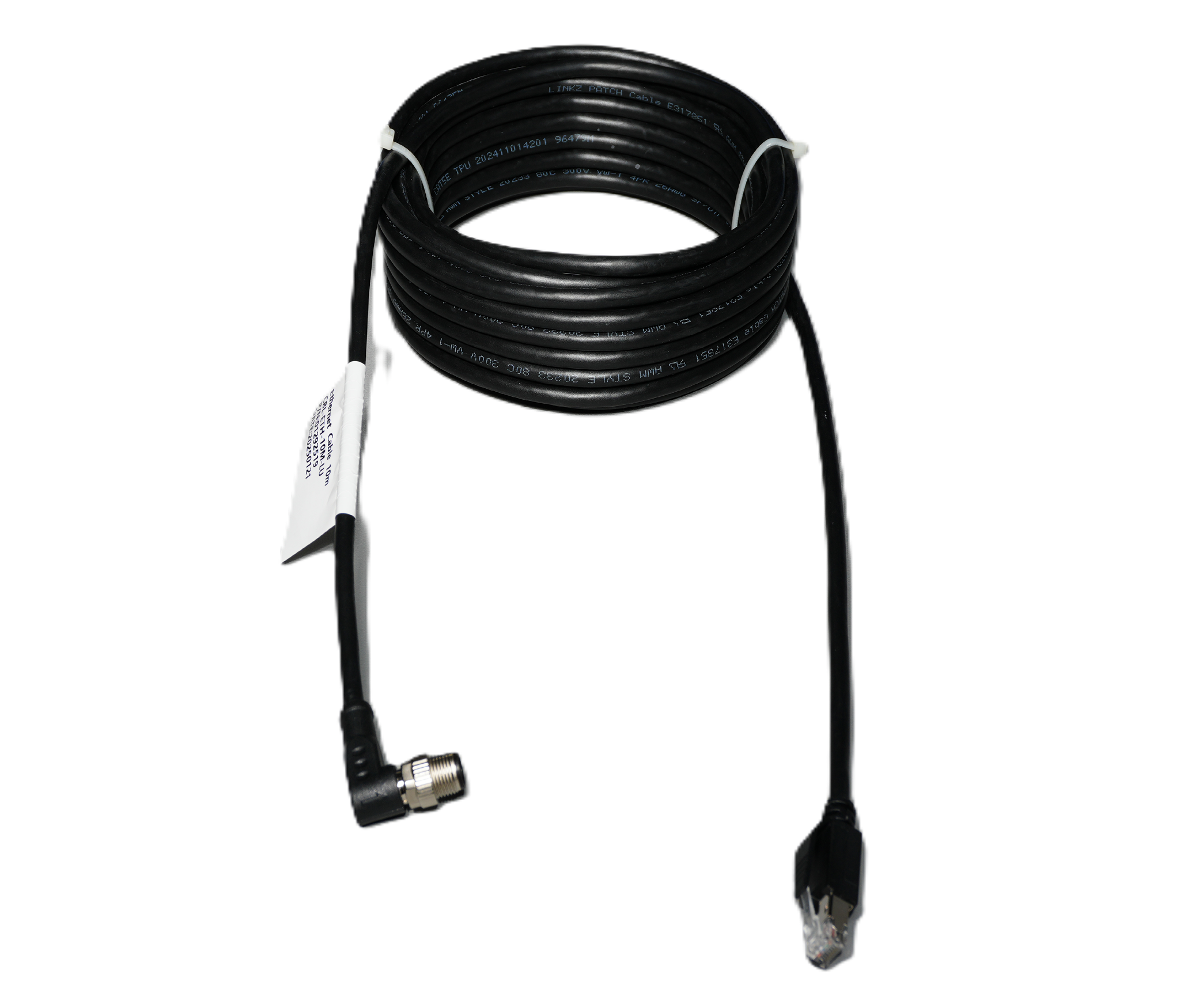

ethernet cable

The calibration board is primarily used for camera intrinsic parameter check, intrinsic parameter correction, and hand-eye calibration (suitable for 3D Robot Guidance scenarios). For detailed selection guidance, please refer to Calibration Board Selection.

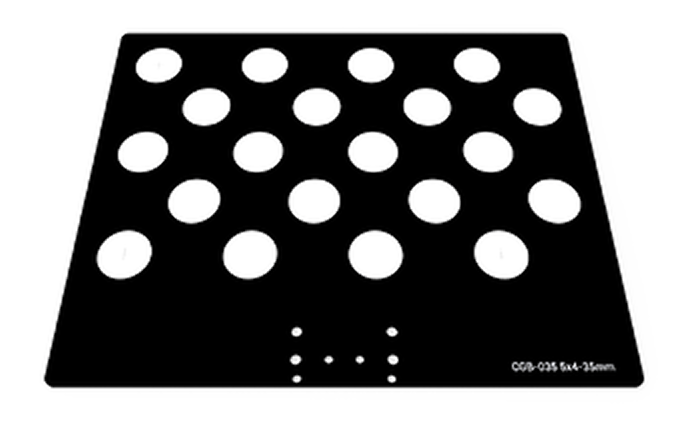

calibration board

If the camera is used in scenarios such as 3D robot guidance or 3D measurement and inspection, other accessories, such as an IPC and a license dongle (software licensing device), should also be selected based on project requirements. For detailed information, please refer to Select Other Accessories.

Power Module Selection

Please choose the appropriate power supply solution to determine the power module.

24 VDC Power Supply Solution

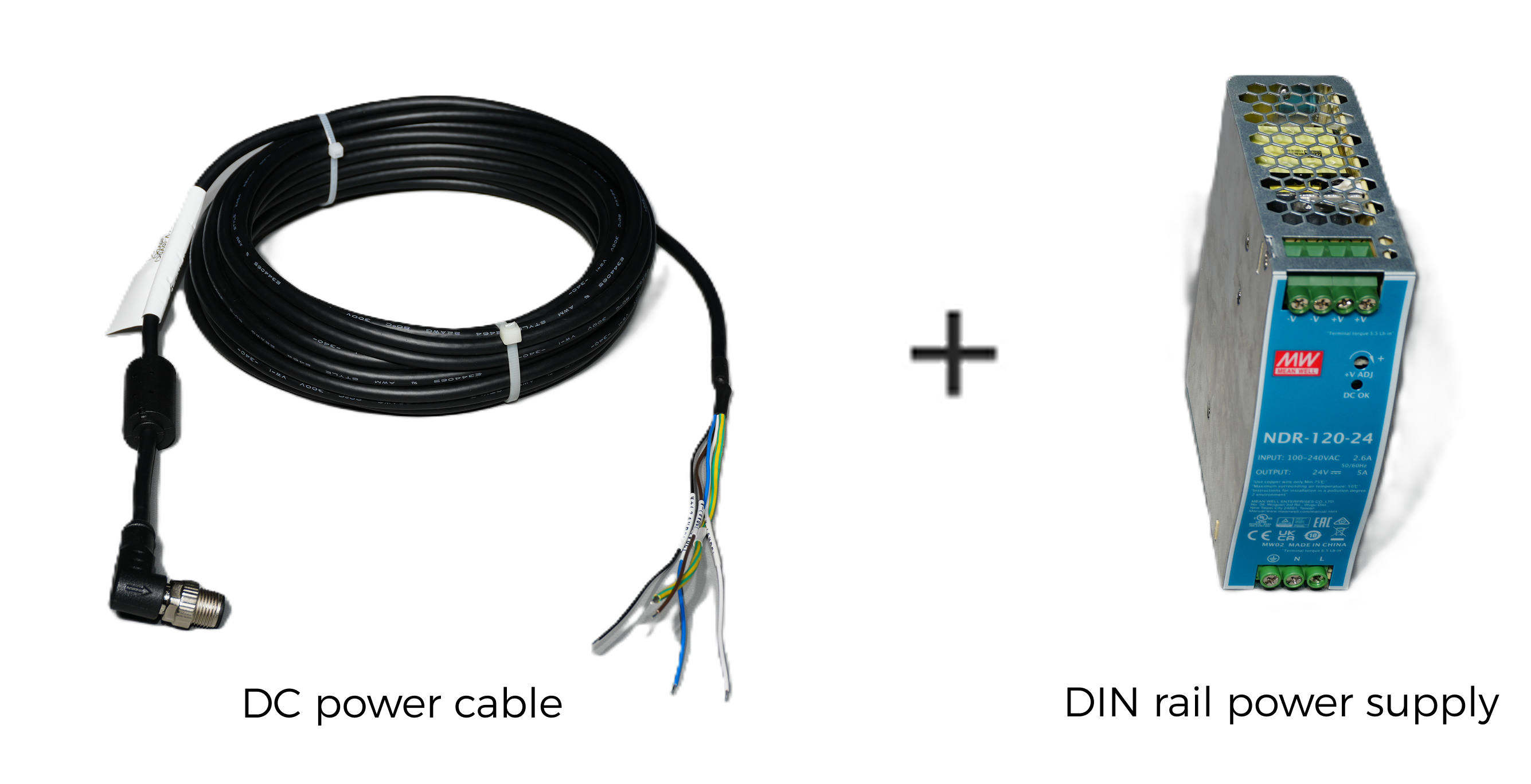

In the 24 VDC power supply solution, the power module consists of the camera’s DC power cable and a DC power supply device (such as a DIN rail power supply).

DC Power Cable and DC Power Extension Cable

It is recommended to use the cables provided by Mech-Mind for cameras. In scenarios where installation methods such as track chains or dresspacks are used, DC power extension cables can be used for segmented wiring. Mech-Mind offers DC power cables and DC power extension cables with M12 connectors in two types: straight connector and right-angle connector, and with various length options available for selection. Please choose the appropriate model of the DC power cable and DC extension power cable based on your requirements.

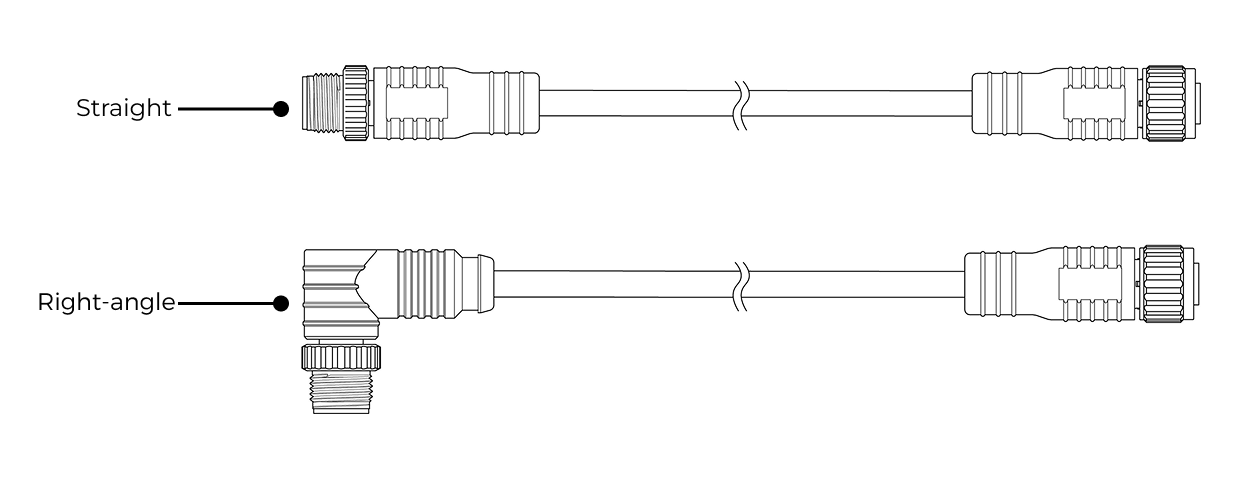

dc power extension cable connector type

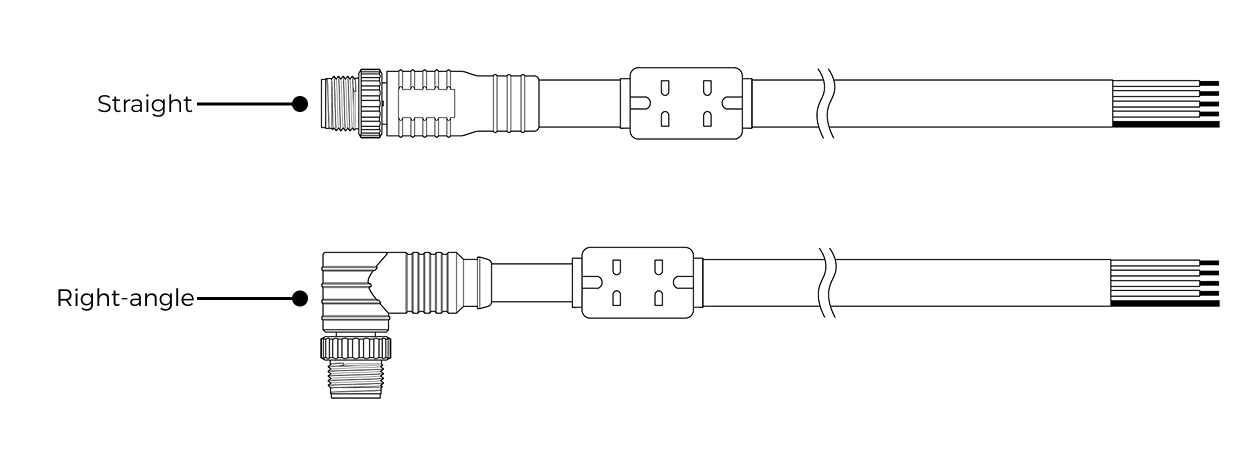

dc power cable connector type

DC power extension cable

DC power cable

The following table lists the basic information of the various models of DC power cables and DC power extension cables provided by Mech-Mind.

DC power cable DC power extension cable

Model

Connector type

Length

Model

Connector type

Length

CBL-PWR-5M

Straight connector

5 m

CBL-PWR-EXT-5M

Straight connector

5 m

CBL-PWR-10M

Straight connector

10 m

CBL-PWR-EXT-7M

Straight connector

7 m

CBL-PWR-15M

Straight connector

15 m

CBL-PWR-EXT-10M

Straight connector

10 m

CBL-PWR-20M

Straight connector

20 m

CBL-PWR-EXT-0.2M-LU

Right-angle connector

0.2 m

CBL-PWR-30M

Straight connector

30 m

CBL-PWR-EXT-5M-LU

Right-angle connector

5 m

CBL-PWR-5M-LU

Right-angle connector

5 m

CBL-PWR-EXT-7M-LU

Right-angle connector

7 m

CBL-PWR-10M-LU

Right-angle connector

10 m

CBL-PWR-EXT-10M-LU

Right-angle connector

10 m

CBL-PWR-15M-LU

Right-angle connector

15 m

CBL-PWR-20M-LU

Right-angle connector

20 m

CBL-PWR-30M-LU

Right-angle connector

30 m

For more information about DC power cables and DC power extension cables, see Technical Specifications of DC Power Cable and Technical Specifications of DC Power Extension Cable.

DC Power Supply Device

For the DC power supply device, it is recommended to use the DIN rail power supply provided by Mech-Mind. You may also choose other DIN rail power supplies or DC power devices that comply with the relevant safety standards. The following table lists the basic information about the DIN rail power supply provided by Mech-Mind.

Model NDR-120-24 EDR-120-24 ^*^

Output

DC voltage

24 V

24 V

Rated current

5 A

5 A

Rated power

120 W

120 W

Input

Voltage range

90–264 VAC

90–264 VAC

  • The DIN rail power supply model EDR-120-24 is only sold in India.

  • The DIN rail power supply provided by Mech-Mind does not include an AC power cable and must be prepared separately.

  • For detailed information about the DIN rail power supply, please refer to Technical Specifications of DIN Rail Power Supply.

  • When installing and using the DIN rail power supply, carefully read Usage Notes.

Power Adapter Supply Solution

In the power adapter supply solution, the power module consists of the power adaptor and the AC power cable. Mech-Mind provides whole sets of power adapter and AC power cable in different lengths. Please choose the appropriate model according to your required length.

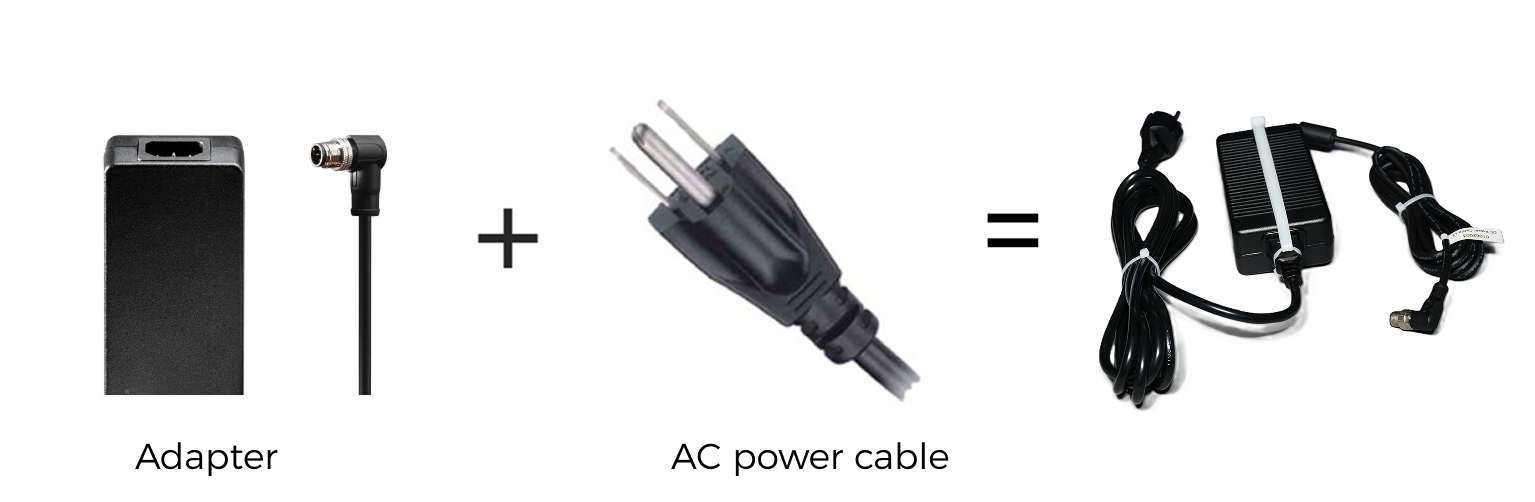

power adaptor power supply en

The following table lists the basic information of the various models of the power adapters and AC power cables provided by Mech-Mind.

Image Model Adapter’s cable length AC power cable length Total length

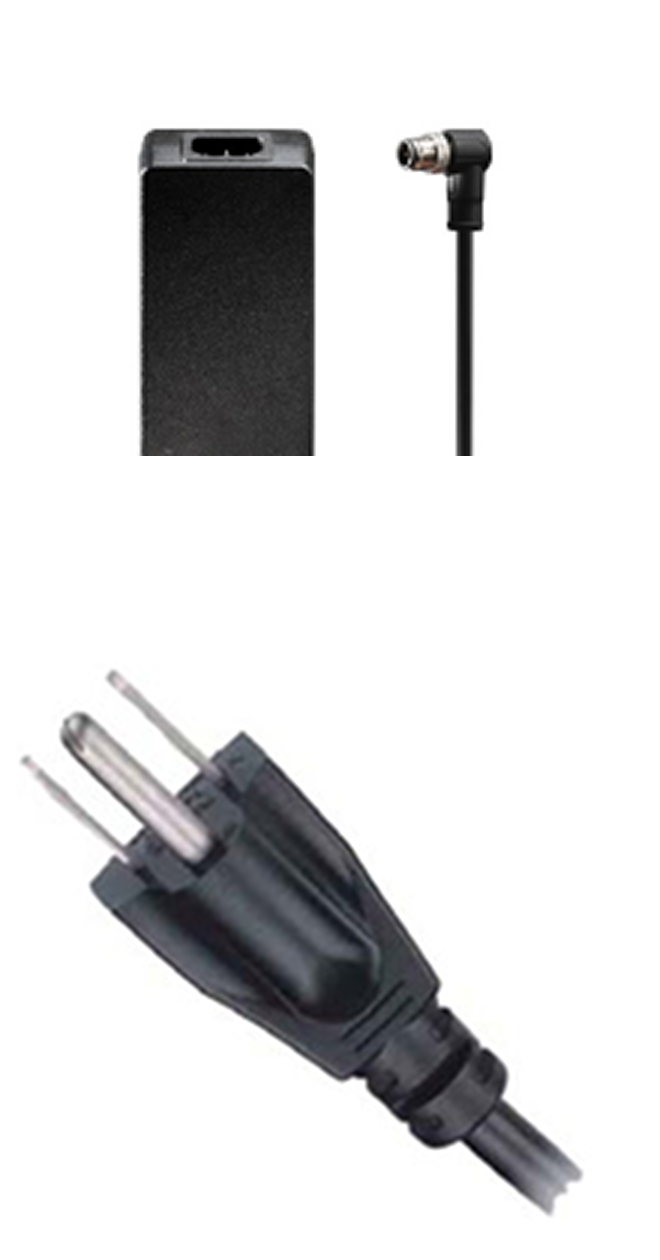

power adapter us

L6L1-3 US-DC24V-M12-4PIN Adapter Cable (American standard plug)

3 m

3 m

6 m

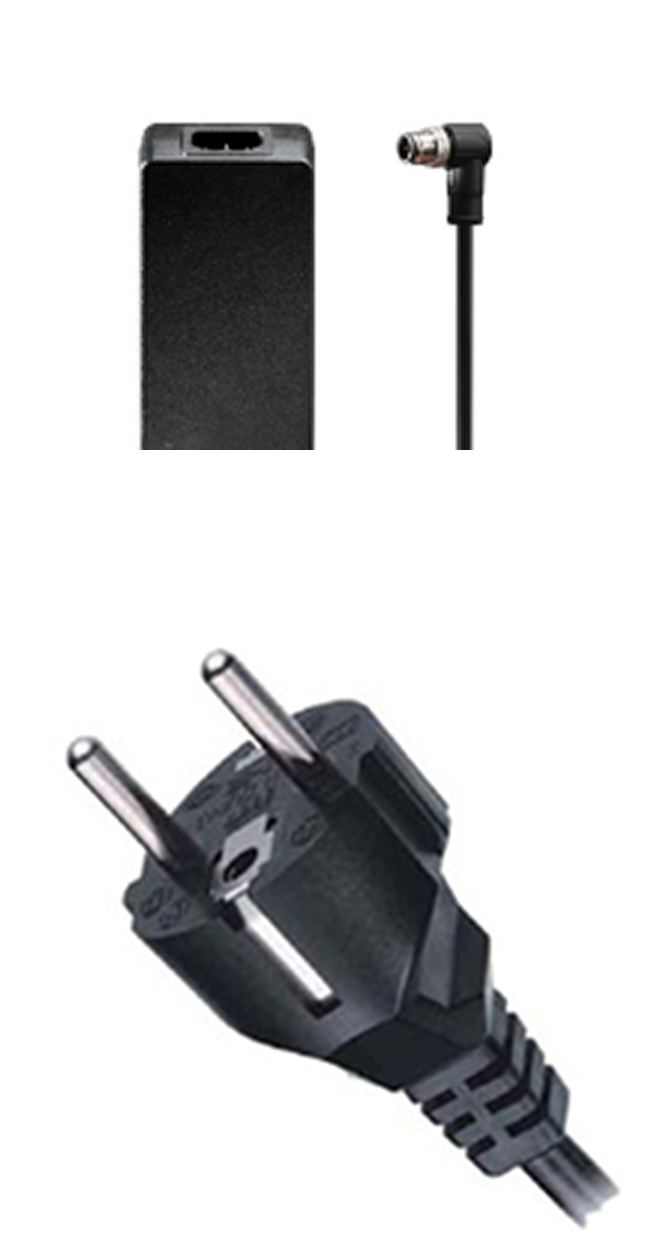

power adapter eu

L6L1-3 EU-DC24V-M12-4PIN Adapter Cable (European standard plug)

3 m

3 m

6 m

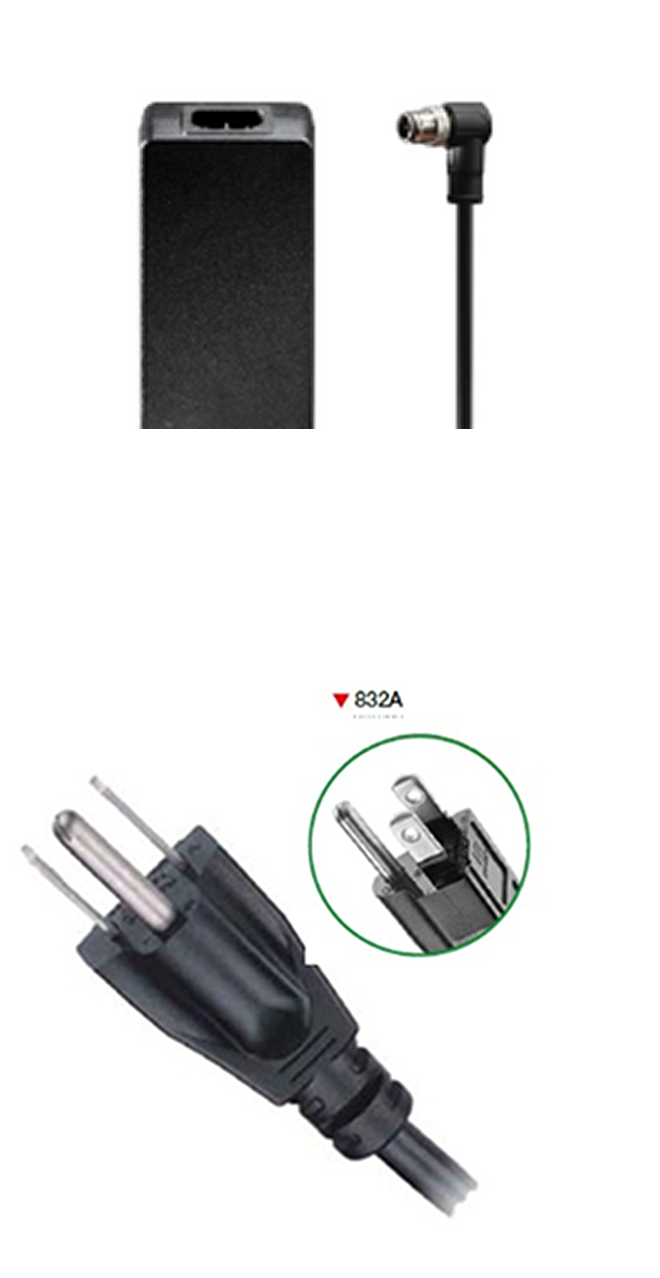

power adapter jp

L6L1-3 JP-DC24V-M12-4PIN Adapter Cable (Japanese standard plug)

3 m

3 m

6 m

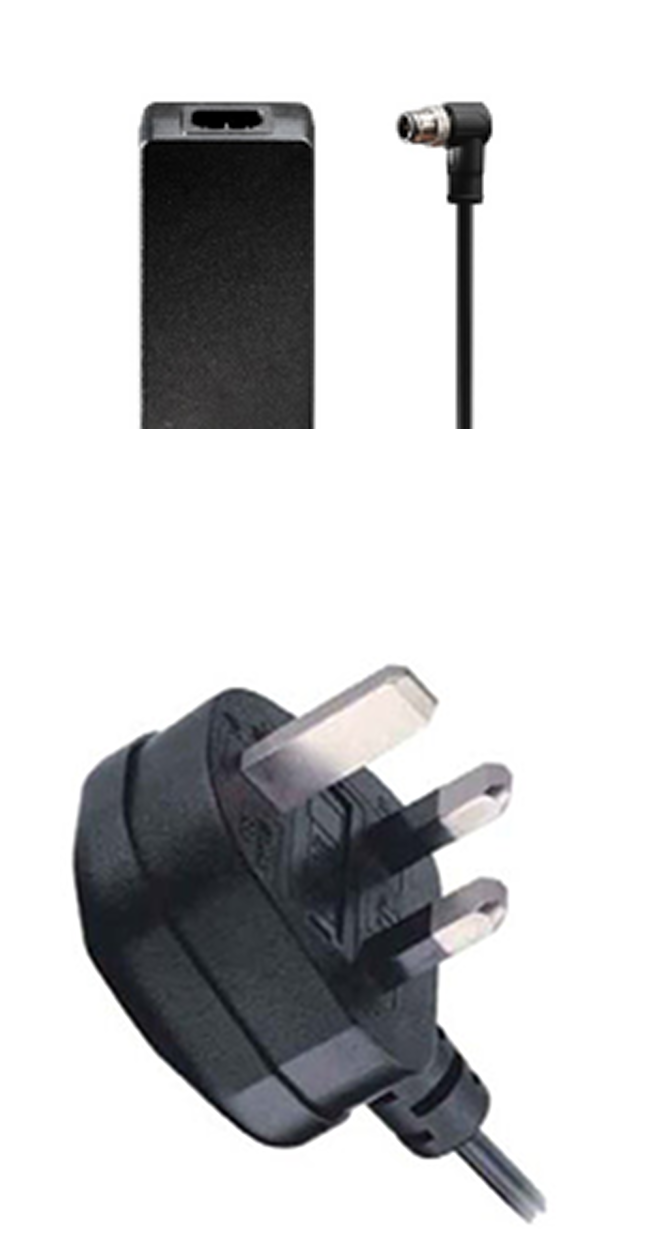

power adapter uk

L6L1-3 UK-DC24V-M12-4PIN Adapter Cable (UK standard plug)

3 m

3 m

6 m

Camera Ethernet Cable Selection

It is recommended to use the cables provided by Mech-Mind for cameras. In scenarios where installation methods such as track chains or dresspacks are used, DC power extension cables can be used for segmented wiring. Mech-Mind offers Ethernet cables and Ethernet extension cables with M12 connectors in two types: straight connector and right-angle connector, and with various length options available for selection. Please choose the appropriate model of the Ethernet cable and Ethernet extension cable based on your requirements.

ethernet extension cable connector type

ethernet cable connector type

Ethernet extension cable

Ethernet cable

The following table lists the basic information about the various models of Ethernet cables and Ethernet extension cables provided by Mech-Mind.

Ethernet cable Ethernet extension cable

Model

Connector type

Length

Model

Connector type

Length

CBL-ETH-5M

Straight connector

5 m

CBL-ETH-EXT-5M

Straight connector

5 m

CBL-ETH-10M

Straight connector

10 m

CBL-ETH-EXT-7M

Straight connector

7 m

CBL-ETH-15M

Straight connector

15 m

CBL-ETH-EXT-10M

Straight connector

10 m

CBL-ETH-20M

Straight connector

20 m

CBL-ETH-EXT-0.2M-LU

Right-angle connector

0.2 m

CBL-ETH-30M

Straight connector

30 m

CBL-ETH-EXT-5M-LU

Right-angle connector

5 m

CBL-ETH-5M-LU

Right-angle connector

5 m

CBL-ETH-EXT-7M-LU

Right-angle connector

7 m

CBL-ETH-10M-LU

Right-angle connector

10 m

CBL-ETH-EXT-10M-LU

Right-angle connector

10 m

CBL-ETH-15M-LU

Right-angle connector

15 m

CBL-ETH-20M-LU

Right-angle connector

20 m

CBL-ETH-30M-LU

Right-angle connector

30 m

For more information about Ethernet cables and Ethernet extension cables, see Technical Specifications of Ethernet Cable and Technical Specifications of Ethernet Extension Cable.

Calibration Board Selection

Select the proper calibration board according to the camera model and the actual working distance.

To determine the camera model, please refer to How to Read Camera Serial Number. If you still cannot determine the camera model, contact Mech-Mind Technical Support.

Camera model Working distance (mm) Recommended model

UHP-140-GL

300±20

OCB-005

NANO-GL

300–600

CGB-020

NANO ULTRA-GL

250–500

CGB-020

PRO S-GL

500–800

CGB-020

800–1000

CGB-035

PRO M-GL

1000–1500

CGB-035

1500–2000

CGB-050

LSR S-GL

500–1000

CGB-035

1000–1500

CGB-050

LSR L-GL

1200–3000

CGB-050

DEEP-GL

1200–3500

CGB-050

PRO XS-GL

300–600

CGB-020

Log S

500–800

CGB-020

800–1000

CGB-035

Log M

1000–1500

CGB-035

1500–2000

CGB-050

Laser L Enhanced

1500–3000

CGB-050

For detailed information about the calibration board, refer to Calibration Board.
