DC power & I/O cable
Physical Specifications
Model |
Straight connector
|
Right-angle connector
|
|---|---|---|
Color |
Black |
|
Jacket material |
PVC |
|
Outer diameter |
11.5 mm |
|
Minimum bending radius |
≥92 mm |
|
P1 connector |
M16, straight connector or right-angle connector |
|
P2 connector |
15‑core loose cable (including housing ground wire) |
|
Cable construction |
UL20276: 5Px26AWG+1Px22AWG+2Cx22AWG Black drag chain OD: 11.5mm |
|
Minimum bend radius |
92 mm |
|
Bending cycles |
>=10 million |
|
Torsion cycles |
>=3 million |
|
Maximum operating voltage |
30V DC |
|
Operating temperature |
-20–80°C |
|
Safety |
RoHS: compliant
|
|
Applicable Laser Profiler Models |
LNX-7030-GL LNX-7045-GL LNX-7080-GL LNX-7150-GL LNX-7300-GL LNX-7600-GL |
|
Dimensions
Unit: mm
|
CBLLNX-PWR-IOE |
|
CBLLNX-PWR-IOE-LU |
| Model | L | Tolerance |
|---|---|---|
CBLLNX-PWR-IOE-5M |
5 m |
± 40 mm |
CBLLNX-PWR-IOE-10M |
10 m |
± 80 mm |
CBLLNX-PWR-IOE-20M |
20 m |
± 150 mm |
CBLLNX-PWR-IOE-30M |
30 m |
± 200 mm |
CBLLNX-PWR-IOE-5M-LU |
5 m |
± 40 mm |
CBLLNX-PWR-IOE-10M-LU |
10 m |
± 80 mm |
CBLLNX-PWR-IOE-20M-LU |
20 m |
± 150 mm |
CBLLNX-PWR-IOE-30M-LU |
30 m |
± 200 mm |
Connectors
|

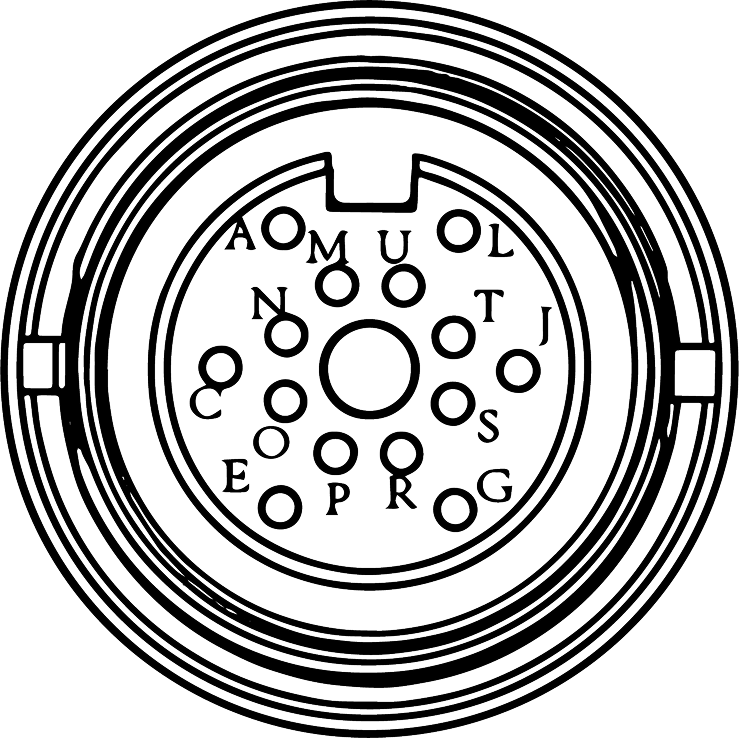

P1 Mating Face |
| P1 | P2 Label |
|---|---|
L |
-V (0 VDC) |
A |
+V (24 VDC) |
G |
Trigger_In- |
J |
Trigger_In+ |
E |
Out_1+ |
C |
Out_1- |
M |
CONFIG_IO+ |
N |
CONFIG_IO- |
O |
Encoder_B+ |
P |
Encoder_B- |
R |
Encoder_A+ |
S |
Encoder_A- |
T |
Out_2+ |
U |
Out_2- |
Housing |
PE |
|
During on‑site wiring, ensure reliable electrical continuity between the power I/O cable shield and the connector housing. Connect the housing to PE (Protective Earth). Floating connection is prohibited. |
