Laser Profiler Models
This topic introduces different laser profiler models, as well as the characteristics and suitable applications of each model.
Comparison of Key Specifications
The currently available models of the sensor head of the laser profiler include:
-
LNX-8000 series: LNX-8030-GL, LNX-8080-GL and LNX-8300-GL (used with the LNX-8000C-GL controller)
-
LNX-7500 series: LNX-7530-GL, LNX-7580-GL, LNX-75150-GL and LNX-75300-GL (used with the LNX-7500C-GL controller)
-
LNX-7000Series: LNX-7030-GL, LNX-7045-GL, LNX-7080-GL, LNX-7150-GL, LNX-7300-GL, LNX-7600-GL
The following table provides the comparison of key specifications of the sensor head models. For all technical specifications of the laser profiler, please refer to LNX-7500 Series and LNX-8000 Series.
Series |
Model |
Data points per profile |
Scan rate(1) |
Reference distance (RD) |
Measurement range |
X-axis resolution(2) |
Lens inclination(3) |
|||
|---|---|---|---|---|---|---|---|---|---|---|
Z-axis |
X-axis |
|||||||||
Near |
Reference distance (RD) |
Far |
||||||||
LNX-8000 |
LNX-8030-GL |
4096 |
3.3–15 kHz |
78 mm |
30 mm |
33 mm |
35 mm |
37 mm |
9 μm |
30° |
LNX-8080-GL |
250 mm |
100 mm |
76 mm |
89 mm |
96 mm |
23.5 μm |
22° |
|||
LNX-8300-GL |
325 mm |
305 mm |
230 mm |
310 mm |
430 mm |
105 μm |
19° |
|||
LNX-7500 |
LNX-7530-GL |
3200 |
2–10 kHz |
78 mm |
25 mm |
31 mm |
33 mm |
35 mm |
11 μm |
30° |
LNX-7580-GL |
250 mm |
76 mm |
72 mm |
82 mm |
89 mm |
28 μm |
22° |
|||
LNX-75150-GL |
228 mm |
135 mm |
123 mm |
150 mm |
167 mm |
52 μm |
25° |
|||
LNX-75300-GL |
325 mm |
295 mm |
219 mm |
300 mm |
422 mm |
132 μm |
19° |
|||
LNX-7000 |
LNX-7030-GL |
3200 |
Mode 1: 20\~49 kHz; Mode 2: 13.5~49 kHz; Mode 3: 2~49 kHz |
60 mm |
21 mm |
30 mm |
33 mm |
37 mm |
11μm (9.5μm~11.5μm) |
30° |
LNX-7045-GL |
65 mm |
31 mm |
39 mm |
45 mm |
52 mm |
15μm (12μm~16μm) |
30° |
|||
LNX-7080-GL |
135 mm |
70 mm |
68 mm |
80 mm |
97 mm |
25μm (21μm~30μm) |
25° |
|||
LNX-7150-GL |
160 mm |
140 mm |
120 mm |
152 mm |
210 mm |
50μm (38μm~66μm) |
27° |
|||
LNX-7300-GL |
300 mm |
310 mm |
185 mm |
254 mm |
400 mm |
80μm (58μm~125μm) |
21° |
|||
LNX-7600-GL |
500 mm |
650 mm |
334 mm |
470 mm |
825 mm |
150μm (105μm~258μm) |
23° |
|||
(1) This is the range of the maximum scan rate reachable by the laser profiler when the Z-Axis Height for the ROI is set to different values.

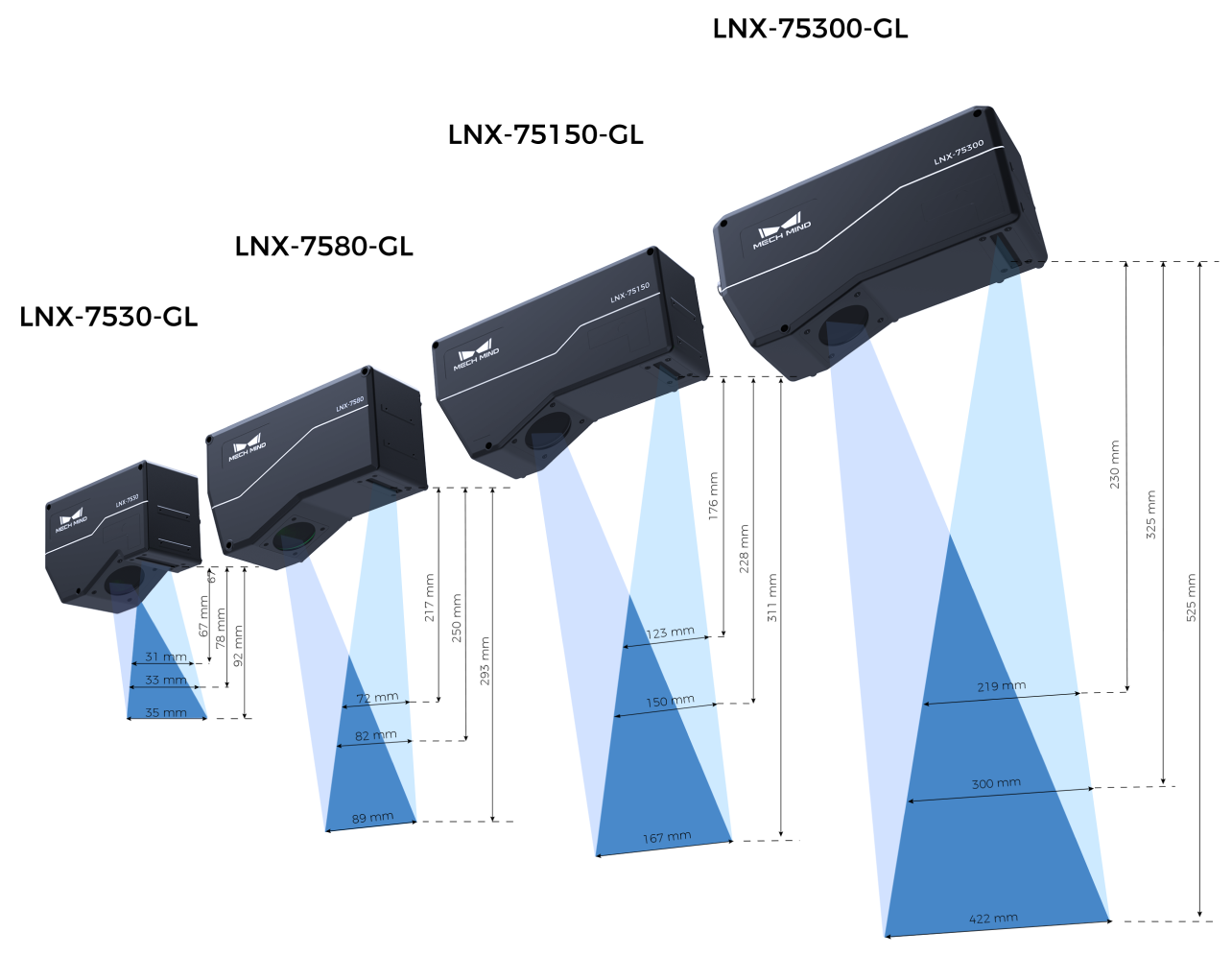

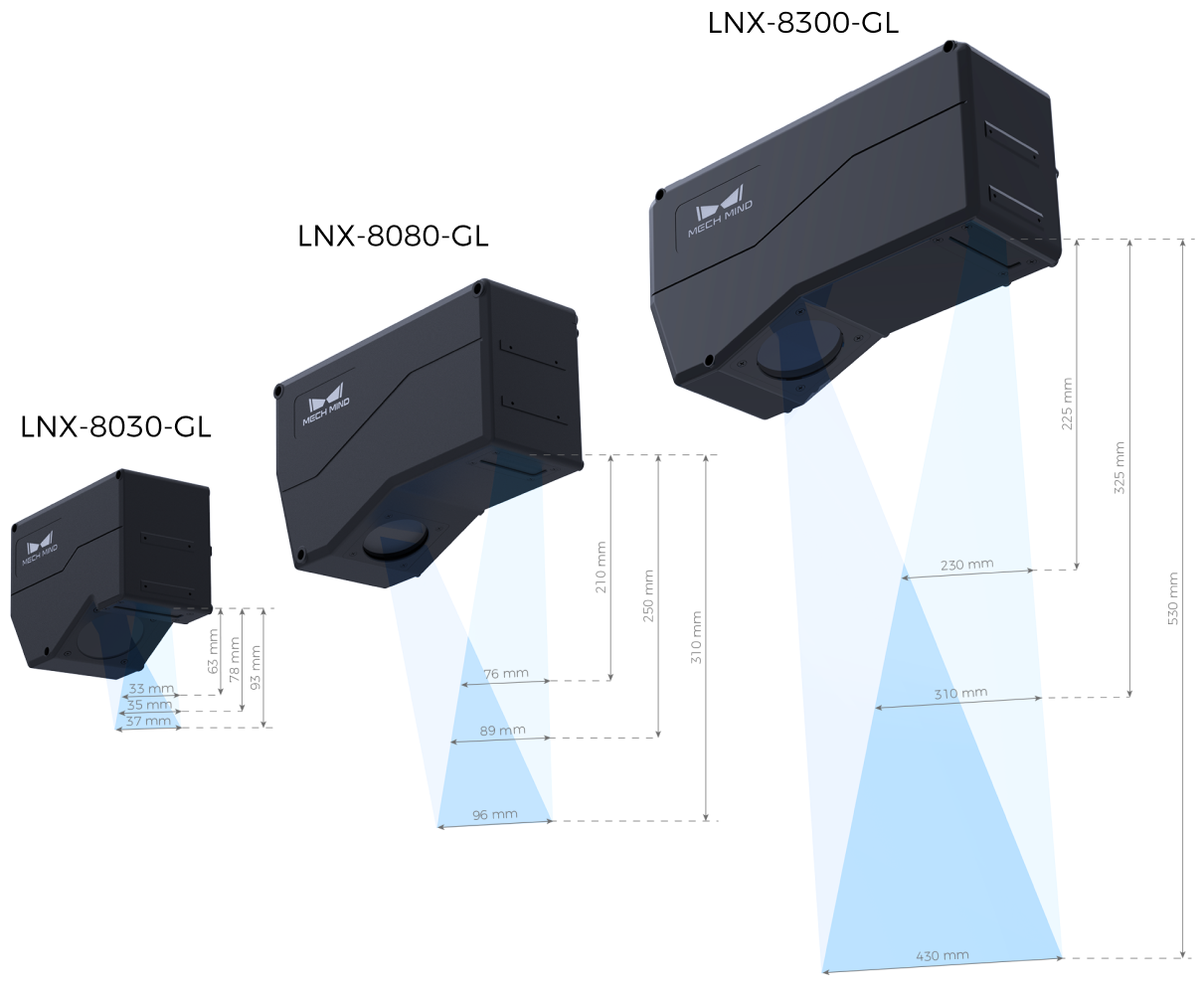

(2) Please refer to Comparison of FOV below.
(3) Calculation method: X-axis resolution = Far-side X-axis measurement range ÷ Data points per profile.
(4) Please refer to the diagrams in the hardware user manual for each series.
