Failed to Call setDigitalOut of HYUNDAI_XX

You are currently viewing the documentation for a pre-release version (2.2.0). To access documentation for other versions, click the "Switch Version" button located in the upper-right corner of the page.

■ If you're unsure about the version of the product you are using, please contact Mech-Mind Technical Support for assistance.

Problem

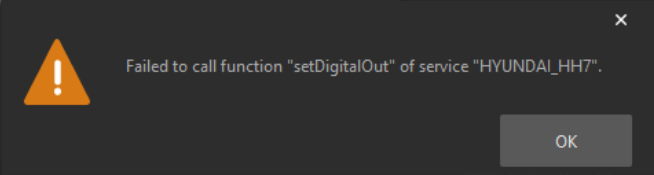

During Master-Control communication, the Hyundai robot reports the error shown below at the Set DO Step in the Mech-Viz project, although no error is recorded in the log file.

Possible Causes

The UDP protocol used by the Hyundai robot responds relatively slowly, which may cause it to exceed the robot service timeout set in Mech-Viz.

Solutions

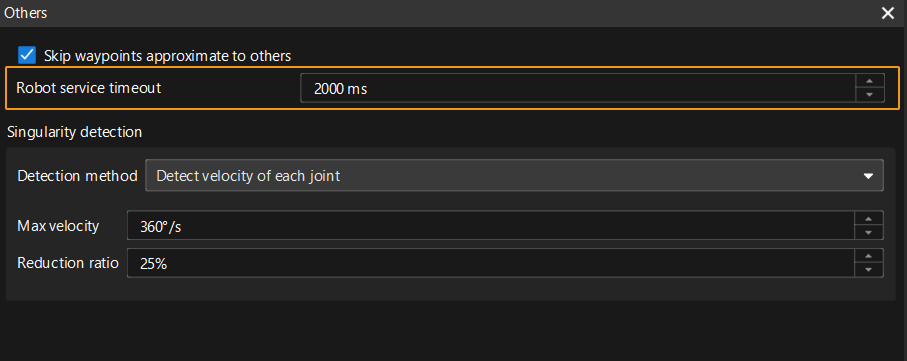

In the lower-right corner of Mech-Viz, click the Others tab and appropriately increase the robot service timeout, for example, to 3000 ms.

Failed to Call setDigitalOut of HYUNDAI_XX
