Camera Power and I/O Cable (M12-A Male Connector)
Physical Specifications
Basic parameters |
Model |
CBL-PWR-M12A12-XX-5M CBL-PWR-M12A12-XX-15M |
CBL-PWR-M12A12-OPEN-5M CBL-PWR-M12A12-OPEN-15M |
|---|---|---|---|
Product category |
Power I/O cable |
||
Color |
Black |
||
End A connector |
M12-A aviation male connector |
||
End B connector |
DC5.5 female RJ45 6-core flying leads |
RJ45 8-core flying leads |
|
Structure |
Cable structure |
24AWG*3P+24AWG*8C+F |
|
Harness diameter |
6.5mm |
||
Outer jacket material |
PVC |
||
Connector durability |
≥750 mating cycles |
||
Minimum bend radius |
65mm |
||
Application scenario |
Dynamic |
||
Drag chain cycles |
10 million cycles |
||
Packaging method |
Individual packaging bag |
||
Hardware |
Maximum operating voltage |
30 VDC |
|
Operating temperature |
-20 to 80℃ |
||
Safety |
Compliant with RoHS 2.0 standard |
||
Applicable camera models |
AIC-Lite-016M-07M-W-GL AIC-Lite-016M-16M-W-GL |
||
Dimensions
Unit: mm
|

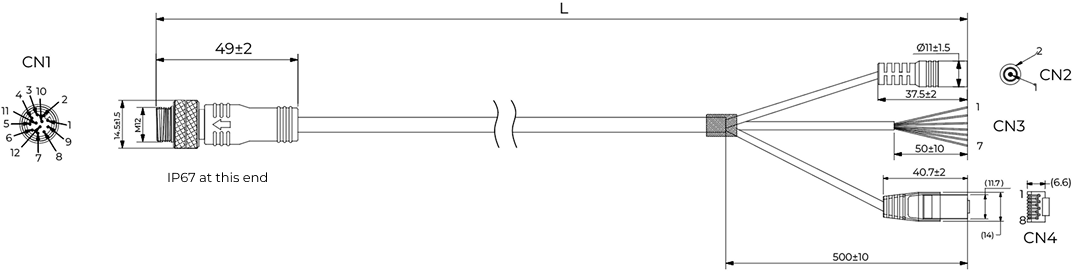

CBL-PWR-M12A12-XX |
|

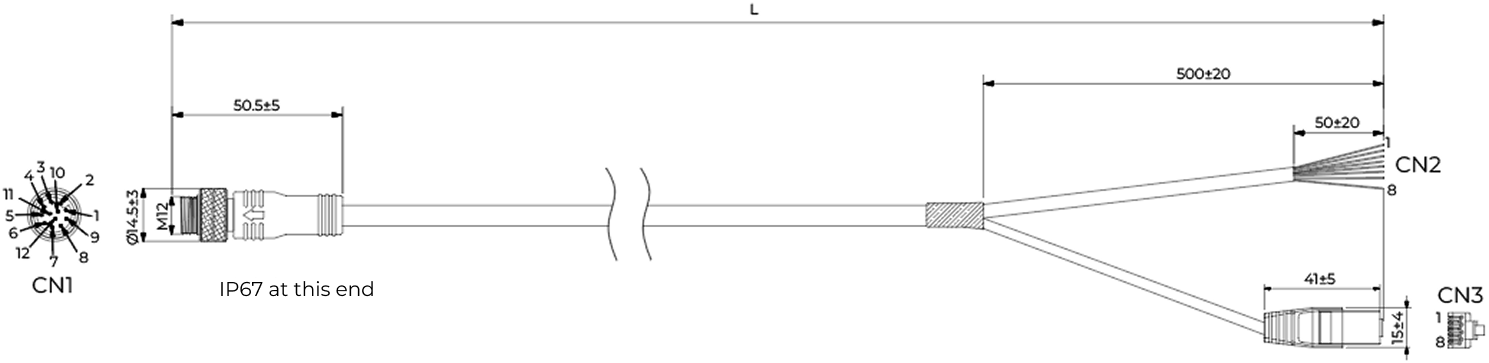

CBL-PWR-M12A12-OPEN |
| Model | L | Tolerance |
|---|---|---|
CBL-PWR-M12A12-XX-5M |
5m |
±100mm |
CBL-PWR-M12A12-XX-15M |
15m |
±200mm |
CBL-PWR-M12A12-OPEN-5M |
5m |
±100mm |
CBL-PWR-M12A12-OPEN-15M |
15m |
±200mm |
Connectors
| CBL-PWR-M12A12-XX-5M / CBL-PWR-M12A12-XX-15M | |||||
|---|---|---|---|---|---|
CN1 |
Color |
CN2 |
CN3 |
CN4 |
Function |
1 |
Red |
1 |
- |
- |
VCC_EXTPWR |
2 |
Black |
- |
7 |
- |
PGND |
4 |
Purple/white |
- |
1 |
- |
OPT_GND |
5 |
Yellow |
- |
2 |
- |
OPT_IN0 |
3 |
Brown |
- |
3 |
- |
OPT_OUT0 |
6 |
Blue |
- |
4 |
- |
DIRECT_IO |
11 |
Purple |
- |
5 |
- |
RS232_RXD |
12 |
Gray |
- |
6 |
- |
RS232_TXD |
7 |
Green |
- |
- |
6 |
MD1_P |
8 |
Green/white |
- |
- |
3 |
MD1_N |
9 |
Orange |
- |
- |
2 |
MD0_P |
10 |
Orange/white |
- |
- |
1 |
MD0_N |
| CBL-PWR-M12A12-OPEN-5M / CBL-PWR-M12A12-OPEN-15M | ||||
|---|---|---|---|---|
CN1 |
Color |
CN2 |
CN3 |
Function |
1 |
Red |
8 |
- |
VCC_EXTPWR |
2 |
Black |
7 |
- |
PGND |
4 |
Purple/white |
1 |
- |
OPT_GND |
5 |
Yellow |
2 |
- |
OPT_IN0 |
3 |
Brown |
3 |
- |
OPT_OUT0 |
6 |
Blue |
4 |
- |
DIRECT_IO |
11 |
Purple |
5 |
- |
RS232_RXD |
12 |
Gray |
6 |
- |
RS232_TXD |
7 |
Green |
- |
6 |
MD1_P |
8 |
Green/white |
- |
3 |
MD1_N |
9 |
Orange |
- |
2 |
MD0_P |
10 |
Orange/white |
- |
1 |
MD0_N |
