LS-16-25MP
Technical Specifications
Model |
LS-16-25MP |
|
Basic parameters |
Focal length |
16mm |
Aperture |
F2.8 to 16 |
|
Image circle |
Φ17.6mm(1.1") |
|
Focusing range |
0.15m to ∞ |
|
Optical distortion |
-0.8% |
|
TV distortion |
-0.2% |
|
Angle of view |
56.7° × 47.1° × 35.4°(17.52 × 14.13 × 10.35mm) |
|
Relative illumination |
58%(F2.8); 80%(F4.0) |
|
Chief ray angle |
13° |
|
Spectral range |
400 to 700nm |
|
Spectral transmittance |
T＞85% |
|
Net weight |
132g |
|
Structure |
Mount |
C-mount |
Filter thread |
M35.5 × P0.5 |
|
Focusing method |
Manual adjustment |
|
Aperture control |
Manual adjustment |
|

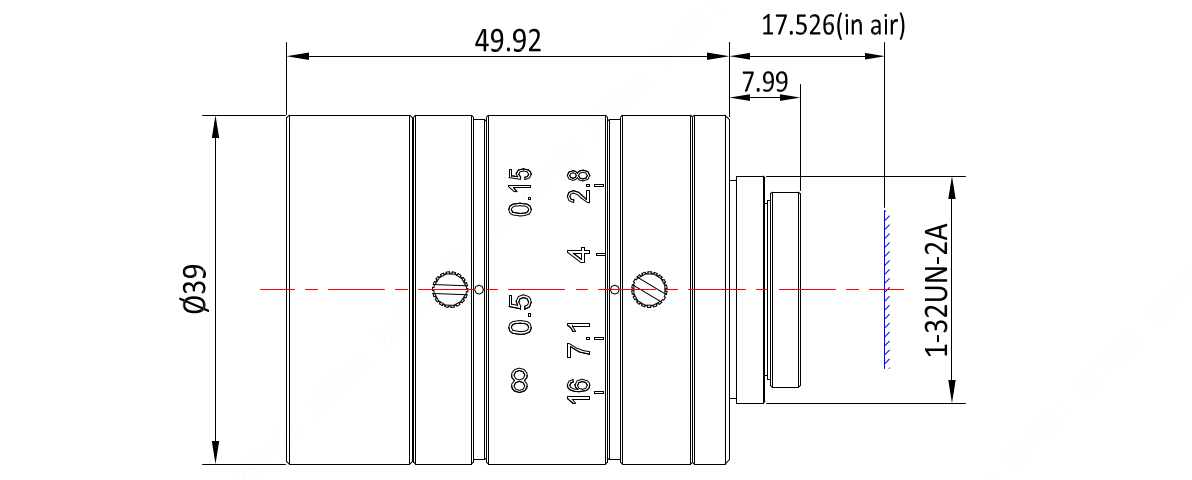

Product dimensions |
49.9 × Φ39mm |
|
Environment |
Operating temperature |
-20 to 50℃ |
