AIC-Lite-050M-08A-W-GL
Technical Specifications
Model |
AIC-Lite-050M-08A-W-GL |
|
|---|---|---|
Basic parameters |
Resolution |
2400 × 2000 |
Sensor size |
2/3" |
|
Maximum frame rate |
16fps |
|
Shutter type |
Global shutter |
|
Sensor type |
CMOS |
|
Color |
Black and white |
|
Lens mount |
M12 |
|
Focal length |
8mm |
|
Focusing method |
Motorized focus |
|
Illumination color |
White light,non-polarized |
|
Working distance |
80 to 1500mm |
|
Field of view |
82.80 × 69.00mm~1293.75 × 1152.50mm |
|
Trigger mode |
Software trigger, external trigger, free run, etc. |
|
Software |
Mech-Vision |
|
Certifications |
FCC, ISED, KC, CE, UKCA |
|
Aimer |
Red cross indicator light |
|
Interface parameters |
Cable |
12-pin M12 power/I/O cable,8-pin M12 network cable |
Network interface |
Gigabit Ethernet |
|
GPIO interface |
2 isolated inputs, 3 isolated outputs |
|
Communication type |
Ethernet |
|
LED indicators |
Power indicator, network indicator, capture indicator |
|
Power parameters |
Power supply |
9 to 26 VDC |
Max power consumption |
＜18W |
|
Structural parameters |

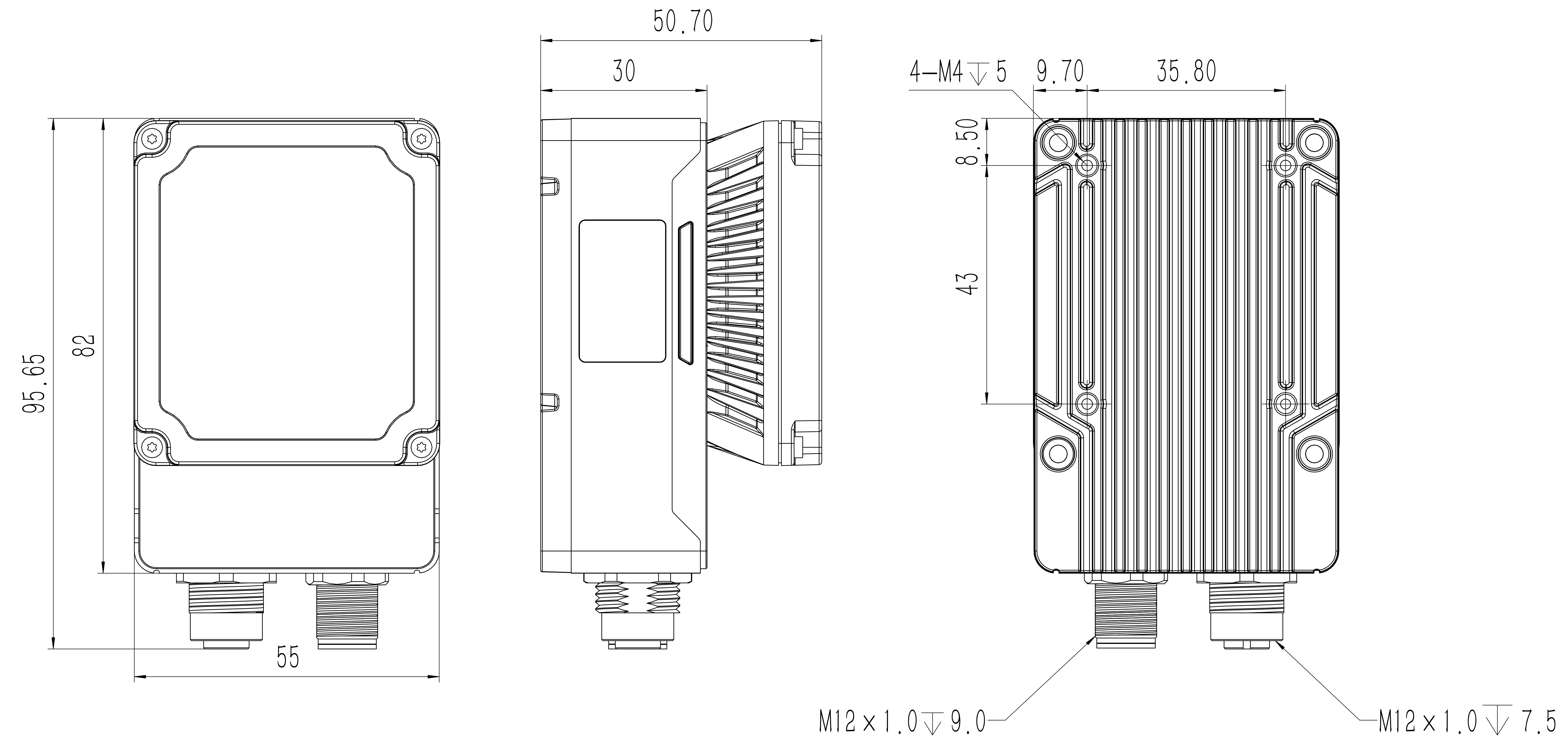

Overall dimensions |
82 × 55 × 50.7mm(excluding connector height) |
Weight |
＜350g |
|
Ingress protection rating |
IP65 |
|
Housing material |
Aluminum alloy+front cover |
|
Operating environment |
Operating temperature |
-20 to 50℃ |
Operating humidity |
20% to 95%,non-condensing |
|
Storage temperature |
-30 to 70℃ |
|
Storage humidity |
20% to 95%,non-condensing |
|
Connectors
|
12-pin pinout |
| Pin | Signal | Description | Cable color |
|---|---|---|---|
1 |
OPT_OUT2 |
Optocoupler-isolated output 2 |
Brown-white |
2 |
RS232_TXD |
Serial port transmit |
Gray |
3 |
RS232_RXD |
Serial port receive |
Purple |
4 |
SIGNAL_GND |
RS232 serial port ground |
Black-white (sleeve) |
5 |
OPT_IN1 |
Optocoupler-isolated input 1 |
Yellow |
6 |
OPT_IN_GND |
Optocoupler-isolated input ground |
Purple-white |
7 |
POWER |
Camera power |
Red |
8 |
POWER_GND |
Camera power ground |
Black |
9 |
OPT_OUT_GND |
Optocoupler-isolated output ground |
Green |
10 |
OPT_IN0 |
Optocoupler-isolated input 0 |
Orange |
11 |
OPT_OUT0 |
Optocoupler-isolated output 0 |
Blue |
12 |
OPT_OUT1 |
Optocoupler-isolated output 1 |
Brown |
- |
- |
Shield ground |
White (sleeve) |
Related Links
For detailed information about camera accessories, refer to the following links:
-
Ethernet cable: Ethernet Cable (M12-A Connector)
-
Power/I/O cable: Camera Power and I/O Cable (M12-A Female Connector)
-
Power adapter: Power Adapter
-
DIN rail power supply: DIN Rail Power Supply
-
Mounting bracket: Camera Mounting Bracket Selection
-
Accessory selection guide: Camera Accessories
For more materials about the camera and accessories, visit the Mech-Mind Download Center.
