AIC-Lite-016M-07M-W-GL
Technical Specifications
Model |
AIC-Lite-016M-07M-W-GL |
|
|---|---|---|
Basic parameters |
Resolution |
1440 × 1080 |
Optical format |
1/2.7" |
|
Max frame rate |
12fps |
|
Shutter type |
Global shutter |
|
Sensor type |
CMOS |
|
Color |
Black and white |
|
Lens mount |
M12 |
|
Lens focal length |
6.72mm |
|
Focusing method |
Manual focus |
|
Illumination color |
White light |
|
Working distance |
40 to 150mm |
|
Field of view range |
29.57 × 22.18mm~110.89 × 83.17mm |
|
Trigger mode |
Software trigger, external trigger, free run, etc. |
|
Software |
Mech-Vision |
|
Certifications |
FCC, ISED, CE, UKCA |
|
Aimer |
Orange/green indicator LED |
|
Interface parameters |
Cable |
12-pin M12 power/I/O cable, including RJ45 and GPIO interfaces |
Network interface |
100 Mbps Ethernet |
|
GPIO interface |
1 isolated input, 1 isolated output, 1 configurable input/output |
|
Communication method |
Ethernet |
|
LED indicators |
Power indicator, network indicator, capture indicator |
|
Power parameters |
Power supply |
9 to 26 VDC |
Max power consumption |
<10.5W |
|
Mechanical parameters |

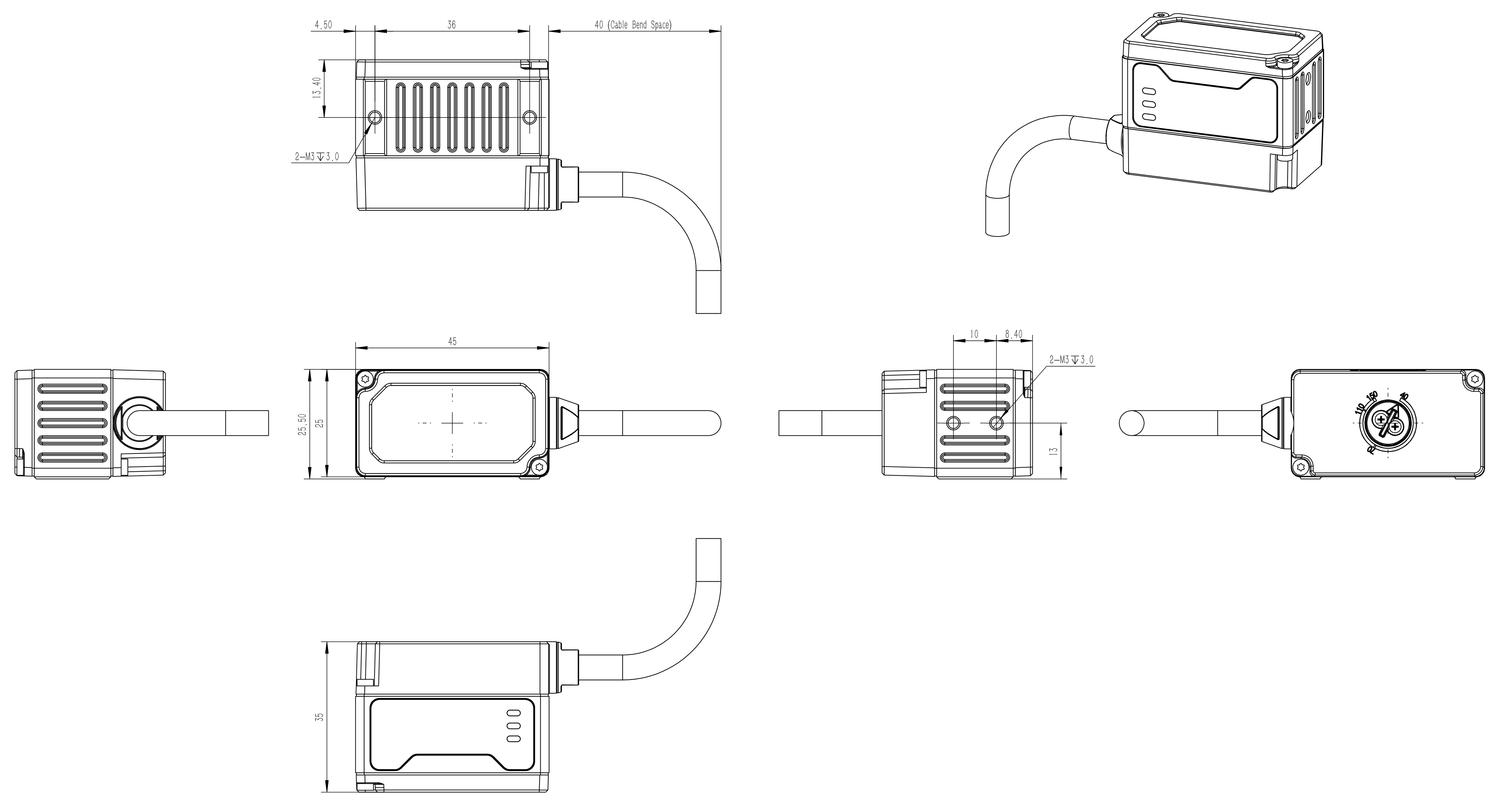

Dimensions |
45 × 35 × 25mm (excluding cable) |
Weight |
<110g |
|
Ingress protection |
IP65 |
|
Housing material |
Aluminum alloy + front cover |
|
Operating environment |
Operating temperature |
-20 to 50℃ |
Operating humidity |
20% to 95%, non-condensing |
|
Storage temperature |
-30 to 70℃ |
|
Storage humidity |
20% to 95%, non-condensing |
|
Connectors
|
12-pin pinout |
| Pin | Signal | Description | Cable color |
|---|---|---|---|
1 |
Power |
Power input |
Red |
2 |
POWER_GND |
Power ground |
Black |
3 |
OPT_OUT0 |
Optocoupler output |
Brown |
4 |
OPT_GND |
Optocoupler ground |
Purple/white |
5 |
OPT_IN0 |
Optocoupler input |
Yellow |
6 |
GPIO |
Configurable I/O |
Blue |
7 |
MD1_P |
RJ45 Ethernet port |
Green |
8 |
MD1_N |
RJ45 Ethernet port |
Green/white |
9 |
MD0_P |
RJ45 Ethernet port |
Orange |
10 |
MD0_N |
RJ45 Ethernet port |
Orange/white |
11 |
RS232_RXD |
Serial port receive |
Purple |
12 |
RS232_TXD |
Serial port transmit |
Gray |
Related Links
The camera’s power, I/O, and RJ45 Ethernet interface are integrated into a single power/I/O cable. For detailed information about camera accessories, refer to the following links:
-
Power/I/O cable (with RJ45 Ethernet interface): Camera Power and I/O Cable (M12-A Male Connector)
-
Power adapter: Power Adapter
-
DIN rail power supply: DIN Rail Power Supply
-
Mounting bracket: Camera Mounting Bracket Selection
-
Accessory selection guide: Camera Accessories
For more materials about the camera and accessories, visit the Mech-Mind Download Center.
