AIC-Lite-016M-16M-W-GL
Technical Specifications
Model |
AIC-Lite-016M-16M-W-GL |
|
|---|---|---|
Specifications |
Resolution |
1440 × 1080 |
Image sensor format |
1/2.7" |
|
Max frame rate |
12fps |
|
Shutter type |
Global shutter |
|
Sensor type |
CMOS |
|
Color |
Monochrome |
|
Lens mount |
M12 |
|
Focal length |
16 mm |
|
Focus method |
Manual focus |
|
Light source color |
White, non-polarized |
|
Working distance |
80–200 mm |
|
Field of view |
24.84 × 18.63 mm–62.10 × 46.58 mm |
|
Trigger mode |
Software trigger, external trigger, free run, etc. |
|
Companion software |
Mech-Vision |
|
Certifications |
FCC, ISED, CE, UKCA |
|
Aimer |
Orange/green light |
|
Interface specifications |
Cable |
12-pin M12 power and I/O cable, including RJ45 and GPIO interfaces |
Network interface |
Fast Ethernet (100 Mbps) |
|
GPIO interface |
1 isolated input, 1 isolated output, 1 configurable input/output |
|
Communication method |
Ethernet |
|
LED indicators |
Power indicator, network indicator, capture indicator |
|
Power specifications |
Power supply |
9 to 26 VDC |
Max power consumption |
＜10.5W |
|
Mechanical specifications |

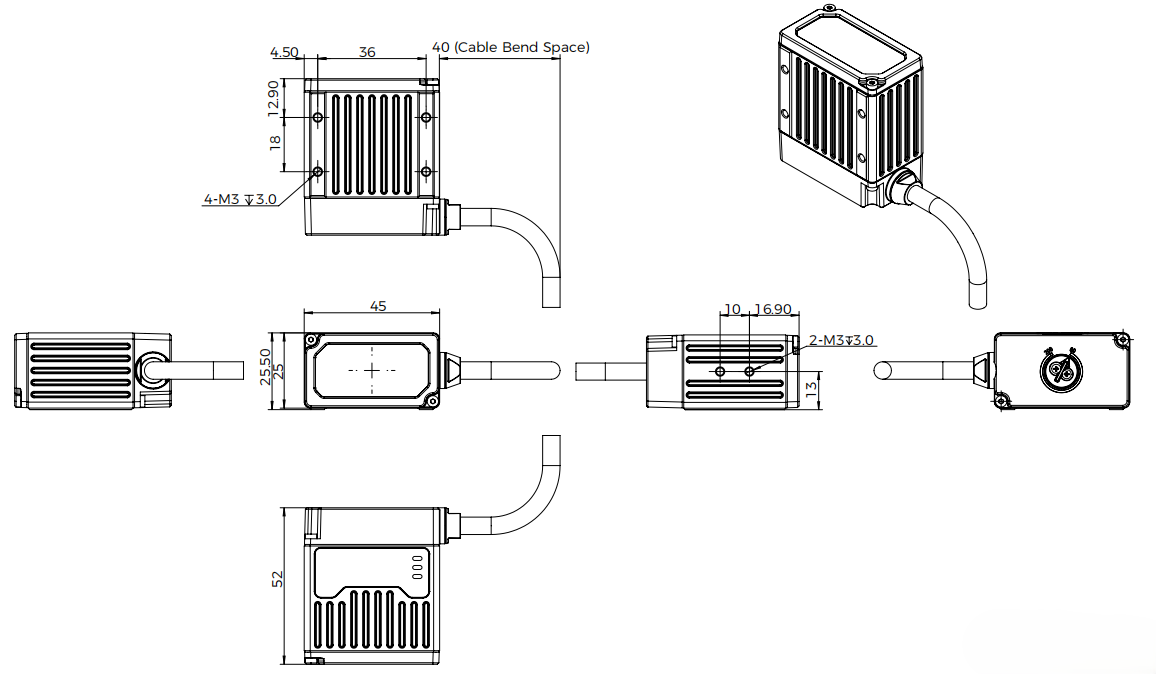

Dimensions |
45 × 52 × 25.5 mm (excluding cable) |
Weight |
＜140g |
|
IP rating |
IP65 |
|
Housing material |
Aluminum alloy + front cover |
|
Working conditions |
Operating temperature |
-20~50℃ |
Operating humidity |
20%–95%, no condensation |
|
Storage temperature |
-30–70°C |
|
Storage humidity |
20%–95%, no condensation |
|
Connectors
|
12-pin assignment |
| Pin | Signal | Description | Mating cable color |
|---|---|---|---|
1 |
Power |
Power input |
Red |
2 |
POWER_GND |
Power ground |
Black |
3 |
OPT_OUT0 |
Optocoupler output |
Brown |
4 |
OPT_GND |
Optocoupler ground |
Purple/White |
5 |
OPT_IN0 |
Optocoupler input |
Yellow |
6 |
GPIO |
Configurable I/O |
Blue |
7 |
MD1_P |
RJ45 Ethernet port |
Green |
8 |
MD1_N |
RJ45 Ethernet port |
Green/White |
9 |
MD0_P |
RJ45 Ethernet port |
Orange |
10 |
MD0_N |
RJ45 Ethernet port |
Orange/White |
11 |
RS232_RXD |
Serial port receive |
Purple |
12 |
RS232_TXD |
Serial port transmit |
Gray |
