AIC-Lite-050M-16A-W-GL
Technical Specifications
Model |
AIC-Lite-050M-16A-W-GL |
|
|---|---|---|
Basic parameters |
Resolution |
2400 × 2000 |
Optical format |
2/3" |
|
Max frame rate |
16fps |
|
Shutter type |
Global shutter |
|
Sensor type |
CMOS |
|
Color |
Monochrome |
|
Lens mount |
M12 |
|
Focal length |
16mm |
|
Focus mode |
Motorized focus |
|
Illumination color |
White light, non-polarized |
|
Working distance |
100 to 1500mm |
|
Field of view |
51.75 × 43.13mm~776.25 × 646.88mm |
|
Trigger mode |
Software trigger, external trigger, free run, etc. |
|
Software |
Mech-Vision |
|
Certifications |
FCC, ISED, KC, CE, UKCA |
|
Aiming device |
Red crosshair indicator light |
|
Interface parameters |
Cables |
12-pin M12 power I/O cable, 8-pin M12 network cable |
Network interface |
Gigabit Ethernet |
|
GPIO interface |
2 opto-isolated inputs, 3 opto-isolated outputs |
|
Communication type |
Ethernet |
|
LED indicators |
Power indicator, network indicator, capture indicator |
|
Power parameters |
Power supply |
9 to 26 VDC |
Max power consumption |
＜18W |
|
Mechanical parameters |

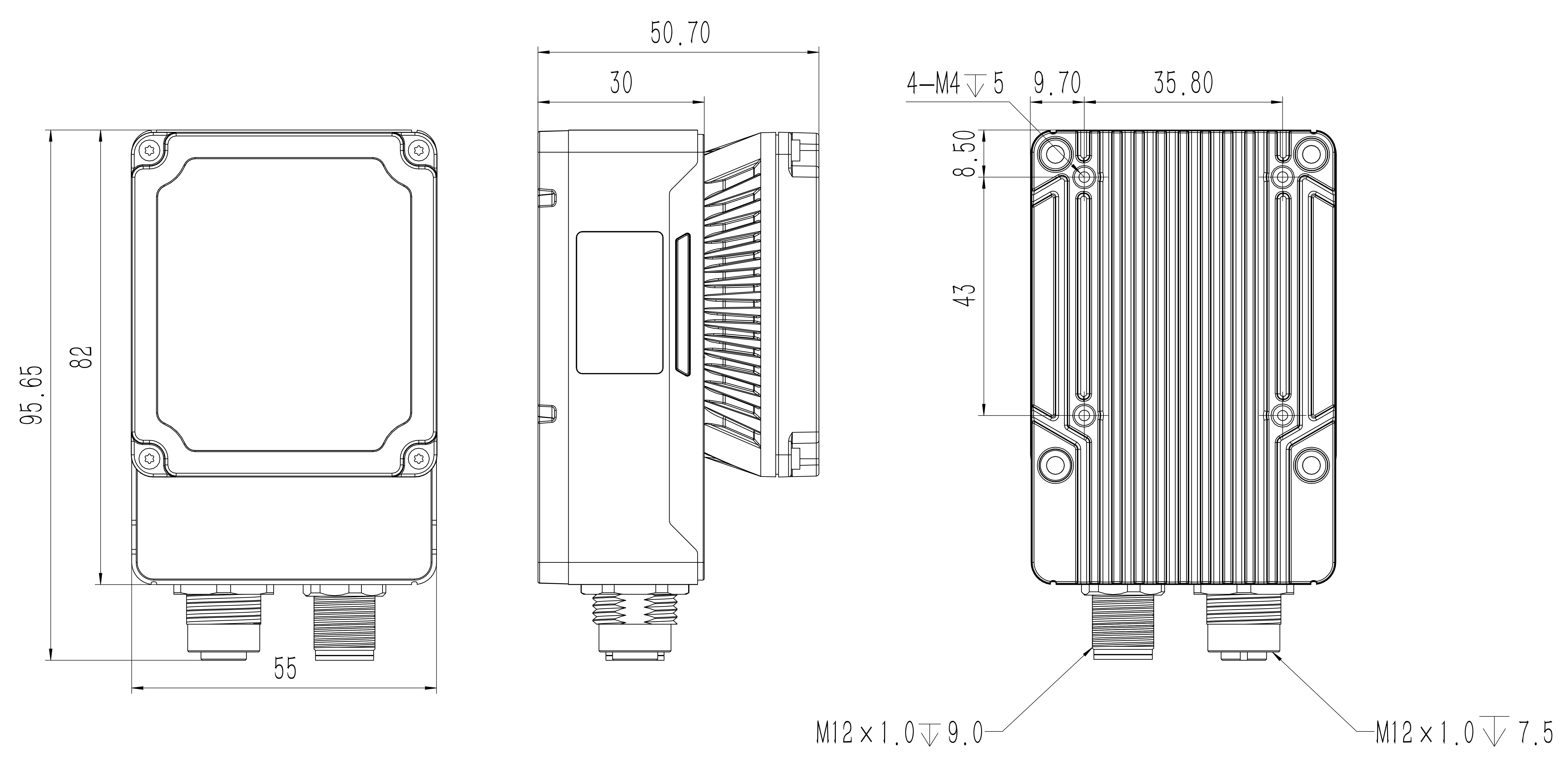

Dimensions |
82 × 55 × 50.7mm(interface height not included) |
Weight |
＜350g |
|
Protection rating |
IP65 |
|
Housing material |
Aluminum alloy+front cover |
|
Operating environment |
Operating temperature |
-20 to 50℃ |
Operating humidity |
20% to 95%,non-condensing |
|
Storage temperature |
-30 to 70℃ |
|
Storage humidity |
20% to 95%,non-condensing |
|
Connectors
|
12-pin pinout |
| Pin | Signal | Description | Cable color |
|---|---|---|---|
1 |
OPT_OUT2 |
Opto-isolated output 2 |
Brown white |
2 |
RS232_TXD |
Serial port transmit |
Gray |
3 |
RS232_RXD |
Serial port receive |
Purple |
4 |
SIGNAL_GND |
RS232 serial port ground |
Black white (sleeve) |
5 |
OPT_IN1 |
Opto-isolated input 1 |
Yellow |
6 |
OPT_IN_GND |
Opto-isolated input ground |
Purple white |
7 |
POWER |
Camera power |
Red |
8 |
POWER_GND |
Camera power ground |
Black |
9 |
OPT_OUT_GND |
Opto-isolated output ground |
Green |
10 |
OPT_IN0 |
Opto-isolated input 0 |
Orange |
11 |
OPT_OUT0 |
Opto-isolated output 0 |
Blue |
12 |
OPT_OUT1 |
Opto-isolated output 1 |
Brown |
- |
- |
Shield ground |
White (sleeve) |
