AIC-Lite-200M-00C-N-GL
Technical Specifications
Model |
AIC-Lite-200M-00C-N-GL |
|
|---|---|---|
Basic parameters |
Resolution |
5328 × 4608 |
Optical format |
1.2" |
|
Maximum frame rate |
4.9fps |
|
Shutter type |
Global shutter |
|
Sensor type |
CMOS |
|
Color |
Monochrome |
|
Lens mount |
C-mount,manual focus |
|
Lens focal length |
User-selectable |
|
Focusing method |
Manual focus |
|
Illumination color |
No light source included |
|
Working distance |
Depends on lens selection |
|
Field of view |
Depends on lens selection |
|
Trigger mode |
Software trigger, external trigger, free run, etc. |
|
Software |
Mech-Vision |
|
Certifications |
FCC, ISED, CE, UKCA |
|
Aimer |
Not included |
|
Interface parameters |
Cables |
6-pin power I/O cable, RJ45 Gigabit Ethernet cable |
Network interface |
Gigabit Ethernet |
|
GPIO interface |
6-pin interface: 1 opto-isolated input, 1 opto-isolated output, 1 non-isolated software-configurable input/output |
|
Communication type |
Ethernet |
|
LED indicator |
Power indicator |
|
Power parameters |
Power supply |
9 to 24 VDC |
Max power consumption |
＜2.6W |
|

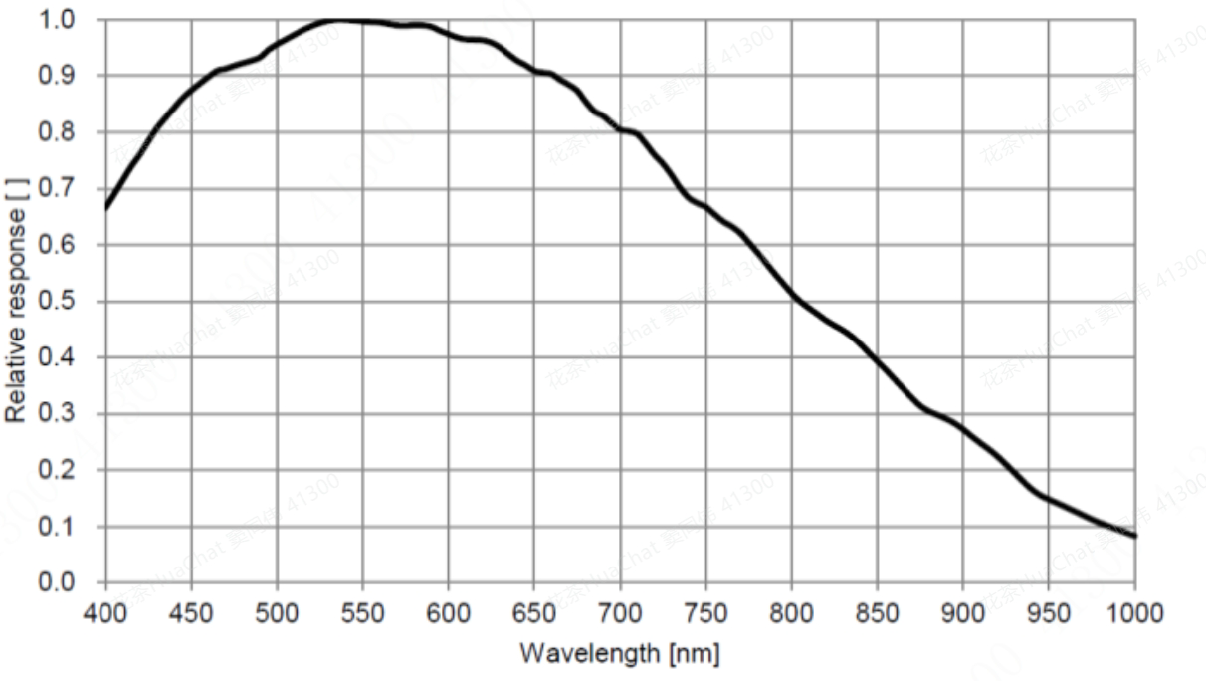

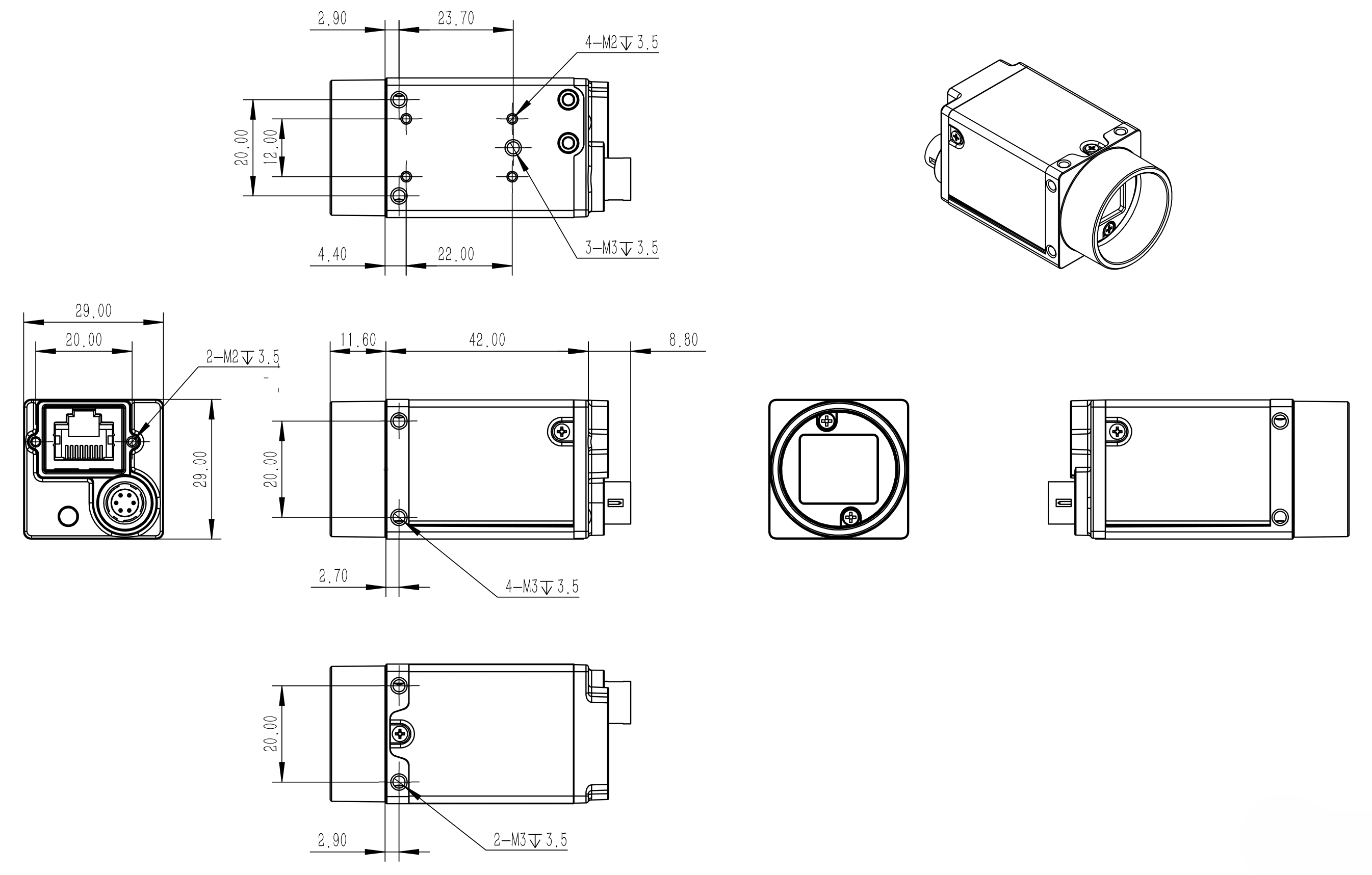

Mechanical parameters |
Dimensions |
29 × 29 × 42 mm(excluding lens mount and rear housing interface) |
Weight |
98g |
|
Protection rating |
IP40(with lens and cables correctly installed) |
|
Housing material |
Aluminum alloy |
|
Operating environment |
Operating temperature |
0 to 50℃ |
Operating humidity |
20% to 80%,non-condensing |
|
Storage temperature |
-30 to 80℃ |
|
Storage humidity |
20% to 80%,non-condensing |
|
Connectors
|
6-pin pinout |
| Pin | Description | Function |
|---|---|---|
1 |
- |
24 VDC camera power |
2 |
LINE1 |
Opto-isolated input |
3 |
LINE2 |
GPIO(non-isolated software-configurable input/output I/O) |
4 |
LINE0 |
Opto-isolated output |
5 |
- |
Opto-isolated signal ground(ISO_GND) |
6 |
- |
DC camera power ground and GPIO signal ground(GND) |
Related Links
This camera does not include a light source or lens; a compatible lens must be selected according to your application. For detailed information about camera accessories, refer to the following links:
-
Ethernet cable: Ethernet Cable (RJ45 Connector)
-
Power/I/O cable: Camera Power and I/O Cable (6-pin Connector)
-
Power adapter: Power Adapter
-
DIN rail power supply: DIN Rail Power Supply
-
Accessory selection guide: Camera Accessories
For more materials about the camera and accessories, visit the Mech-Mind Download Center.
