LS-12-25MP
Technical Specifications
Model |
LS-12-25MP |
|
Basic parameters |
Focal length |
12mm |
Aperture |
F2.8 to 16 |
|
Image circle |
Φ17.6mm(1.1") |
|
Focus range |
0.1m to ∞ |
|
Optical distortion |
-1.4% |
|
TV distortion |
-0.6% |
|
Field of view |
73.4° × 55.6° × 56.6°(18.10 × 12.8 × 12.8mm) |
|
Relative illumination |
50%(F2.8); 72%(F4.0) |
|
Chief ray angle |
14.5° |
|
Spectral range |
400 to 1000nm |
|
Spectral transmittance |
T＞85% |
|
Net weight |
130g |
|
Structure |
Mount |
C-mount |
Filter thread |
M44.5 × P0.75 |
|
Focusing method |
Manual adjustment |
|
Aperture control |
Manual adjustment |
|

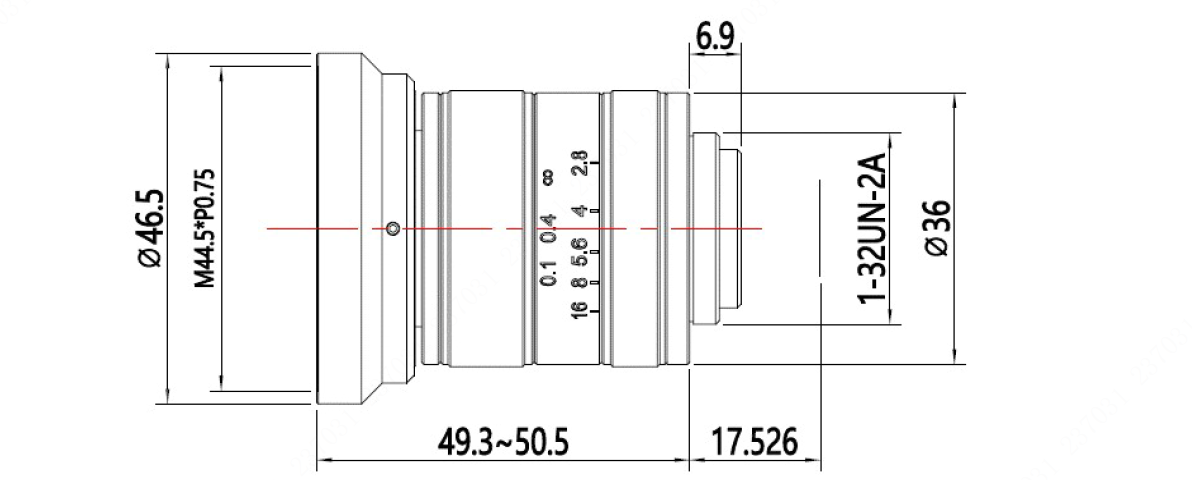

Product dimensions |
50.5 × Φ46.5mm |
|
Environment |
Operating temperature |
-20 to 50℃ |
