Ethernet Cable (RJ45 Connector)
Physical Specifications
Basic parameters |
Model |
CBL-ETH-RJ45-RJ45-5M CBL-ETH-RJ45-RJ45-30M |
|---|---|---|
Product category |
Gigabit Ethernet cable(RJ45 to RJ45) |
|
Color |
Black |
|
A-end connector |
RJ45(with fixing screws) |
|
B-end connector |
RJ45 |
|
Construction |
Cable structure |
26AWG*4P+NON WOVEN FABRIC+B |
Cable diameter |
6.5mm |
|
Outer jacket material |
PVC |
|
Connector durability |
≥750 mating cycles |
|
Minimum bend radius |
60mm |
|
Applicable scenario |
Dynamic |
|
Drag chain cycles |
10 million cycles |
|
Packaging method |
Individual packaging bag |
|
Hardware |
Maximum operating voltage |
30 VDC |
Operating temperature |
-20 to 80℃ |
|
Safety |
Compliant with RoHS standard |
|
Applicable camera models |
AIC-Lite-120M-00C-N-GL AIC-Lite-200M-00C-N-GL AIC-Lite-250M-00C-N-GL |
|

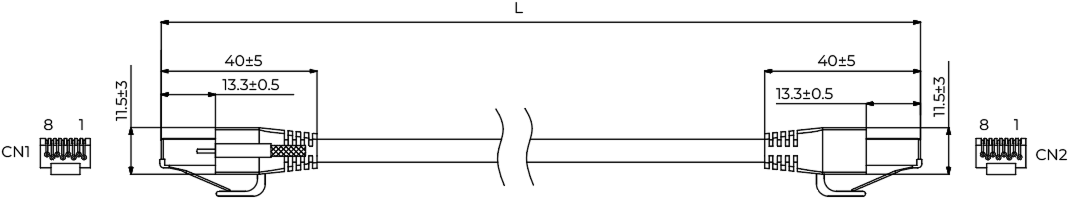

Dimensions
Unit: mm
| Model | L | Tolerance |
|---|---|---|
CBL-ETH-RJ45-RJ45-5M |
5m |
±50mm |
CBL-ETH-RJ45-RJ45-30M |
30m |
±300mm |
Connectors
| CN1 | CN2 | Color | Wire number |
|---|---|---|---|
1 |
1 |
White-orange |
26# |
2 |
2 |
Orange |
|
3 |
3 |
White-green |
|
6 |
6 |
Green |
|
5 |
5 |
White-blue |
|
4 |
4 |
Blue |
|
7 |
7 |
White-brown |
|
8 |
8 |
Brown |
|
Housing |
Housing |
/ |
Braided shield |
