Camera Power and I/O Cable (6-pin Connector)
Physical Specifications
Basic parameters |
Model |
CBL-PWR-6PIN-DC-5M |
CBL-PWR-6PIN-DC-30M |
|---|---|---|---|
Product category |
Power I/O cable |
||
Color |
Black |
||
Connector A |
6-pin aviation female connector |
||
Connector B |
Flying leads (includes DC5.5 female jack) |
||
Construction |
Cable construction |
26AWG*(2P+2C)+AB |
23AWG*1P+26AWG*2P+AB |
Cable diameter |
5.2mm |
5.6mm |
|
Outer jacket material |
PVC |
||
Connector durability |
≥750 mating cycles |
||
Minimum bending radius |
55mm |
||
Suitable scenarios |
Dynamic |
||
Drag chain cycles |
10 million cycles |
||
Packaging method |
Individual packaging bag |
||
Hardware |
Maximum operating voltage |
30 VDC |
|
Operating temperature |
-20 to 80℃ |
||
Safety |
Complies with RoHS 2.0 standard |
||
Compatible camera models |
AIC-Lite-120M-00C-N-GL AIC-Lite-200M-00C-N-GL AIC-Lite-250M-00C-N-GL |
||

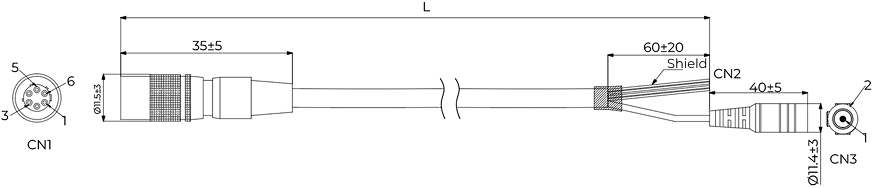

Connectors
| CN1 | Color | CN2 | CN3 | Function |
|---|---|---|---|---|
1 |
Blue |
- |
1 |
Power |
6 |
Brown |
- |
2 |
Power ground / GPIO ground |
2 |
Red |
2 |
- |
Optocoupler-isolated input L1 |
5 |
Green |
5 |
- |
I/O ground |
3 |
Gray |
3 |
- |
Input/output L2 |
4 |
Black |
4 |
- |
Optocoupler-isolated output L0 |
Shell |
White (sleeve) |
Shield |
- |
- |
