Camera Power and I/O Cable (M12-A Female Connector)
Physical Specifications
Basic parameters |
Model |
CBL-PWR-M12A12F-DC-5M CBL-PWR-M12A12F-DC-15M |
CBL-PWR-M12A12F-OPEN-5M CBL-PWR-M12A12F-OPEN-15M |
|---|---|---|---|
Product category |
Power I/O cable |
||
Color |
Black |
||
End A connector |
M12-A aviation female connector |
||
End B connector |
DC5.5 female 10-core flying leads |
13-core flying leads |
|
Structure |
Cable structure |
(24AWG*3C+S OD:3.5 PVC)(24AWG*2C OD:2.5 PVC)(26AWG*8C OD:3.5 PVC)+F(opt) |
|
Harness diameter |
8.5mm |
||
Outer sheath material |
PVC |
||
Connector durability |
≥750 mating cycles |
||
Minimum bend radius |
85mm |
||
Applicable scenarios |
Dynamic |
||
Drag chain cycles |
10 million cycles |
||
Packaging method |
Individual packaging bag |
||
Hardware |
Maximum operating voltage |
30 VDC |
|
Operating temperature |
-20 to 80°C |
||
Safety |
Compliant with RoHS2.0 standard |
||
Compatible camera models |
AIC-Lite-050M-08A-W-GL AIC-Lite-050M-16A-W-GL AIC-Lite-050C-08A-W-GL |
||
Dimensions
Unit: mm
|

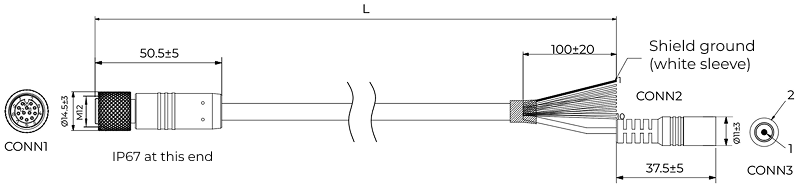

CBL-PWR-M12A12F-DC |
|

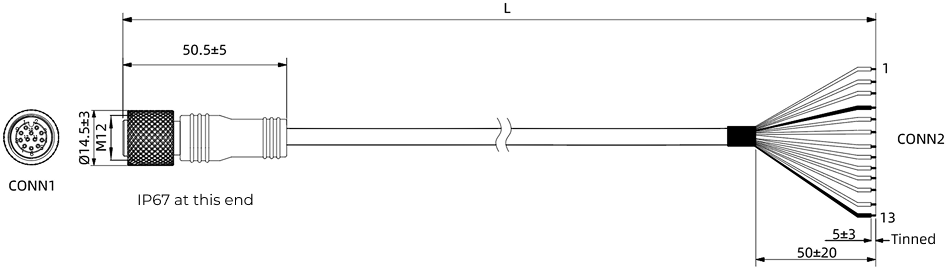

CBL-PWR-M12A12F-OPEN |
| Model | L | Tolerance |
|---|---|---|
CBL-PWR-M12A12F-DC-5M |
5m |
±100mm |
CBL-PWR-M12A12F-DC-15M |
15m |
±200mm |
CBL-PWR-M12A12F-OPEN-5M |
5m |
±100mm |
CBL-PWR-M12A12F-OPEN-15M |
15m |
±200mm |
Connectors
| CBL-PWR-M12A12F-DC-5M / CBL-PWR-M12A12F-DC-15M | ||||
|---|---|---|---|---|
CONN1 |
Color |
CONN2 |
CONN3 |
Function |
1 |
Brown/White |
1 |
- |
Optocoupler output 2 |
2 |
Gray |
2 |
- |
Serial TX |
3 |
Purple |
3 |
- |
Serial RX |
4 |
White/Black |
4 |
- |
Serial GND |
5 |
Yellow |
5 |
- |
Optocoupler input 1 |
6 |
Purple/White |
6 |
- |
Optocoupler input ground |
7 |
Red |
- |
1 |
Power |
8 |
Black |
- |
2 |
Power ground |
9 |
Green |
7 |
- |
Optocoupler output ground |
10 |
Orange |
8 |
- |
Optocoupler input 0 |
11 |
Blue |
9 |
- |
Optocoupler output 0 |
12 |
Brown |
10 |
- |
Optocoupler output 1 |
Shell |
Wrapped (white sleeve) |
- |
- |
Shield ground |
| CBL-PWR-M12A12F-OPEN-5M / CBL-PWR-M12A12F-OPEN-15M | |||
|---|---|---|---|
CONN1 |
Color |
Core wire |
CONN2 |
1 |
Brown/white |
24AWG |
1 |
2 |
Gray |
24AWG*1P |
2 |
3 |
Purple |
24AWG*1P |
3 |
4 |
Wrapped (white/black sleeve) |
Wrapped |
4 |
5 |
Yellow |
24AWG |
5 |
6 |
Purple/white |
24AWG |
6 |
7 |
Red |
24AWG |
7 |
8 |
Black |
24AWG |
8 |
9 |
Green |
24AWG |
9 |
10 |
Orange |
24AWG |
10 |
11 |
Blue |
24AWG |
11 |
12 |
Brown |
24AWG |
12 |
Metal shell |
Braided (white sleeve) |
24AWG |
13 |
