Vision Result Details

You are currently viewing the documentation for the latest version (2.1.2). To access a different version, click the "Switch version" button located in the upper-right corner of the page.

■ If you are not sure which version of the product you are currently using, please feel free to contact Mech-Mind Technical Support.

This window illustrates details about the vision result, making it easier to locate the cause of a picking failure and troubleshoot errors.

Vision Result Summary

Vision service name

The name of the Mech-Vision project that provides the vision result.

Total number of target objects

The total number of target objects involved in vision results sent by a single vision service.

Total number of pick points

The total number of pick points involved in vision results sent by a single vision service.

Target Object

Target object ID

The target object ID displayed in the target object editor.

Target object name

The target object name set in the target object editor.

Object center point

The pose of the target object’s center point.

Number of pick points

The number of pick points on the target object.

Pick Point

Pick point list

The list formed by all the pick points on the target object. The number in the front indicates the pick point ID, while the number in the back represents the pick point name.

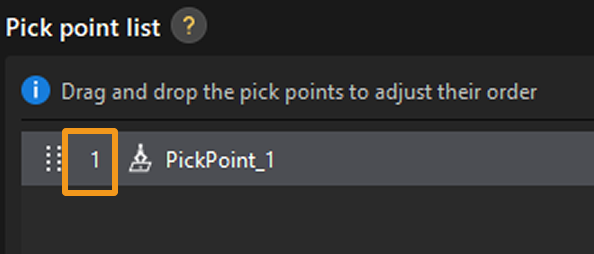

Pick point No.

The identification number of pick points displayed in the target object editor.

alt
Pick point label

Deep learning labels or numeric labels set in the target object editor.

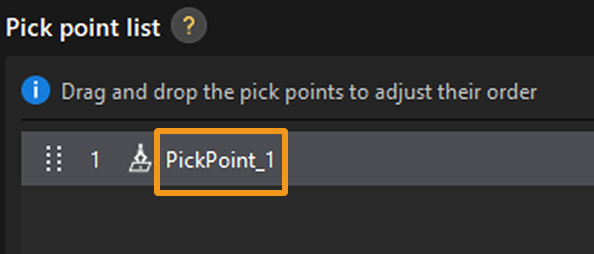

Pick point name

The pick point name set in the target object editor.

alt
Pick Point

The pose of the pick point.

Status

The status of the current pick point. For detailed information, please see in Pose Status Details.

Path Planning Result

Click Pick point or Target object button to view the path planning result of specific pick point or target object.

You refer to Plan history functional panel for details.
