Read Images V2

You are currently viewing the documentation for the latest version (2.1.2). To access a different version, click the "Switch version" button located in the upper-right corner of the page.

■ If you are not sure which version of the product you are currently using, please feel free to contact Mech-Mind Technical Support.

Function

This Step can read 2D images from files or folders.

Usage Scenario

This Step is a general image reading Step. No fixed usage scenarios.

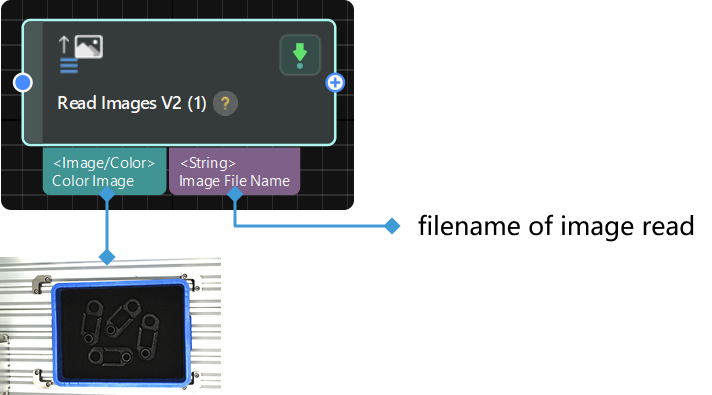

Input and Output

input and output

Parameter Description

This Step provides two image reading methods for setting the source path of images.

  • File: Load one image from file.

  • Directory: Load multiple images in a folder.

The following sections introduce the parameters for the two reading methods above.

File

Image File Path

Description: This parameter is used to select the file path of the image to be read. It supports mutual conversion between absolute and relative paths.

Instruction: Click the “folder” icon and select the file you need.

Image Name Type

Description: This parameter is used to select the type of the output image name.

Value list: Complete Path, File Name, Base Name

  • Full Path: The absolute path to the file, e.g., “D:/image_data/sample.jpg”.

  • Full Name: The full name of the file, including extension, e.g., “sample.jpg”.

  • Base Name: The base name consists of all characters in the file up to (but not including) the first ‘.’ character, e.g., “sample”.

Default value: Complete Path

Directory

Image Folder Path

Description: This parameter is used to select the directory path of the image to be read. It supports mutual conversion between absolute and relative paths.

Instruction: Click the “folder” icon and select the folder you need.

Image Format

Description: This parameter is used to select the file format of the image to be read.

Value list: PNG, JPG, BMP

Default value: JPG

Read All

Description: This parameter is used to determine whether to read all images in the Image Folder Path at once.

Default setting: Unselected

Instruction: If selected, all images will be read and output together. In this case, Play Back Mode and Image Name Type will be disabled. If unselected, images will be read one by one and output separately. In this case, you need to set both Play Back Mode and Image Name Type.

Play Back Mode

Description: When Read All is not selected, this parameter is used to manage the way to load images from folder.

Value list: Sequential, Repeat one, Repeat all, Random

  • Sequential: reads the images in the folder in the order of the file name and stops after the last one is read.

  • Repeat one: repeats reading the current image.

  • Repeat all: reads images in the folder in the order of file names in a loop that does not end.

  • Random: reads the images in the folder randomly.

Default value: Sequential

Image Name Type

Description: This parameter is used to select the type of the output image name.

Value list: Complete Path, File Name, Base Name

  • Full Path: The absolute path to the file, e.g., “D:/image_data/sample.jpg”.

  • Full Name: The full name of the file, including extension, e.g., “sample.jpg”.

  • Base Name: The base name consists of all characters in the file up to (but not including) the first ‘.’ character, e.g., “sample”.

Default value: Complete Path
