DC power cable

You are currently viewing the documentation for the latest version (2.4.1). To access a different version, click the "Switch version" button located in the upper-right corner of the page.

■ If you are not sure which version of the product you are currently using, please feel free to contact Mech-Mind Technical Support.

Physical Specifications

Model

Straight connector

Right-angle connector

CBL-PWR-5M
CBL-PWR-10M
CBL-PWR-15M
CBL-PWR-20M
CBL-PWR-30M

CBL-PWR-5M-LU
CBL-PWR-10M-LU
CBL-PWR-15M-LU
CBL-PWR-20M-LU
CBL-PWR-30M-LU

Color

Black

Jacket material

PVC

Filler

Cotton

Outer diameter

5.5 ± 0.1 mm

Connectors

M12-A, straight or right-angle, 4 pins
Pigtail

Conductor diameter

22 AWG

Static bend radius

22 mm

Dynamic bend radius

44 mm

Safety

RoHS: compliant
Flame resistance rating: VW-1

Drag-chain bend test

Bend radius: 75 mm
Traversing distance: 1000 mm
Speed: 1000 mm/s
Bend cycles: ≥ 800 million

Torsion test

Angle: ± 180°
Length: 1000 ± 50 mm
Speed: 30 twists/min
Torsion cycles: ≥ 300 million

Can be used with

DEEP-GL

Log S
Log M

LSR S-GL

LSR L-GL

LSR XL-GL

NANO-GL

NANO ULTRA-GL

PRO XS-GL

PRO S-GL

PRO M-GL

UHP-140-GL

Dimensions

Unit: mm

power cable angled
power cable straight
Model L

CBL-PWR-5M / CBL-PWR-5M-LU

5 m

CBL-PWR-10M / CBL-PWR-10M-LU

10 m

CBL-PWR-15M / CBL-PWR-15M-LU

15 m

CBL-PWR-20M / CBL-PWR-20M-LU

20 m

CBL-PWR-30M / CBL-PWR-30M-LU

30 m

Connectors

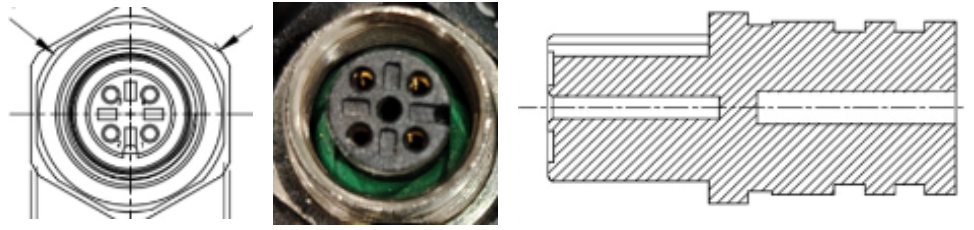

power cable m12

M12-A connector
Function M12-A connector pin Pigtail wire color

GND

1

Brown

GND

2

White

24 VDC

3

Blue

24 VDC

4

Black

PE

-

Yellow-green
