Configure Display Window

You are currently viewing the documentation for the latest version (2.2.0). To access a different version, click the "Switch version" button located in the upper-right corner of the page.

■ If you are not sure which version of the product you are currently using, please feel free to contact Mech-Mind Technical Support.

According to the configured Image layout, the production interface mainly displays several image windows, allowing users to intuitively view the image data.

Click the configuration icon configure icon at the upper-right corner of each display window and configure the image to be displayed in the pop-up window.

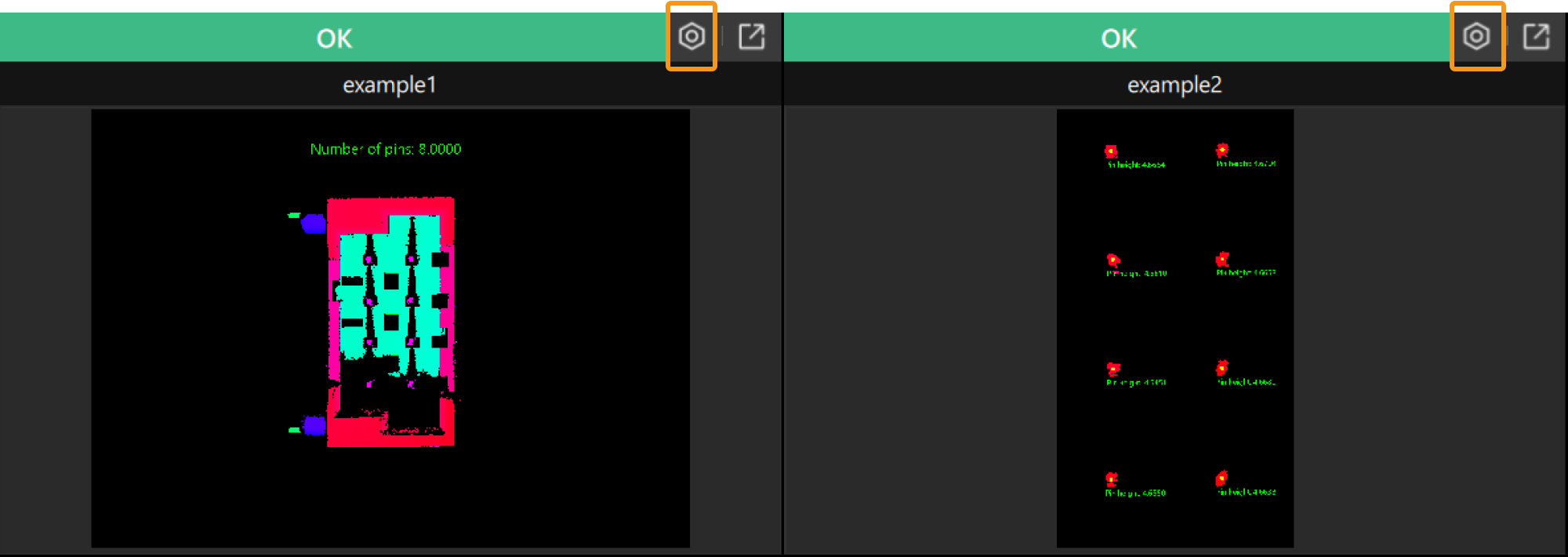

config display window

Configuration Process

Follow the steps below to configure each display window:

Once the settings are completed, click the Save button to save the changes, and the configured image will be displayed in the display window.

To zoom in on the image, click the icon view icon in the upper-right corner of the display window to open a new window showing a single image.

Background Image Settings

According to the actual requirements, set the background image displayed in the window.

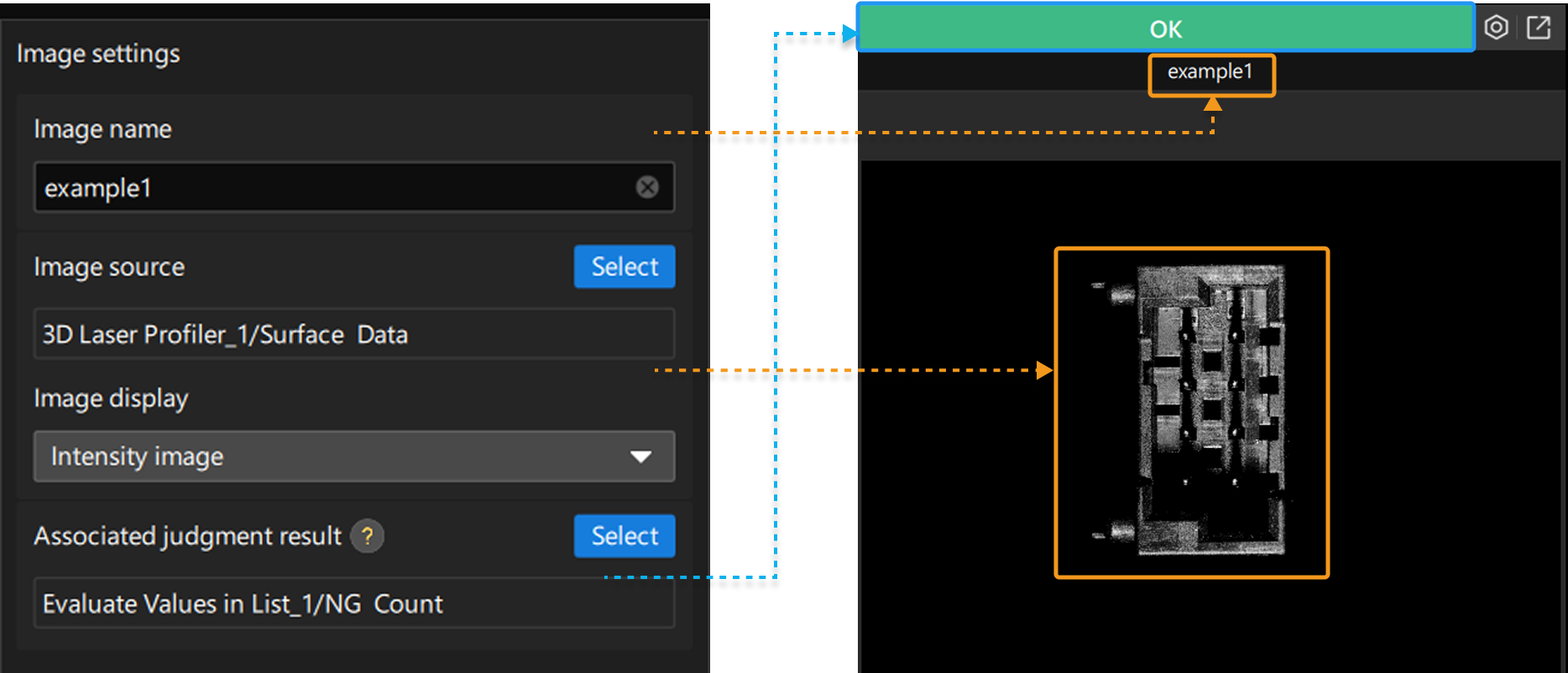

image settings
Parameter Description

Image name

The set image name will be displayed at the top of the window.

Image type

Surface data, Profile, or 2D image can be selected.

Image source

Click the Select button to select the image to be displayed in the window.

Display mode

You can set the form of display of the image data.

Options: Depth map(pseudo-colored), depth map(grayscale), intensity image

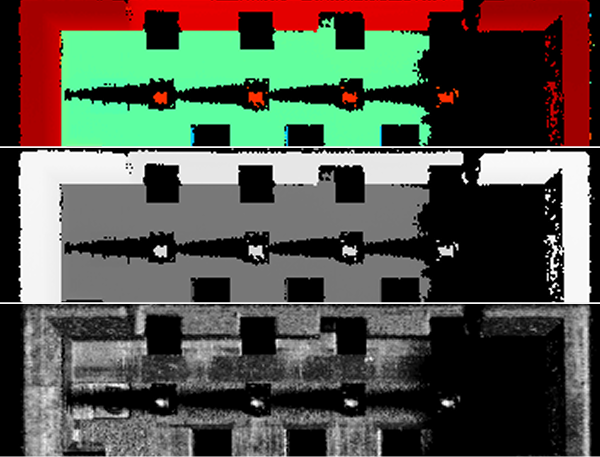

image display
If the display window of the production interface is set to show the intensity image in version 2.0.0, it will default to show the Depth map (pseudo-colored) after the software is upgraded to version 2.1.0 or later. For the display window to continue showing the intensity image, you need to manually reset the setting.

Associated judgment result

Click the Select button to select a measurement item to associate. The judgment result for the associated measurement item is the judgment result of the image. The judgment result will be displayed in the upper-left corner of the window, with green indicating OK and red indicating NG.

Overlay Settings

Feature Overlay Settings

Used to overlay features, including points, lines, and circles, on the image. In the Features tab, after enabling Show feature overlays, you can add and set features.

Click the + Add a feature button to add a feature. Up to 5 features can be added. To reduce an added feature, click the delete icon delete icon.

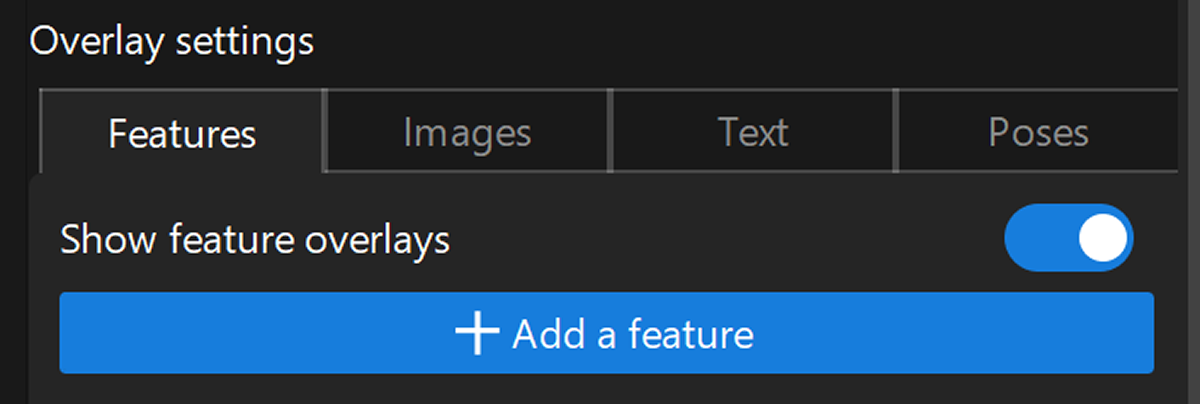

feature overlay interface
Parameter Description

Feature Source

Click the Select button to select the feature source to overlay on the image.

Judgment Settings

After Feature judgment is enabled, you can associate the judgment result with the added feature. This result is derived from the measurement item judgment results of other Steps in the project. Click the Associated judgment result Select button and select the measurement item to associate.

The Judgment results will be displayed in different colors of the features. Configure OK color and NG color according to the actual requirement.

Feature Style

Set the feature size and color.

When Feature Judgment is not enabled, the features will be displayed in one color; when Feature Judgment is enabled, the feature color will be displayed according to the judgment result of the associated measurement item.

Image Overlay Settings

Used to overlay images in contour or mask mode on the background image. In the Images tab, after enabling Show image overlays, you can add and set images to overlay.

Click the + Add an image button to add an image. Up to 5 image sources can be added.

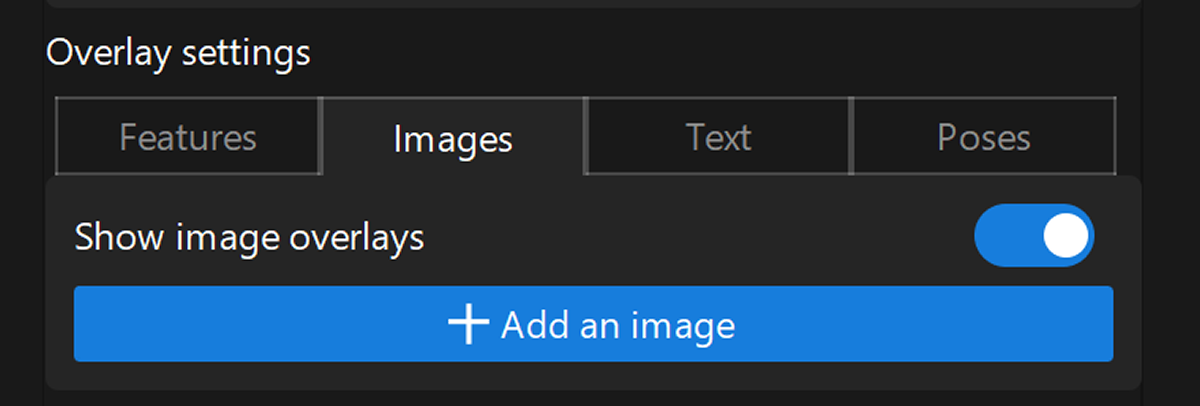

image overlay interface
Parameter Description

Image Source

Click the Select button to select the image to overlay.

Judgment Settings

After Image judgment is enabled, you can associate the judgment result with the added image. This result is derived from the measurement item judgment results of other Steps in the project. Click the Associated judgment result Select button and select the measurement item to associate.
The result will be displayed in different colors. Configure OK color and NG color according to the actual requirement.

Image Style

Sets the display mode for the overlay image.

  • Contour: Only the contour of the overlay image is displayed. You can customize the contour thickness and color.

  • Mask: The overlay image is displayed as a mask. You can customize the mask’s transparency and color.

Text Overlay Settings

Used to overlay texts on the image. In the Text tab, after enabling Show text overlay, you can set the text to overlay. Up to 5 measured values can be inserted into the text.

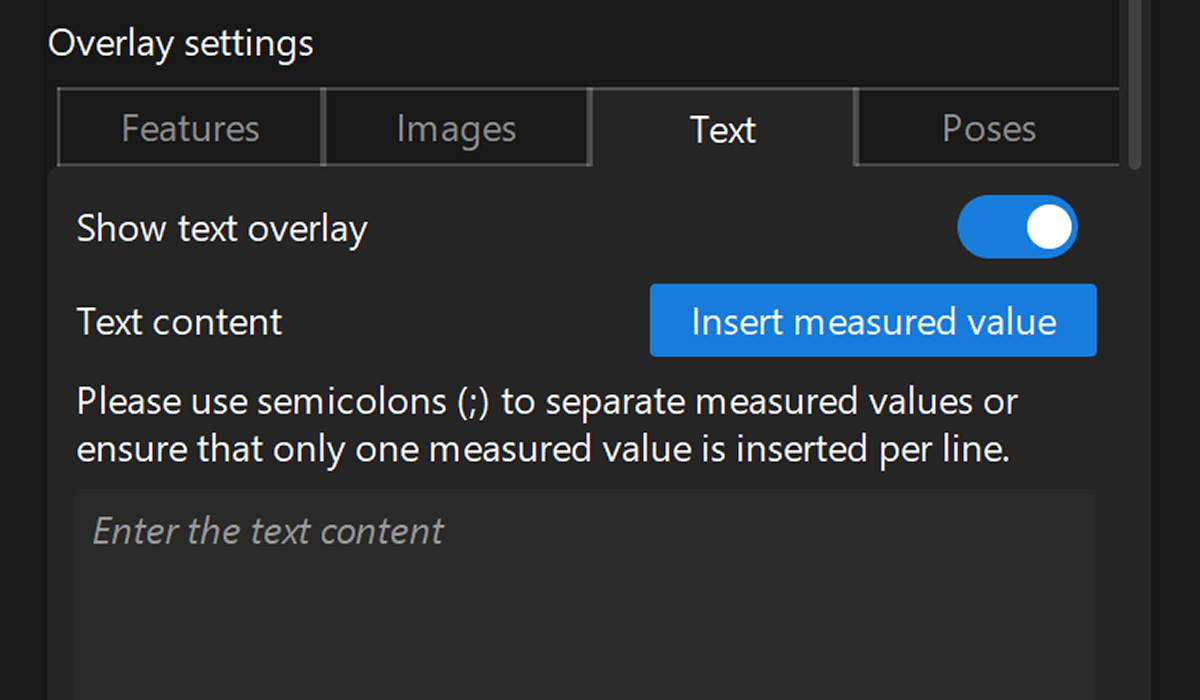

text overlay interface
Parameter Description

Text Content

The overlay text consists of two parts: custom text + inserted measured value.

After entering the custom text, click the Insert measured value button and select the measured value to insert. The text content is then set.

Ensure that only one measured value is inserted per line. To insert multiple measurement values in one line, separate them with a semicolon (;). This prevents text color display issues and ensures readability.

Text Position

Set the relevant parameters to define the position of the overlay text.

  • Fixed position: By default, the text starts from the top-left corner of the image.

  • Associated with measured coordinates: After selecting this option, click the Select button next to Measured coordinates and then select the measured coordinate to associate. Once associated, the text will overlay the image based on the selected measured coordinates.

If the text position is not as expected, adjust the following parameters:

  • X-direction translation: The amount of translation of the text in the horizontal direction. A positive value indicates that the text moves to the right, and a negative value indicates that the text moves to the left.

  • Y-direction translation: The amount of translation of the text in the vertical direction. A positive value indicates that the text moves downward, and a negative value indicates that the text moves upward.

Text Style

According to the actual requirements, customize the Text size and Text color.

Pose Overlay Settings

Used to overlay pose data on the background image. In the Pose tab, after enabling Show pose overlay, you can set the pose overlay.

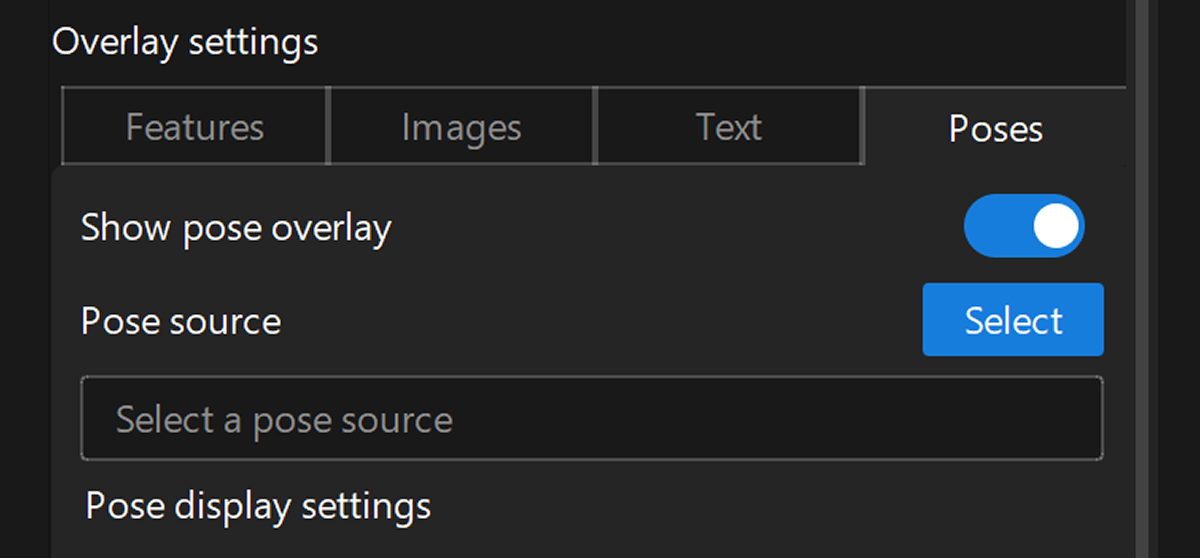

pose overlay interface
Parameter Description

Pose Source

Click the Select button and select the pose data to be added (the data type is Pose).

Pose Display Settings

Set the relevant parameters to define the display style of the overlaid pose. You can customize the display of point size, color, axis, number, label, etc.
