Mech-Eye SDK 2.5.1 Release Notes

You are currently viewing the documentation for the latest version (2.5.1). To access a different version, click the "Switch version" button located in the upper-right corner of the page.

■ If you are not sure which version of the product you are currently using, please feel free to contact Mech-Mind Technical Support.

This topic introduces the new features, improvements, and resolved issues of Mech-Eye SDK 2.5.1.

Mech-Eye Viewer

LSR S-GL, LSR L-GL, and LSR XL-GL: Improved the Performance of Reflective Fringe Coding Mode + More Complete Processing Mode

After the firmware of LSR S-GL, LSR L-GL, and LSR XL-GL is upgraded to 2.5.1, when acquiring data with the Reflective fringe coding mode + More complete processing mode, point cloud data loss due to the height differences on the target object surface has been reduced:

2.5.0 2.5.1

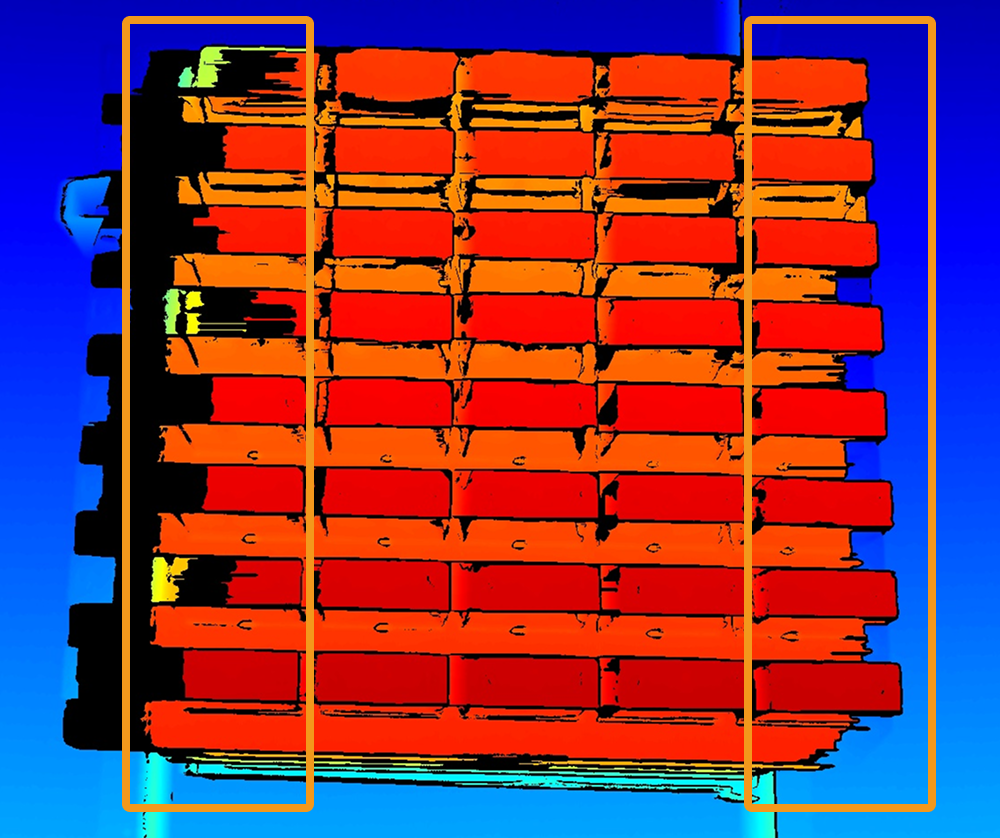

reflective 251 lsr 1

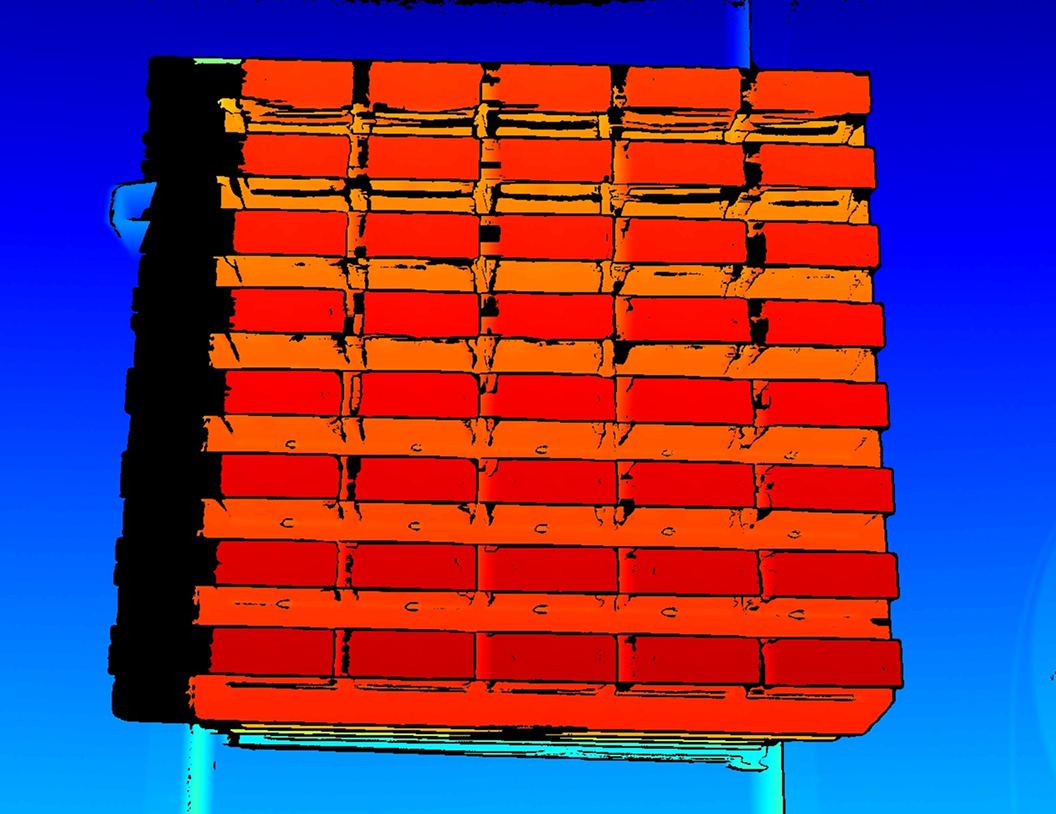

reflective 251 lsr 2

PRO S-GL and PRO M-GL: Improved the Performance of Reflective Fringe Coding Mode + More Complete Processing Mode

After the firmware of PRO S-GL and PRO M-GL is upgraded to 2.5.1, when acquiring data with the Reflective fringe coding mode + More complete processing mode, point cloud data loss due to the height differences on the target object surface has been reduced.

Mech-Eye API

LSR S-GL, LSR L-GL, and LSR XL-GL: Improved the Performance of Reflective Fringe Coding Mode + MoreComplete Processing Mode

After the firmware of LSR S-GL, LSR L-GL, and LSR XL-GL is upgraded to 2.5.1, when acquiring data with the LaserFringeCodingMode (Fringe Coding Mode) parameter set to Reflective and LaserProcessingMode (Processing Mode) parameter set to MoreComplete, point cloud data loss due to the height differences on the target object surface has been reduced:

2.5.0 2.5.1

reflective 251 lsr 1

reflective 251 lsr 2

PRO S-GL and PRO M-GL: Improved the Performance of Reflective Fringe Coding Mode + MoreComplete Processing Mode

After the firmware of PRO S-GL and PRO M-GL is upgraded to 2.5.1, when acquiring data with the ProjectorFringeCodingMode (Fringe Coding Mode) parameter set to Reflective and ProjectorProcessingMode (Processing Mode) parameter set to MoreComplete, point cloud data loss due to the height differences on the target object surface has been reduced.

GenICam Interface

LSR S-GL, LSR L-GL, and LSR XL-GL: Improved the Performance of Reflective Fringe Coding Mode + MoreComplete Processing Mode

After the firmware of LSR S-GL, LSR L-GL, and LSR XL-GL is upgraded to 2.5.1, when acquiring data with the LaserFringeCodingMode (Fringe Coding Mode) parameter set to Reflective and LaserProcessingMode (Processing Mode) parameter set to MoreComplete, point cloud data loss due to the height differences on the target object surface has been reduced:

2.5.0 2.5.1

reflective 251 lsr 1

reflective 251 lsr 2

PRO S-GL and PRO M-GL: Improved the Performance of Reflective Fringe Coding Mode + MoreComplete Processing Mode

After the firmware of PRO S-GL and PRO M-GL is upgraded to 2.5.1, when acquiring data with the ProjectorFringeCodingMode (Fringe Coding Mode) parameter set to Reflective and ProjectorProcessingMode (Processing Mode) parameter set to MoreComplete, point cloud data loss due to the height differences on the target object surface has been reduced.
