3D Camera Lens Protector

You are currently viewing the documentation for the latest version (2.5.1). To access a different version, click the "Switch version" button located in the upper-right corner of the page.

■ If you are not sure which version of the product you are currently using, please feel free to contact Mech-Mind Technical Support.

Package Contents

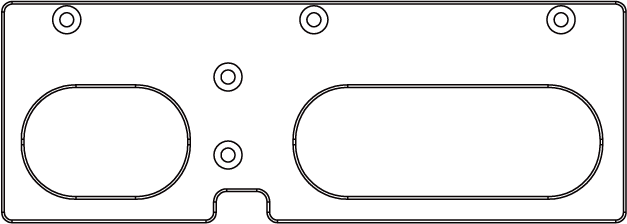

Lens Protector (3D-LP-N04-A)

M2.5 × 5 countersunk screws (Qty: 5)

lens protector
screw m2.5 5
Before using, please make sure that the package is intact, the lens protector is not damaged, and no accessories are missing. Please contact Mech-Mind if any items are damaged or missing.

Mounting

Before mounting, please prepare a Phillips screwdriver.

As shown below, place the lens protector in front of the camera and the five screws in the holes, and then tighten the screws with the screwdriver. The recommended tightening torque is 0.3 to 0.4 N·m.

lens protector mounting
The lens protector and the 3D camera protective shell (3D-PS-N04-A) can be mounted onto the camera at the same time.

Dimensions (Including Camera)

dimension lens protector

Specifications

Model

3D-LP-N04-A

Can be used with

NANO ULTRA-GL
