View Saved Global Variables in Mech-MSR

You are currently viewing the documentation for the latest version (2.1.1). To access a different version, click the "Switch version" button located in the upper-right corner of the page.

■ If you are not sure which version of the product you are currently using, please feel free to contact Mech-Mind Technical Support.

Go to menu bar and select Toolkit  Global Variable Viewer to view all the global variables saved in the current solution.

Interface Description

The fields in this tool are described as follows:

Field Description

Variable name

The unique identifier of the global variable.

Mode

Defines how data is stored in and retrieved from the variable.

  • Single result: The variable always holds only the most recent result. New data overwrites the old one. The data in the variable can be retrieved multiple times.

  • Queue: The variable can store up to 10 results in the order they are saved. Each retrieval returns the earliest result and removes it from the variable (first in, first out).

Data type

The type of data stored in the variable.

The currently supported types mainly include Surface (surface data), Profile, SurfaceCloud (point cloud), Image, Number, Shape3D (3D geometric features), Bool, String, and Pose. See Data Type for details.

Source project

The name of the project to which the Global Variable Step that created the variable belongs.

Last updated

The last time the global variable was updated.

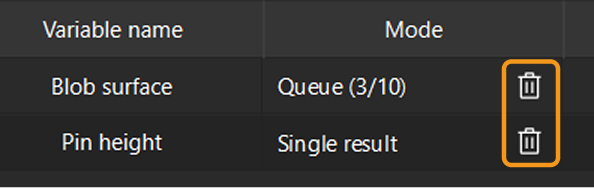

In the Mode column, click the delete icon delete icon to clear the data stored in the corresponding variable.

clear data in variable
