Configure Mitsubishi MELSEC Communication in Mech-MSR

You are currently viewing the documentation for the latest version (2.1.1). To access a different version, click the "Switch version" button located in the upper-right corner of the page.

■ If you are not sure which version of the product you are currently using, please feel free to contact Mech-Mind Technical Support.

This section introduces how to configure the Mitsubishi MELSEC communication.

Configuration Process

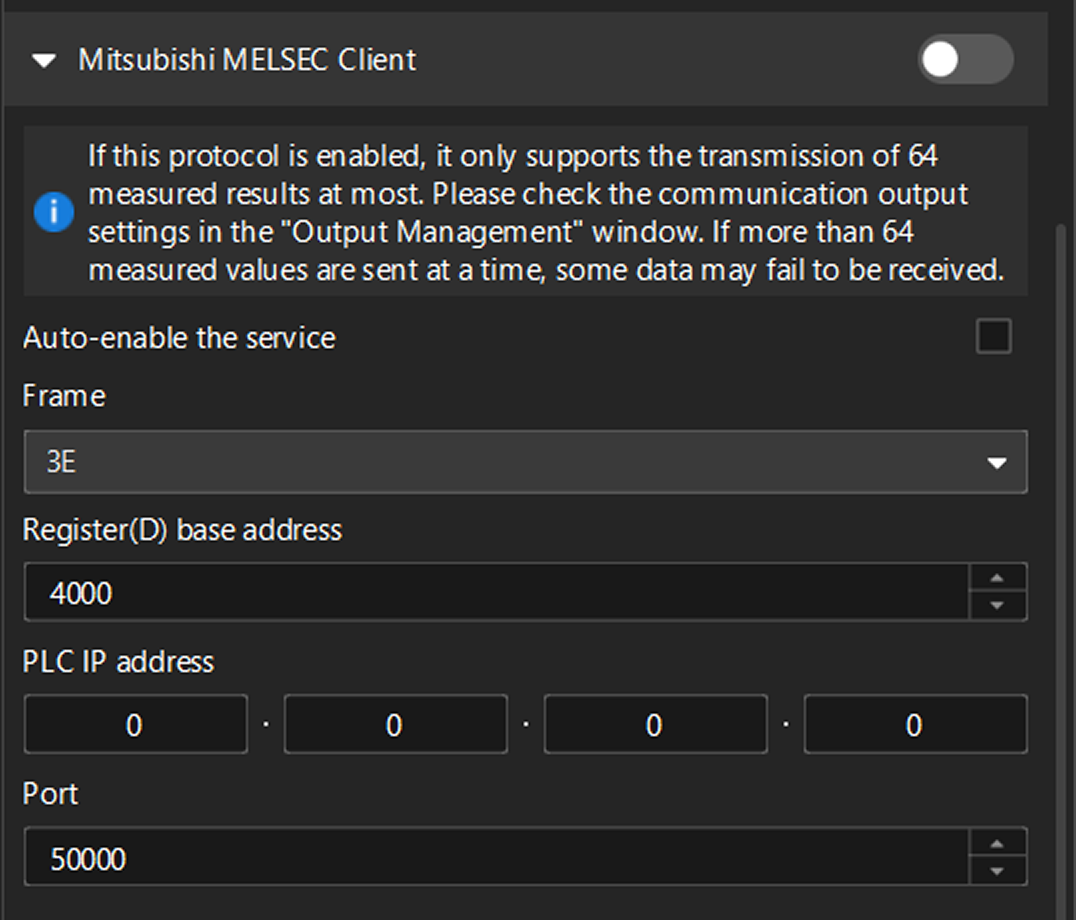

mc config

Follow the steps below to configure Mitsubishi MELSEC communication:

  1. On the toolbar of the software, click the Communication Configuration button.

  2. Click the ▶ icon next to Mitsubishi MELSEC Client to expand the settings.

  3. In the Frame drop-down list, select 3E for most cases.

  4. Set the register (D) base address.

    The struct types used for communication occupy a total of 152 D registers.
  5. Fill in the PLC IP address and port number of the PLC. The port number should be set to 50000 or larger.

    The host IP address and the PLC IP address must be on the same subnet.

  6. Enable the communication.

To automatically enable the Mitsubishi MELSEC Client communication service when opening the solution next time, you can select the Auto-enable the service check box.

The Auto-enable the service check box cannot be selected simultaneously for both the Mitsubishi MELSEC Client and Adapter protocols.

General Parameter

Execution timeout period for return command

The maximum timeout period from the external device sending the return command to the external device receiving a valid response or triggering a timeout error. The default value is 10 seconds.
