Ethernet Cable

You are currently viewing the documentation for a pre-release version (2.7.0). To access documentation for other versions, click the "Switch Version" button located in the upper-right corner of the page.

■ If you're unsure about the version of the product you are using, please contact Mech-Mind Technical Support for assistance.

M12-A Ethernet Cable

Physical Specifications

Model

Straight connector

Right-angle connector

CBL-ETH-5M
CBL-ETH-10M
CBL-ETH-15M
CBL-ETH-20M
CBL-ETH-30M

CBL-ETH-5M-LU
CBL-ETH-10M-LU
CBL-ETH-15M-LU
CBL-ETH-20M-LU
CBL-ETH-30M-LU

Color

Black

Jacket material

PVC

Cable standard

Cat 5e

Outer diameter

6.5 ± 0.2 mm

Connectors

M12-A, straight or right-angle, 8 pins
RJ45

Minimum static bend radius

26 mm

Minimum dynamic bend radius

52 mm

Safety

RoHS: compliant
Flame retardant rating of plastic materials: V-0
Flame retardant rating of cable body: VW-1

Mobile tow chain test

Bend cycles: ＞ 10 million

Torsion test

Torsion cycles: ≥ 3 million

Can be used with

DEEP-GL

Log S
Log M

LSR S-GL

LSR L-GL

LSR XL-GL

NANO-GL

NANO ULTRA-GL

PRO XS-GL

PRO S-GL

PRO M-GL

UHP-140-GL

ULTRA M-GL

Dimensions

Unit: mm

ethernet cable angled
ethernet cable straight
Model L Tolerance

CBL-ETH-5M / CBL-ETH-5M-LU

5 m

± 40 mm

CBL-ETH-10M / CBL-ETH-10M-LU

10 m

± 80 mm

CBL-ETH-15M / CBL-ETH-15M-LU

15 m

± 100 mm

CBL-ETH-20M / CBL-ETH-20M-LU

20 m

± 150 mm

CBL-ETH-30M / CBL-ETH-30M-LU

30 m

± 200 mm

Connectors

ethernet cable m12

ethernet cable rj45

M12-A connector

RJ45 connector
Function M12-A connector pin RJ45 connector pin

MD0_N

6

2

MD0_P

4

1

MD1_N

8

6

MD1_P

5

3

MD2_N

2

5

MD2_P

3

4

MD3_N

7

8

MD3_P

1

7

M12-X Ethernet Cable

Physical Specifications

Model

Straight connector

Right-angle connector

CBL-ETH-X-5M
CBL-ETH-X-10M
CBL-ETH-X-15M
CBL-ETH-X-20M
CBL-ETH-X-30M

CBL-ETH-X-5M-LU
CBL-ETH-X-10M-LU
CBL-ETH-X-15M-LU
CBL-ETH-X-20M-LU
CBL-ETH-X-30M-LU

Color

Green

Jacket material

PUR

Cable standard

Cat 6A

Outer diameter

7.3 ± 0.3 mm

Connectors

M12-X, straight or right-angle, 8 pins
RJ45

Minimum static bend radius

58.4 mm

Minimum dynamic bend radius

58.4 mm

Safety

RoHS: compliant
Flame retardant rating of plastic materials: V-0
Flame retardant rating of cable body: VW-1

Mobile tow chain test

Bend cycles: ＞ 10 million

Torsion test

Bend cycles: ＞ 5 million

Can be used with

Range XL-GL

Dimensions

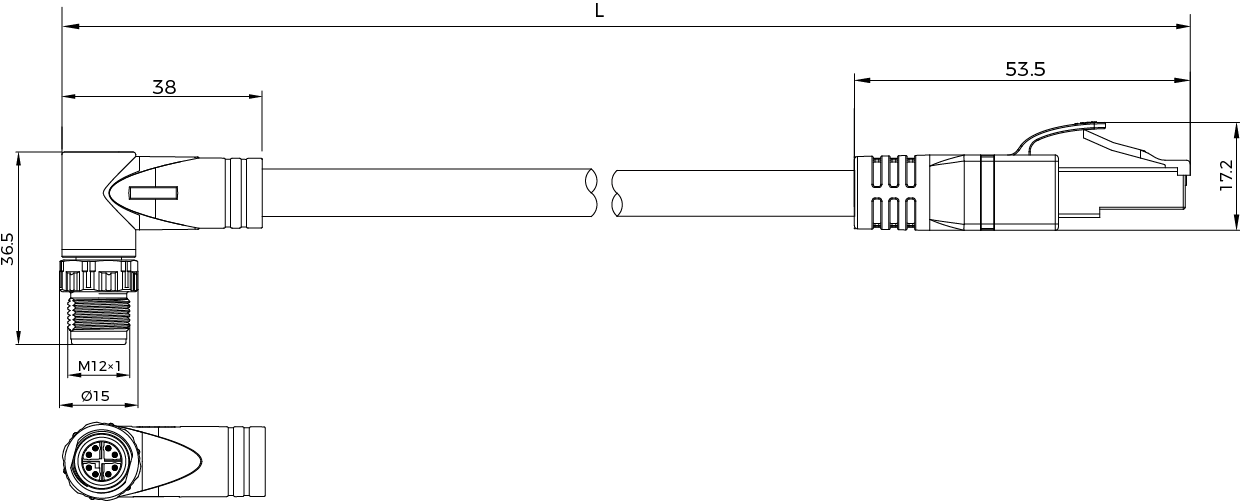

ethernet cable x angled

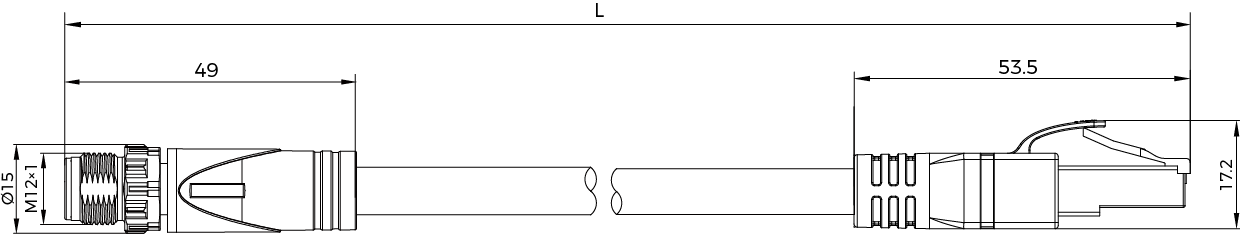

ethernet cable x straight
Model L Tolerance

CBL-ETH-X-5M / CBL-ETH-X-5M-LU

5 m

± 100 mm

CBL-ETH-X-10M / CBL-ETH-X-10M-LU

10 m

± 100 mm

CBL-ETH-X-15M / CBL-ETH-X-15M-LU

15 m

± 100 mm

CBL-ETH-X-20M / CBL-ETH-X-20M-LU

20 m

± 100 mm

CBL-ETH-X-30M / CBL-ETH-X-30M-LU

30 m

± 100 mm

Connectors

ethernet cable x m12

ethernet cable x rj45

M12-X connector

RJ45 connector
Function M12-X connector RJ45 connector

MD0_P

1

1

MD0_N

2

2

MD1_P

3

3

MD1_N

4

6

MD3_P

5

7

MD3_N

6

8

MD2_N

7

5

MD2_P

8

4
