Installation Guide

You are currently viewing the documentation for the latest version (3.0.0). To access a different version, click the "Switch version" button located in the upper-right corner of the page.

■ If you are not sure which version of the product you are currently using, please feel free to contact Mech-Mind Technical Support.

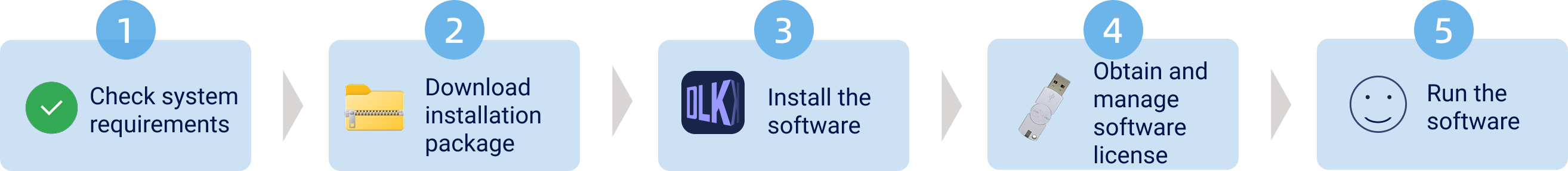

General Workflow

Preparation

Select Authorized Software License Version

Mech-DLK SDK is mainly used to deploy and run inference on deep learning models exported by Mech-DLK. To use Mech-DLK SDK for model inference, you need to obtain the corresponding software license. Before installation, it is recommended to understand the authorization type and select the appropriate authorization version according to the algorithm modules in use.

License Release Notes

The following authorizations are required for inference in Mech-DLK SDK:

  • Pro-Run or Pro-Train: supports inference of model packages exported from modules other than Picking Anything V2 and Object-Bin Segmentation (including single model packages and multiple model packages)

    Version Supported Mech-DLK Functions

    Pro-Run

    Labeling + validation

    Pro-Train

    Labeling + training + validation

  • Single module type license (inference code): supports inference of model packages exported from specific modules. For details, refer to the table below.

Comparison Table of Single-Module Type License Codes

If you need to purchase only the inference authorization for a specific module, refer to the following authorization code:

Module Type Inference Code

Classification

3301

Object Detection

3302

Fast Positioning

3303

Instance Segmentation

3304

Defect Segmentation

3305

Unsupervised Segmentation

3306

Text Detection

3307

Text Recognition

3308

System Requirements

It is recommended that the device where model inference using Mech-DLK SDK is performed should meet the following requirements.

Operating system

Windows 10 (recommended) or Windows 11

CPU

Intel® Core™ i7-6700 or above

Memory

8GB or above

Graphics card

GeForce GTX 1660 or above

Graphics card driver

Version 526.98 or above

Download Mech-DLK SDK Installation Package

You can download the Mech-DLK SDK software installation package from Mech-Mind Download Center or contact Mech-Mind pre-sales or support engineers to get the installation package.

Install the Software

Verify the Integrity of Installation Package

Since the software installation package may be corrupted during transmission or downloading, you need to verify the integrity of the software installation package. The integrity of the installation package can be verified with the CRC-32 value, which is provided on the download page.

Install and use the 7-Zip software to calculate the CRC-32 value.

To verify the integrity of the software installation package, follow these steps:

  1. Copy the installation package to a specified directory on the IPC or PC, such as D:\.

  2. Unzip the installation package. After decompression, the following items will appear: the software installation file (Mech-DLK SDK Installer 3.0.0.exe) and the content folder.

    Do not move the software installation package and the content folder after decompression.

  3. Open 7-Zip and use the address bar to navigate to the directory where the software installation package is located.

  4. After selecting the software installation package, select File  CRC  CRC-32 in the menu bar to calculate the CRC-32 value.

  5. Check the calculated CRC32 value against the one on the download page. The two values should be identical.

  6. Repeat Steps 3–5 for the decompressed software installation file and the content folder.

    If the calculated values do not match those provided on the download page, download the installation package again.

Install the Software

To install Mech-DLK SDK, follow these steps:

  1. Double-click the executable software installation file and open Mech-DLK SDK Setup Wizard. The Welcome window will be displayed.

  2. In the Welcome window, browse the software information and click Next.

  3. In the License Agreement window, read the license agreement carefully, check the I accept the terms and conditions in the license agreement checkbox, and then click Next.

  4. In the Select Product window, select the product to install (Mech-DLK SDK 3.0.0), and then click Next.

  5. In the Set Path window, change the installation path as required, such as D:/project, and then click the Next button.

  6. In the Confirm window, confirm that the installation product is correct and then click the Install button.

  7. In the Install window, wait for the installation to complete.

  8. After the software is installed, in the Finish window, click the Finish button.

When you first open the software, if your running device displays a security alert, add the software to the firewall whitelist.

Obtain Software Licenses

Please contact Mech-Mind pre-sales to obtain the software license.

Activate the Software License

After software installation, activate the software license to launch and use Mech-DLK SDK for inference. You can read the software license section to learn how to manage your license.

Try turning your device off and on if the software still cannot be launched, or read the Troubleshoot Common Installation Issues section to get help. If the issue persists, please contact Mech-Mind Technical Support.

Repair the Software

If Mech-DLK SDK fails to work due to an exception, you can use the repair function to reinstall the software.

To repair the software, follow these steps:

  1. Double-click the software installation file (.exe file) and open Mech-DLK SDK Setup Wizard. The Maintain window will be displayed.

  2. In the Maintain window, click Repair.

  3. Wait until the repair operation is completed.

Modify Installed Components

To modify installed components after installation, follow these steps:

  1. Double-click the executable software installation file (.exe file) and open Mech-DLK SDK Setup Wizard. The Maintain window will be displayed.

  2. In the Maintain window, click Modify.

  3. In the Select Product window, select the products or components to install, or clear the products or components to uninstall.

  4. Complete remaining installation operations.

Uninstall the Software

If you do not need to use Mech-DLK SDK, you can uninstall it by using any of the following ways:

  • Uninstall the software by using the Setup Wizard (recommended)

  • Uninstall the software by using Windows Control Panel

Uninstall the Software by Using the Setup Wizard

To uninstall the software by using the Setup Wizard, follow these steps:

  1. Double-click the software installation file (.exe file) and open Mech-DLK SDK Setup Wizard. The Maintain window will be displayed.

  2. In the Maintain window, click the Uninstall button.

  3. In the Uninstall window, select Do not keep user configuration files.

  4. Wait until the uninstall operation is completed.

Uninstall the Software by Using Windows Control Panel

To uninstall the software by using the Windows Control Panel, follow these steps:

  1. Open the Control Panel on your device.

  2. Select Program  Uninstall or change a program.

  3. Right-click the software to uninstall, and then click Uninstall.

  4. Wait until the uninstall operation is completed.

Troubleshoot Common Installation Issues

Problem 1: Failed to Start the Setup Wizard

Symptom:

After a double click on the installation file, the setup wizard could not be started properly or crashed.

Possible Cause:

There is not enough space available on the system drive.

Troubleshooting Procedure:

Check whether the available space on the system drive is larger than the size of the installation package.

  • If the available space on the system drive is smaller than the size of the installation package, free up the space, and then reinstall. If the issue still exists, contact Mech-Mind Technical Support.

  • If there is enough space on the system drive, contact Mech-Mind Technical Support.

Problem 2: Installation Failed

Symptom:

An error message saying “Installation failed.” appeared during the installation.

Possible Cause:

  • Corrupted installation package or missing files.

  • The current user does not have administrator access.

  • Another Wizard is performing the installation or the Windows system is being upgraded.

  • Other reasons.

Troubleshooting Procedure:

  1. Obtain a new installation package and check its integrity, and then try the installation again.

    • If the issue is resolved, the troubleshooting is completed.

    • Otherwise, proceed to Step 2.

  2. Right-click the installation package and select “Run as administrator” to reinstall.

    • If the issue is resolved, the troubleshooting is completed.

    • Otherwise, proceed to Step 3.

  3. Try the installation again after the other Wizard finishes installation or after the Windows system upgrade completes.

    • If the issue is resolved, the troubleshooting is completed.

    • Otherwise, proceed to Step 4.

  4. Restart your computer and try the installation again.

    • If the issue is resolved, the troubleshooting is completed.

    • If the issue still exists, click the “installation log” link in the Finish window to collect installation logs and send them to Mech-Mind Technical Support.
